Morris Products

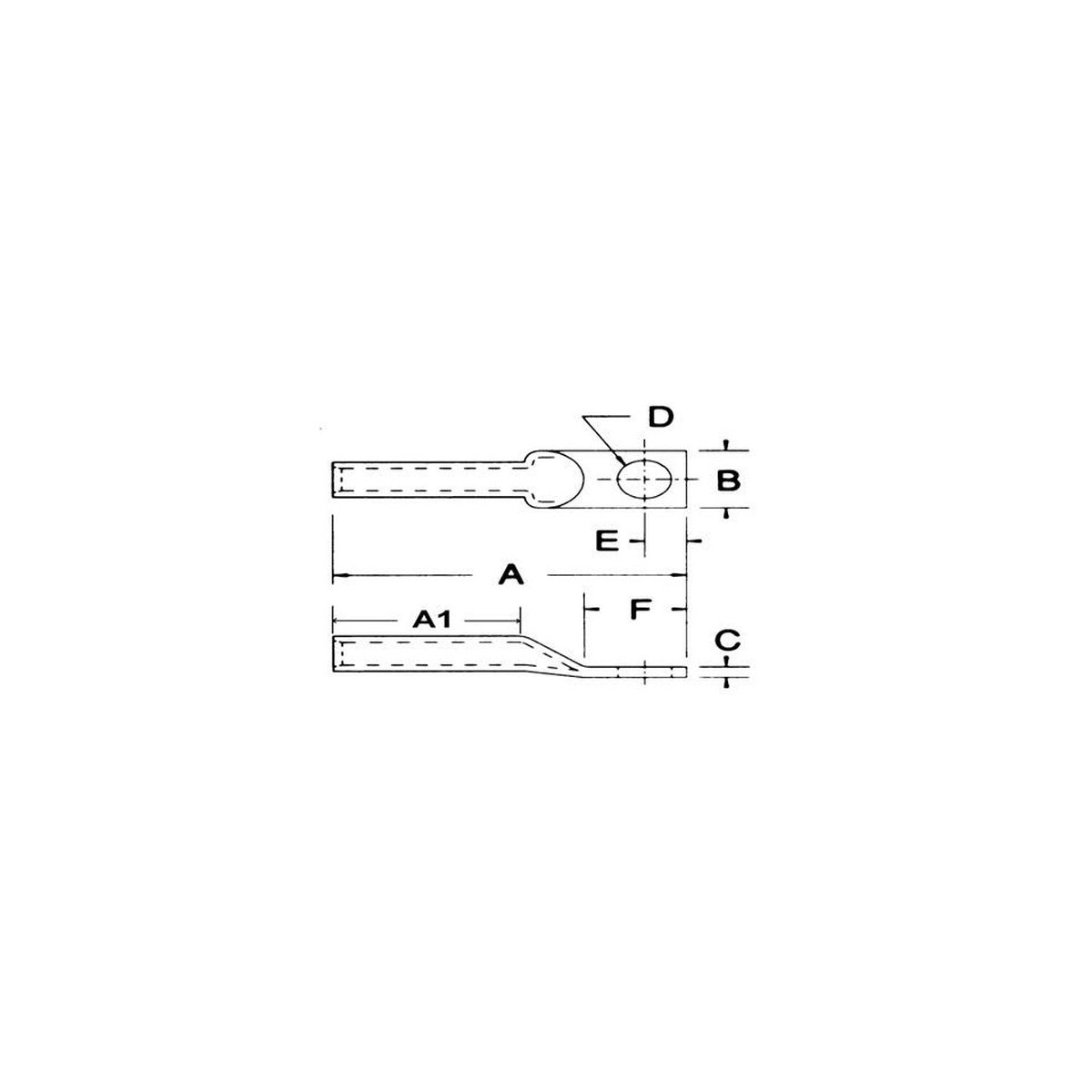

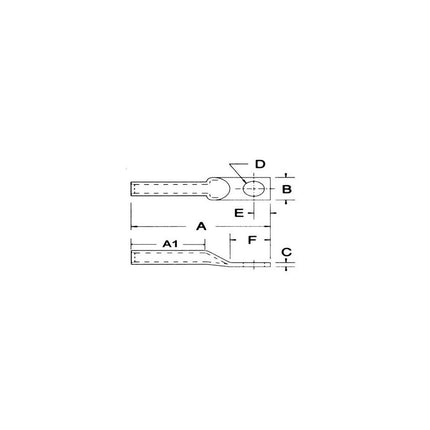

Copper Long Barrel 1 Hole Compression Lugs 6 Awg - #8 Stud
SKU: #280371
Part: #94852
UPC: 601986948524
Morris Products
Copper Long Barrel 1 Hole Compression Lugs 6 Awg - #8 Stud
SKU: #280371
Part: #94852
UPC: 601986948524
Description
Copper Long Barrel 1 Hole Compression Lugs 6 Awg - Electrical Cable Termination
This Copper Long Barrel 1 Hole Compression Lug is designed for fast, reliable electrical cable terminations. Manufactured from high conductivity seamless copper tubing with electro-tin plating, it ensures strong electrical conductivity and corrosion resistance. Suitable for wire sizes #8 stranded through 750 MCM, this lug is ideal for electrical distributors and switchgear suppliers requiring durable and efficient wire and cable connectors.
Specifications
- Material: High Conductivity Copper
- Wire Size: #8 Stranded thru 750 MCM
- Stud Configuration: 1 Hole
- Temperature Rating: 90° C
- Voltage Rating: 35 KV
- Material Treatment: Electro-Tin Plating
- Inside Diameter: 0.204 inches
- Outside Diameter: 0.297 inches
- Color Coding: Blue
- Product Weight: 0.0240 lbs
Features
- Manufactured from high strength, high conductivity seamless copper tubing
- Electro-tin plated for enhanced corrosion resistance
- Color coded and marked with die size and crimp marks for easy identification
- Includes peep hole for inspection of cable insertion
