Morris Products
Copper Long Barrel 1 Hole Compression Lugs 6 Awg - 5/16 Stud
SKU: #279029
Part: #94215
UPC: 601986942157
Morris Products
Copper Long Barrel 1 Hole Compression Lugs 6 Awg - 5/16 Stud
SKU: #279029
Part: #94215
UPC: 601986942157
Description

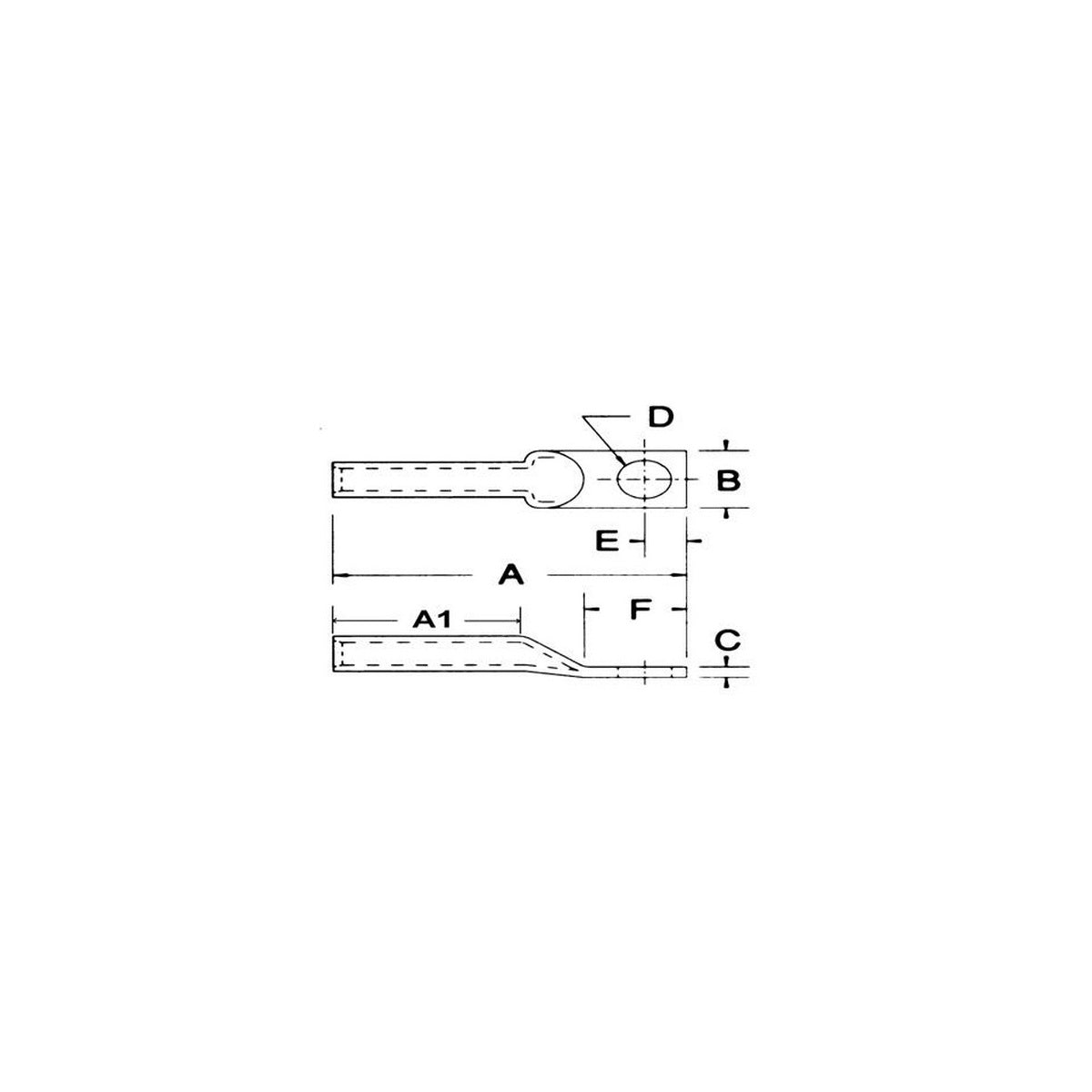

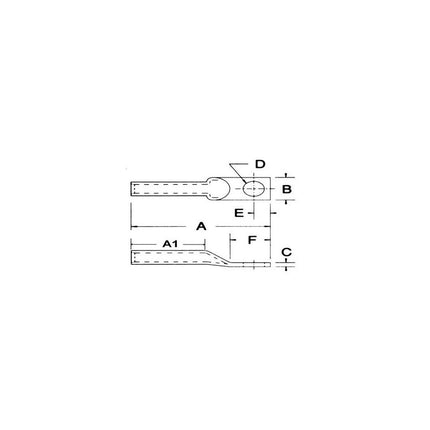

Copper Long Barrel 1 Hole Compression Lugs 6 Awg - 5/16 Stud
This copper long barrel 1 hole compression lug is designed for fast, reliable electrical cable terminations. Manufactured by Morris Products, it is made from high conductivity seamless copper tubing with electro-tin plating, ensuring excellent electrical performance and corrosion resistance. Suitable for use by electrical distributors and switchgear suppliers, this lug is ideal for wire and cable connections in lighting solutions and various electrical installations.
Specifications
- Material: High Conductivity Copper
- Color Coding: Blue
- Inside Diameter: 0.204 inches
- Outside Diameter: 0.297 inches
- Stud Size: 5/16 inch
- Temperature Rating: 90°C
- Voltage Rating: 35 KV
- Stud Configuration: 1 Hole
- Product Weight: 0.5250 lbs
- UL Certification: UL486A
- cUL Certified: Yes
- RoHS Compliant: Yes
Features
- Manufactured from high strength, high conductivity seamless copper tubing
- Electro-tin plated for enhanced corrosion resistance
- Color coded and marked with die size and crimp marks for easy identification
- Peep hole for inspection of proper cable insertion
