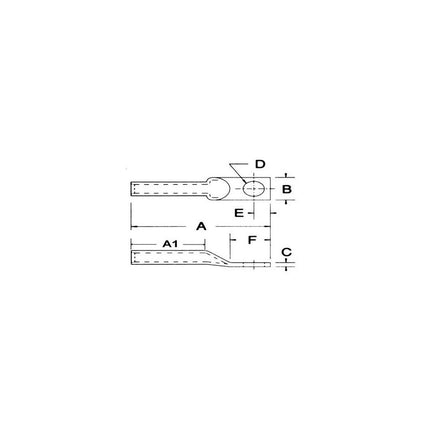

Copper Long Barrel 1 Hole Compression Lugs 6 Awg - 1/4 Stud

This copper long barrel 1 hole compression lug is designed for fast, reliable electrical cable terminations. Manufactured from high conductivity seamless copper tubing with electro-tin plating, it ensures excellent electrical performance and corrosion resistance. Suitable for use by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers, this lug accommodates 6 AWG wire size and a 1/4 inch stud size, providing a secure and durable connection.

Specifications

• Material: High Conductivity Copper
• Color Coding: Blue
• Inside Diameter: 0.204 inches
• Outside Diameter: 0.297 inches
• Stud Configuration: 1 Hole
• Stud Size: 1/4 inch
• Temperature Rating: 90¬∞C
• Voltage Rating: 35 kV
• Certifications: UL486A, cUL, RoHS Compliant
• Product Weight: 0.0320 lbs

Features

• Manufactured from high strength, high conductivity seamless copper tubing
• Electro-tin plated for enhanced corrosion resistance
• Color coded and marked with die size and crimp marks for easy identification
• Includes peep hole for inspection of proper cable insertion

Downloads & Links

• Spec Sheet
