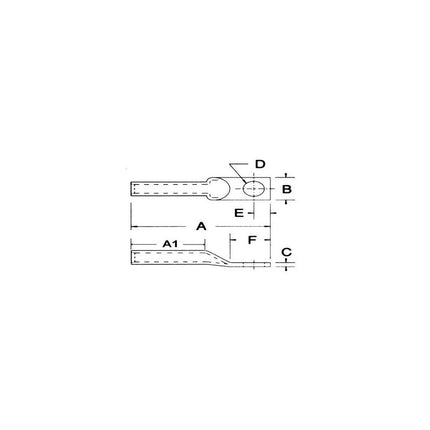

Copper Long Barrel 1 Hole Compression Lugs 2/0 - 1/2 Stud for Electrical Cable Terminations

This Copper Long Barrel 1 Hole Compression Lug is designed for fast and reliable electrical cable terminations. Manufactured from high conductivity seamless copper tubing with electro-tin plating, it provides excellent electrical performance and durability. Suitable for use by electrical distributors and switchgear suppliers, this compression lug supports wire sizes from #8 stranded through 750 MCM and is ideal for precise wire and cable connections in lighting solutions and electrical distribution systems.

Specifications

• Material: High Conductivity Copper
• Color Coding: Black
• Inside Diameter: 0.441 inches
• Outside Diameter: 0.563 inches
• Stud Configuration: 1 Hole
• Stud Size: 1/2 inch
• Temperature Rating: 90¬∞C
• Voltage Rating: 35 KV
• Product Weight: 1.8750 lbs
• UL Certification: UL486A
• cUL: Yes
• RoHS Compliant: Yes

Features

• Manufactured from high strength, high conductivity seamless copper tubing
• Electro-tin plated for corrosion resistance
• Color coded and marked with die size and crimp marks for easy installation
• Peep hole for inspection of proper wire insertion

Downloads & Links

• Spec Sheet
