Morris Products

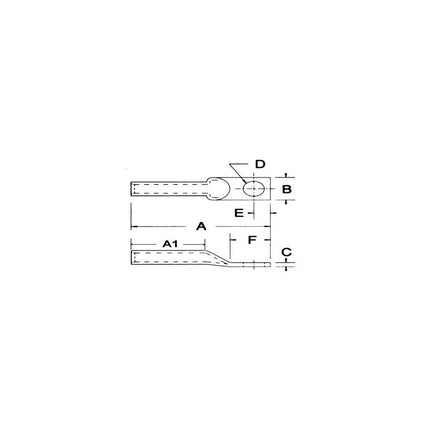

Copper Long Barrel 1 Hole Compression Lugs 1 Awg - 5/16 Stud
SKU: #279071
Part: #94226
UPC: 601986942263
Morris Products
Copper Long Barrel 1 Hole Compression Lugs 1 Awg - 5/16 Stud
SKU: #279071
Part: #94226
UPC: 601986942263
Description
Copper Long Barrel 1 Hole Compression Lugs 1 Awg - 5/16 Stud
This Copper Long Barrel 1 Hole Compression Lug is designed for fast, reliable electrical cable terminations. Manufactured from high conductivity seamless copper tubing with electro-tin plating, it is suitable for use by electrical distributors and switchgear suppliers requiring durable wire and cable connectors. The lug supports wire sizes from #8 stranded through 750 MCM and features a single hole stud configuration compatible with a 5/16 inch stud size.
Specifications
- Material: High Conductivity Seamless Copper Tubing
- Material Treatment: Electro-Tin Plating
- Stud Configuration: 1 Hole
- Wire Size: #8 Stranded thru 750 MCM
- Temperature Rating: 90°C
- Voltage Rating: 35 KV
- Flammability Rating: N/A
- Inside Diameter: 0.360 inches
- Outside Diameter: 0.469 inches
- Product Weight: 0.0760 lbs
- Color: Green
- Manufacturer Part #: 94226
- Manufacturer: Morris Products
Features
- Manufactured from high strength, high conductivity seamless copper tubing
- Electro-tin plated for enhanced corrosion resistance
- Color coded and marked with die size and crimp marks for easy identification
- Includes peep hole for inspection
