Morris Products
Copper Long Barrel 1 Hole Compression Lugs 1/0 - 5/16 Stud
SKU: #279082
Part: #94230
UPC: 601986942300
Morris Products
Copper Long Barrel 1 Hole Compression Lugs 1/0 - 5/16 Stud
SKU: #279082
Part: #94230
UPC: 601986942300
Description

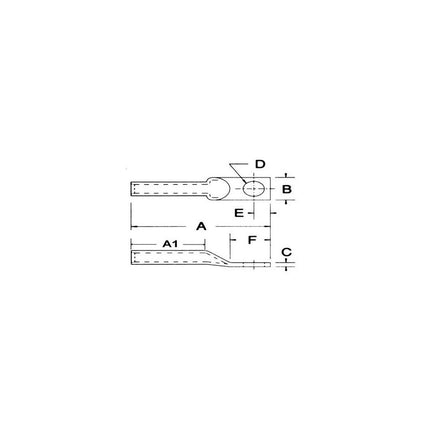

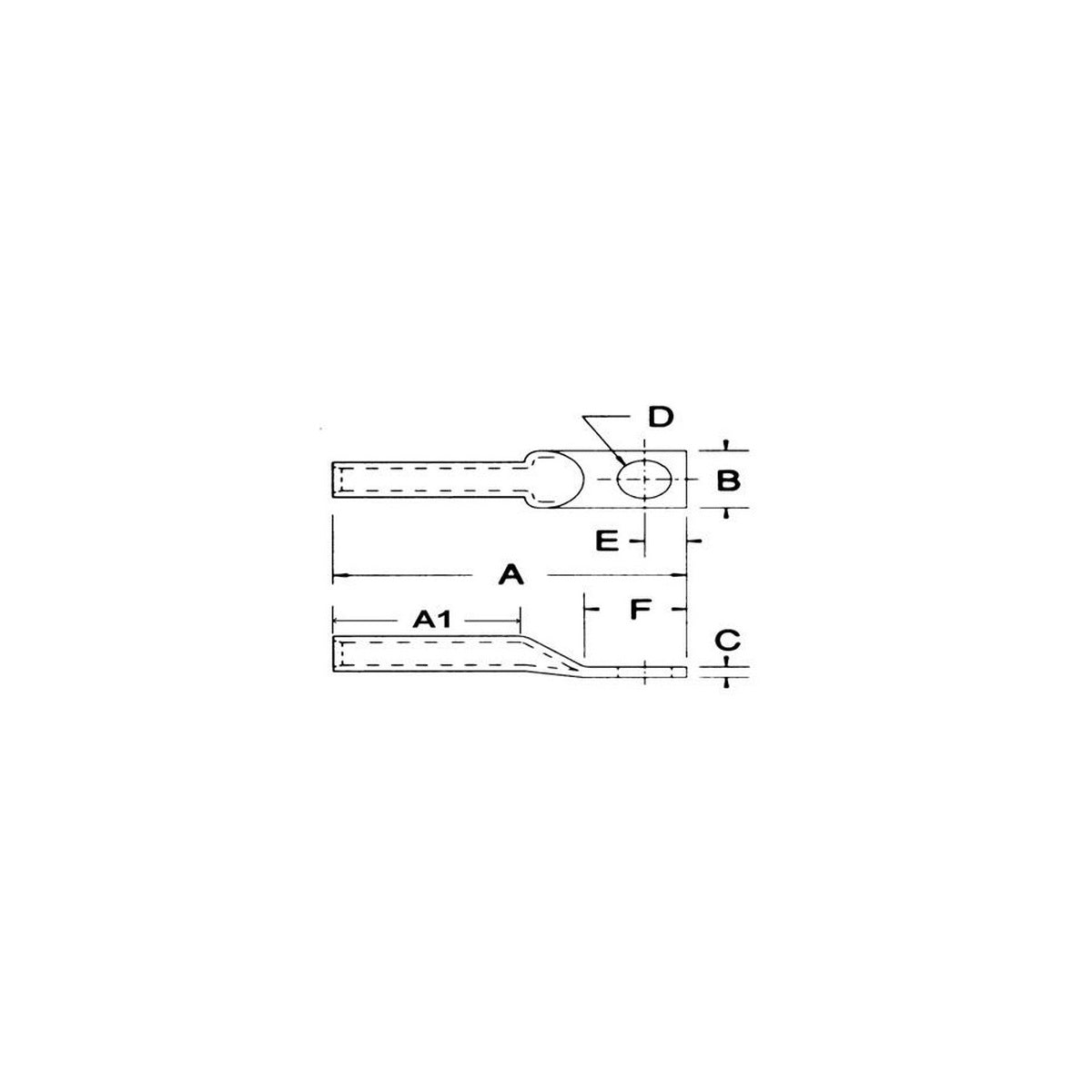

Copper Long Barrel 1 Hole Compression Lugs 1/0 - 5/16 Stud
This copper long barrel 1 hole compression lug is designed for reliable electrical cable terminations, suitable for use by electrical distributors and switchgear suppliers. It provides a durable connection solution for wire and cable applications requiring a 1/0 AWG wire size and a 5/16" stud. Its construction from high conductivity copper ensures efficient electrical performance in lighting solutions and industrial electrical systems.
Specifications
- Material: High Conductivity Copper
- Wire Size: 1/0 Stranded
- Stud Size: 5/16 inch
- Inside Diameter: 0.390 inches
- Outside Diameter: 0.520 inches
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- Color Coding: Pink
- Product Weight: 0.1120 lbs
- Certifications: UL 486A, cUL, RoHS Compliant
Features
- Manufactured from high strength, high conductivity seamless copper tubing
- Electro-tin plated for corrosion resistance
- Color coded and marked with die size and crimp marks for easy identification
- Peep hole for inspection of cable insertion
- Single hole stud configuration for secure mechanical connection
