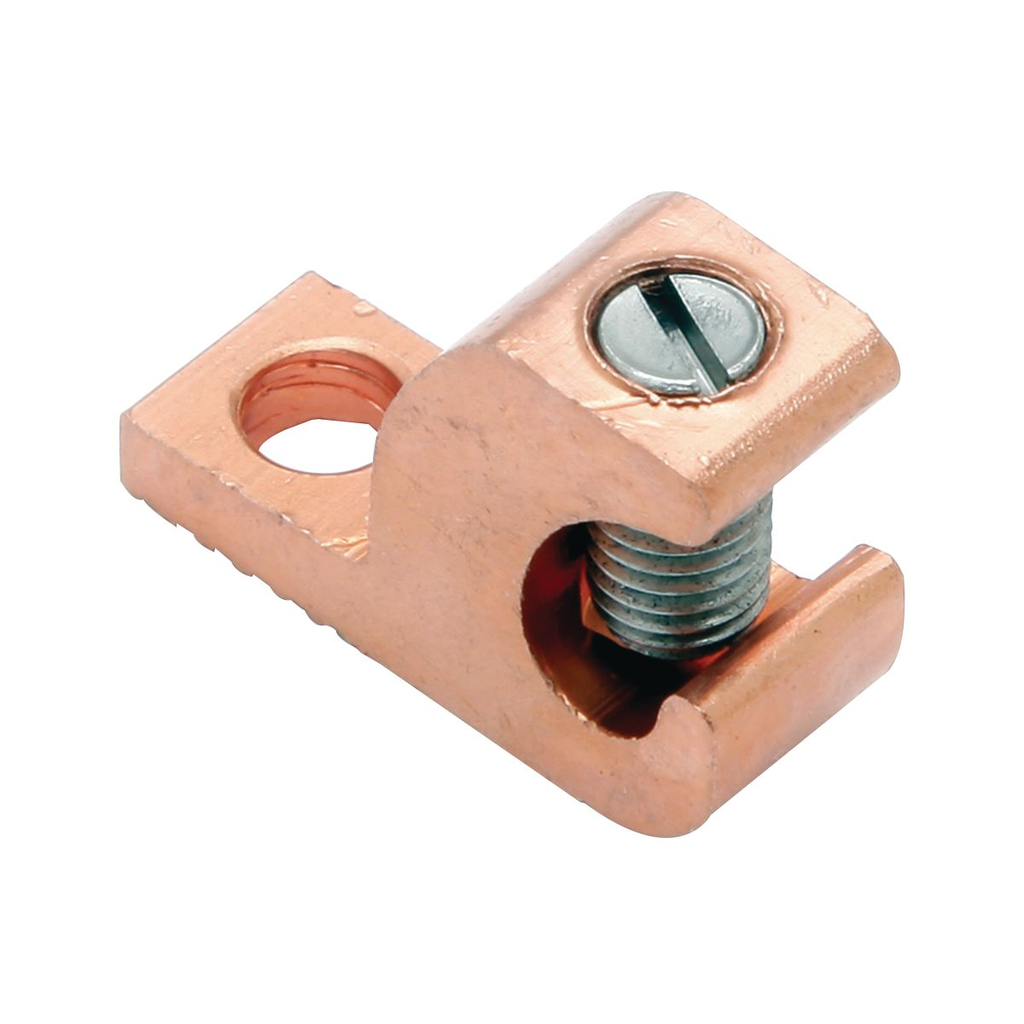

Copper Lay-in Lug, 14-4 AWG, #10 Stud – Grounding Layin Copper Connector

This Copper Lay-in Lug is designed for direct burial applications in concrete or earth, enabling fast lay-in of the conductor without the need for cutting or breaking. It is ideal for electrical distributors and switchgear suppliers requiring reliable grounding solutions and wire and cable connectivity.

Specifications

• Application: For Direct Burial Applications In Concrete Or Earth, For Fast Lay-In Of The Conductor Without The Need For Cutting Or Breaking
• Material: Copper
• Hardware Material: Stainless Steel
• Plating Type: Unplated
• Type: Open-Faced
• Conductor Size Range (Copper Solid and Stranded): 14 AWG - 4 AWG
• Hole Size: 0.22 inches (6 mm)
• Stud Size: 17/64 inch
• Dimensions (Overall Length x Width x Height): 1.13 in x 0.38 in x 0.85 in
• UL Listed: Yes (UL467 Standard)
• Certification - cULus: Yes
• EU RoHS Indicator: Yes
• Country of Origin: India
• Product Weight: 0.0600 lbs

Features

• Rated for direct burial use, suitable for concrete or earth installations
• Facilitates fast lay-in of conductors without cutting or breaking
• Constructed from high-conductivity copper for optimal electrical performance
• Stainless steel hardware ensures durability and corrosion resistance
• Open-faced design for easy installation and maintenance
• Compliant with UL467 grounding standards and RoHS regulations
