Description

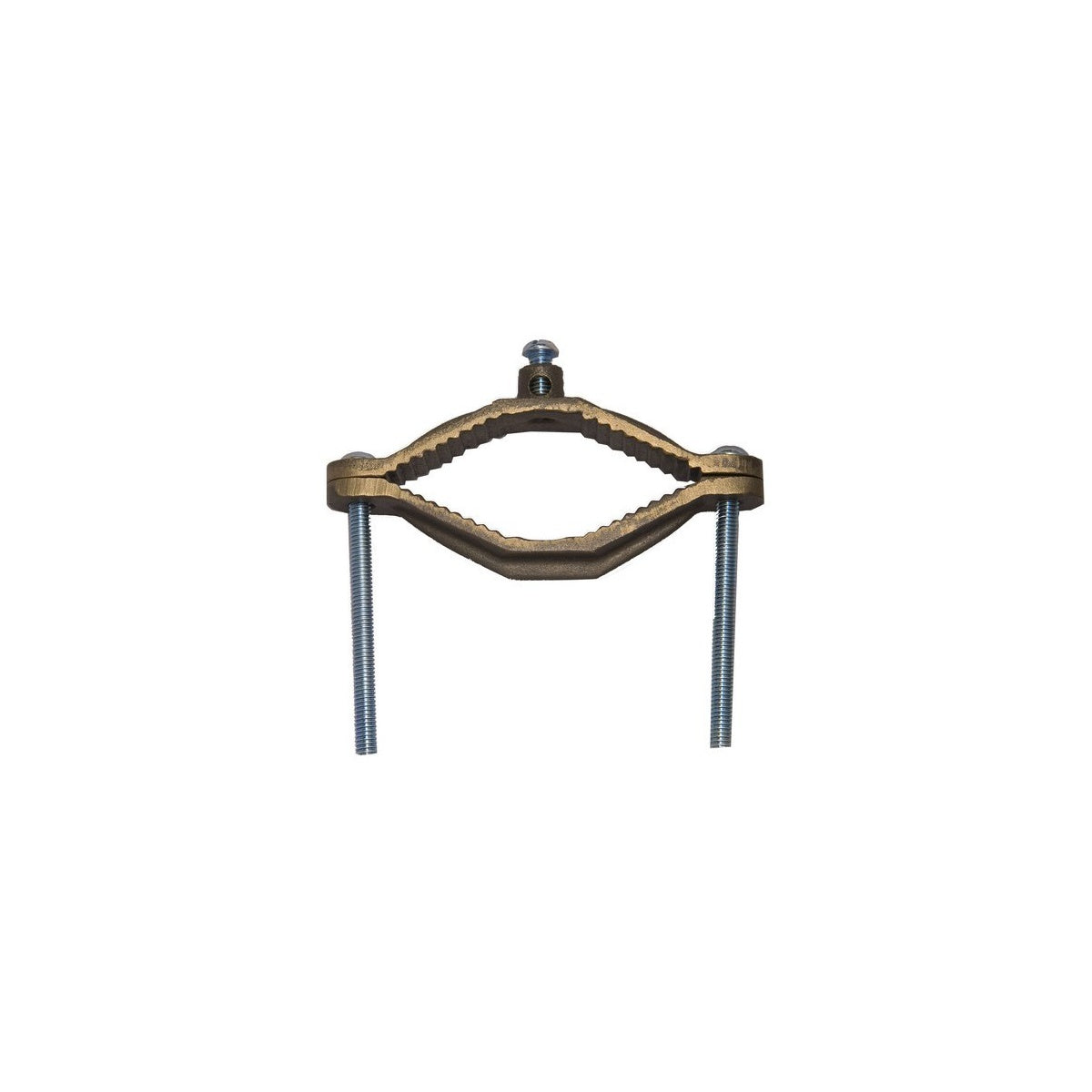

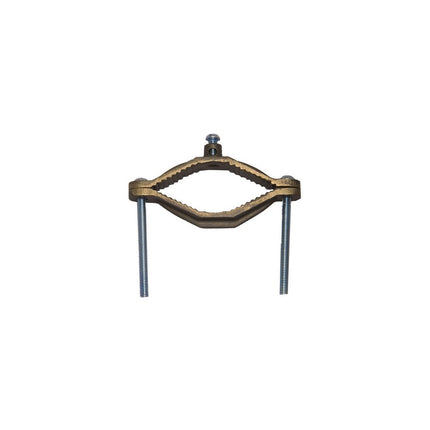

Copper Ground Pipe Clamps - Direct Burial 2-1/2" - 4" | Electrical Grounding Solutions
This Copper Ground Pipe Clamp is designed for secure grounding applications in electrical systems. Manufactured from high conductivity cast copper alloy with stainless steel hardware, it is suitable for direct burial installations and compatible with water pipes, ground rods, and copper tubing. This clamp is ideal for electrical distributors and switchgear suppliers requiring reliable grounding connectors.
Specifications
- Pipe Size: 2-1/2", 3", 3-1/2", 4"
- Material: High Conductivity Cast Copper
- Bolt Type: Stainless Steel
- Screw Thread: 5/16" x 18
- Wire Range: #10 AWG - #2 AWG
- Voltage Rating: 600 V
- Width: 5.95"
- Height: 2.95"
- Product Weight: 0.75 lbs
- Packaging Quantity: 10 per box
- Certifications: UL, cUL, RoHS Compliant
Features
- Manufactured from high strength, high conductivity cast copper alloy
- Stainless steel hardware for corrosion resistance
- Internal serrations improve contact integrity
- Rated for direct burial applications
- Compatible with water pipe, ground rod, and copper tubing grounding
