Morris Products

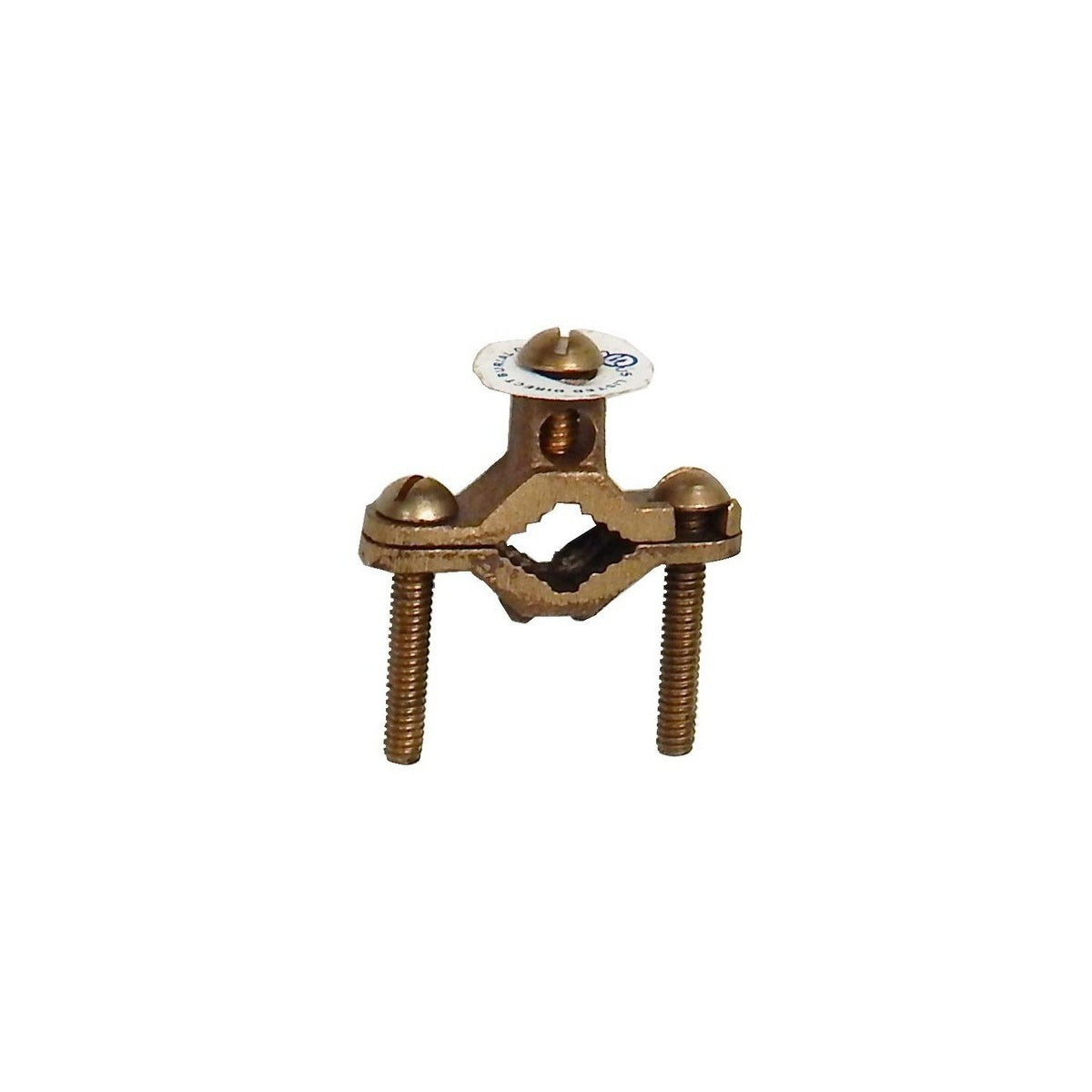

Copper Ground Pipe Clamps - Direct Burial 1/2"-1"
SKU: #276781
Part: #90629
UPC: 601986906296
Morris Products
Copper Ground Pipe Clamps - Direct Burial 1/2"-1"
SKU: #276781
Part: #90629
UPC: 601986906296
Description
Copper Ground Pipe Clamps - Direct Burial 1/2"-1" | Electrical Grounding Solutions
These Copper Ground Pipe Clamps are designed for secure electrical grounding in direct burial applications. Manufactured from high conductivity cast copper alloy with stainless steel hardware, they provide reliable connections for water pipes, ground rods, and copper tubing. Suitable for electrical distributors and switchgear suppliers requiring durable grounding components.
Specifications
- Pipe Size: 1/2", 3/4", 1"
- Material: High Conductivity Cast Copper
- Screw Type: Stainless Steel
- Screw Thread: 1/4" x 20
- Wire Range: #10 AWG - #2 AWG
- Voltage Rating: 600V
- Width: 2.17"
- Height: 1.42"
- UPC: 601986906296
- Manufacturer Part #: 90629
Features
- Manufactured from high strength, high conductivity cast copper alloy
- Stainless steel hardware for corrosion resistance
- Internal serrations improve contact integrity
- Rated for direct burial applications
- Compatible with water pipe, ground rod, and copper tubing grounding systems
- UL, cUL, and RoHS certified
