Morris Products
Copper Ground Pipe Clamps - Direct Burial 1-1/4"-2"
SKU: #276783
Part: #90630
UPC: 601986906302
Morris Products
Copper Ground Pipe Clamps - Direct Burial 1-1/4"-2"
SKU: #276783
Part: #90630
UPC: 601986906302
Description

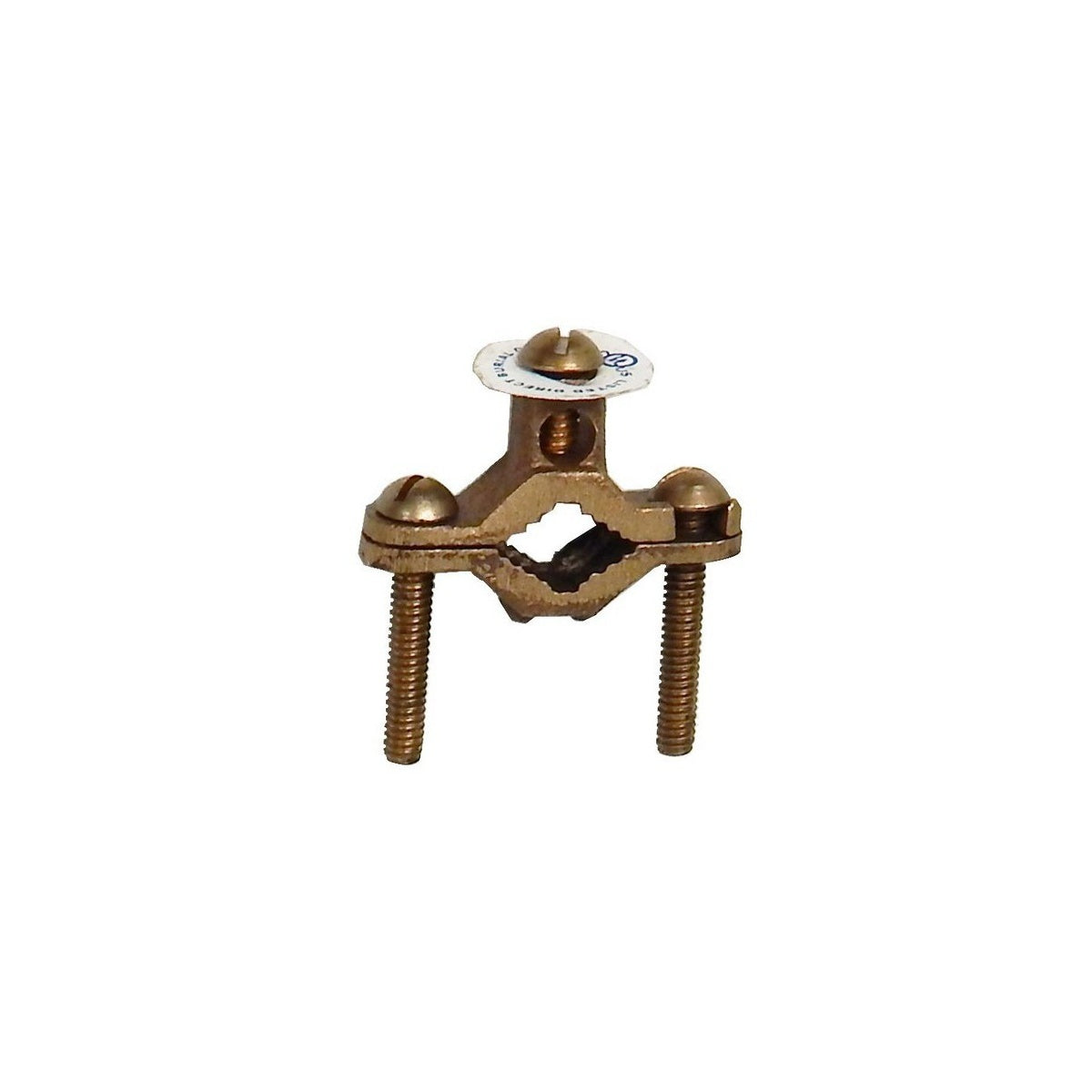

Copper Ground Pipe Clamps - Direct Burial 1-1/4"-2" Electrical Grounding Solutions
The Copper Ground Pipe Clamp by Morris Products is designed for secure electrical grounding in direct burial applications. It is suitable for use with water pipes, ground rods, and copper tubing, making it an essential component for electrical distributors and switchgear suppliers requiring reliable grounding connections. This clamp supports wire ranges from #10 AWG to #2 AWG and is rated for a voltage of 600 volts.
Specifications
- Pipe Size: 1-1/4", 1-1/2", 2"
- Material: High Conductivity Cast Copper
- Screw Type: Stainless Steel
- Screw Thread: 5/16" x 18
- Wire Range: #10 AWG - #2 AWG
- Voltage Rating: 600
- Width: 3.58"
- Height: 1.93"
Features
- Manufactured from high strength, high conductivity cast copper alloy
- Stainless steel hardware for corrosion resistance
- Internal serrations improve contact integrity
- Rated for direct burial applications
- Compatible with water pipe, ground rod, and copper tubing grounding
- UL, cUL, and RoHS certified
