Morris Products

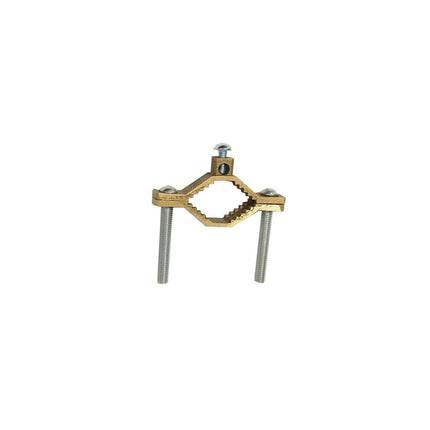

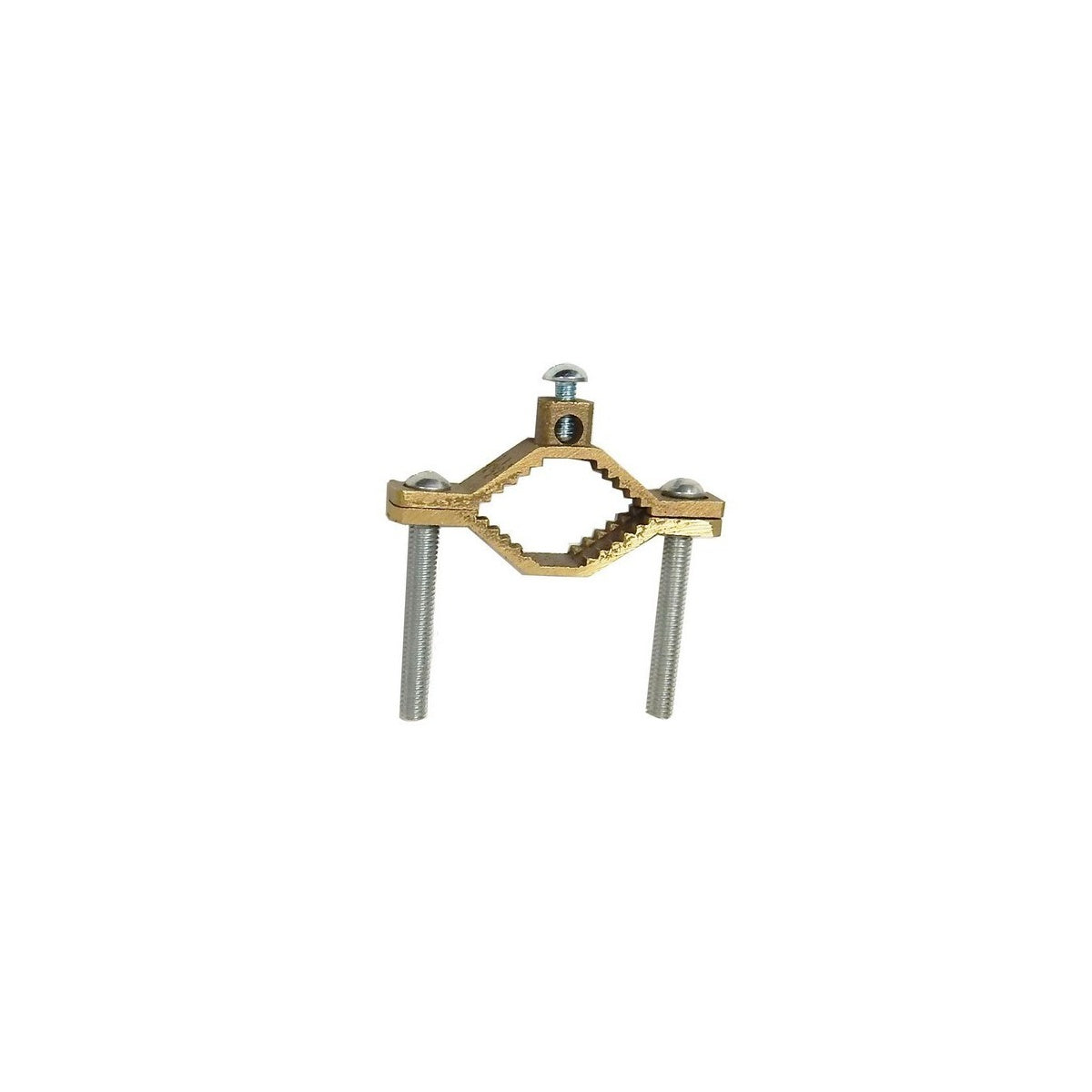

Copper Ground Pipe Clamps 4-1/2"-6"
SKU: #276697
Part: #90599
UPC: 601986905992
Morris Products
Copper Ground Pipe Clamps 4-1/2"-6"
SKU: #276697
Part: #90599
UPC: 601986905992
Description
Copper Ground Pipe Clamps 4-1/2"-6" – High Conductivity Grounding Clamp
The Copper Ground Pipe Clamps 4-1/2"-6" by Morris Products are designed for connecting grounding conductors to water pipes, copper tubing, or ground rods. These clamps are made from a high-strength, high conductivity copper alloy, ensuring reliable grounding performance. The product is suitable for electrical distributors and switchgear suppliers requiring durable and corrosion-resistant grounding solutions.
Specifications
- Material: Copper
- Water Pipe Range: 4-1/2" to 6"
- Wire Range: 2 to 10 AWG
- Screw Thread: 3/8-16
- Dimensions: 8.30" (A) x 4.00" (B)
- Product Weight: 2.25 lbs
- Manufacturer Part #: 90599
Features
- Cast of high strength, high conductivity copper alloy
- Steel set screws zinc plated for corrosion resistance
- Designed to maintain proper contact and alignment for grounding conductors
