Description
Copper Ground Pipe Clamps 1/2" - 1" | Electrical Grounding Solutions

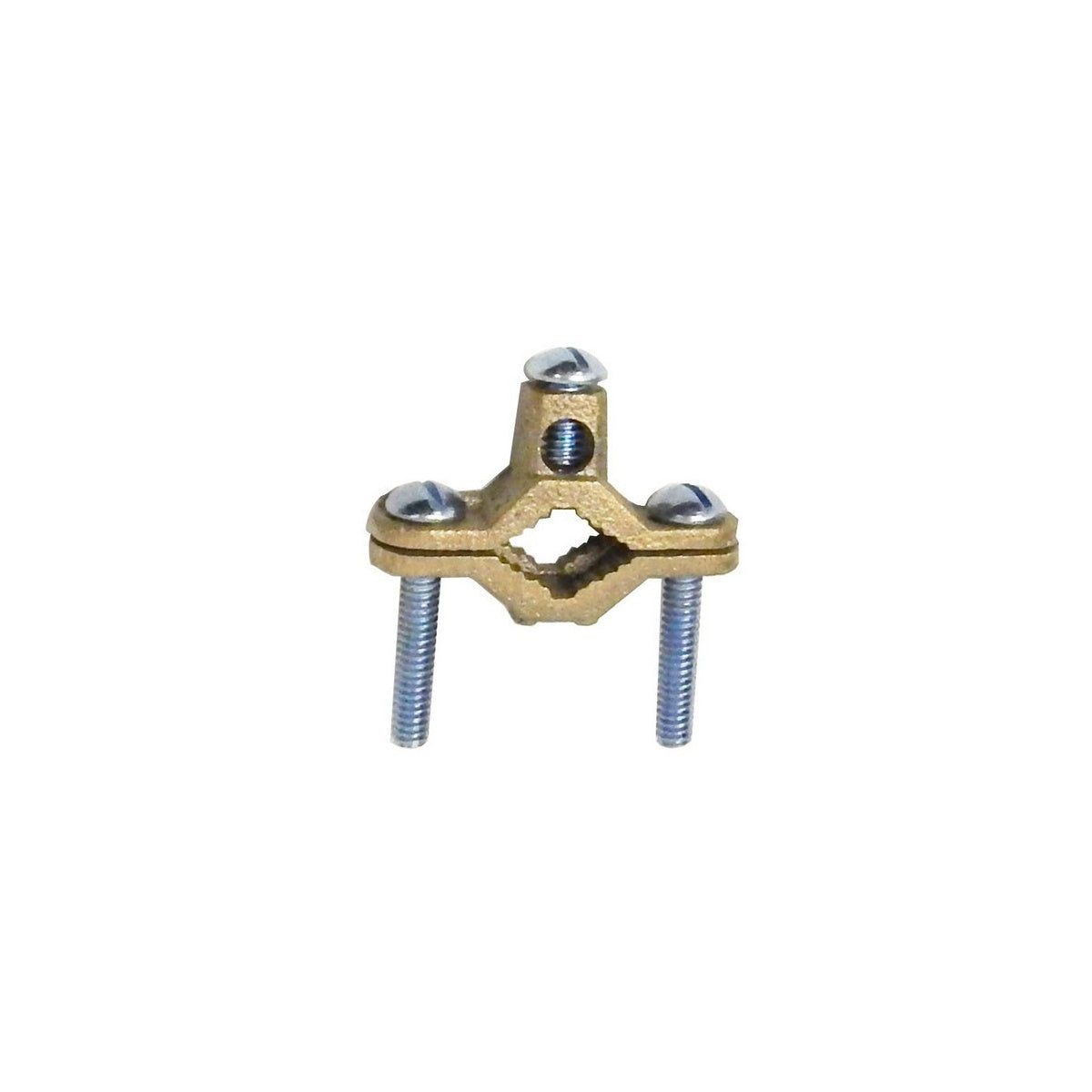

The Copper Ground Pipe Clamp 1/2" - 1" is designed for secure and reliable grounding connections in electrical installations. Manufactured from high conductivity cast copper alloy, this clamp ensures excellent electrical performance for grounding applications involving water pipes, ground rods, and copper tubing. It is suitable for use by electrical distributors and switchgear suppliers requiring durable and effective wire and cable grounding solutions.
Specifications
- Pipe Size: 1/2", 3/4", 1"
- Material: High Conductivity Cast Copper
- Screw Type: Zinc Coated Steel
- Screw Thread: 1/4" x 20
- Wire Range: #10 AWG – #2 AWG
- Voltage Rating: 600 V
- Dimensions: A Dim 2.25", B Dim 1.64"
- UL Certified: Yes
- cUL Certified: Yes
- RoHS Compliant: Yes
Features
- Manufactured from high strength, high conductivity cast copper alloy
- Steel zinc plated set screws for secure fastening
- Internal serrations improve contact integrity for reliable grounding
- Suitable for water pipe, ground rod, and copper tubing applications
- Box quantity: 25 units per package
