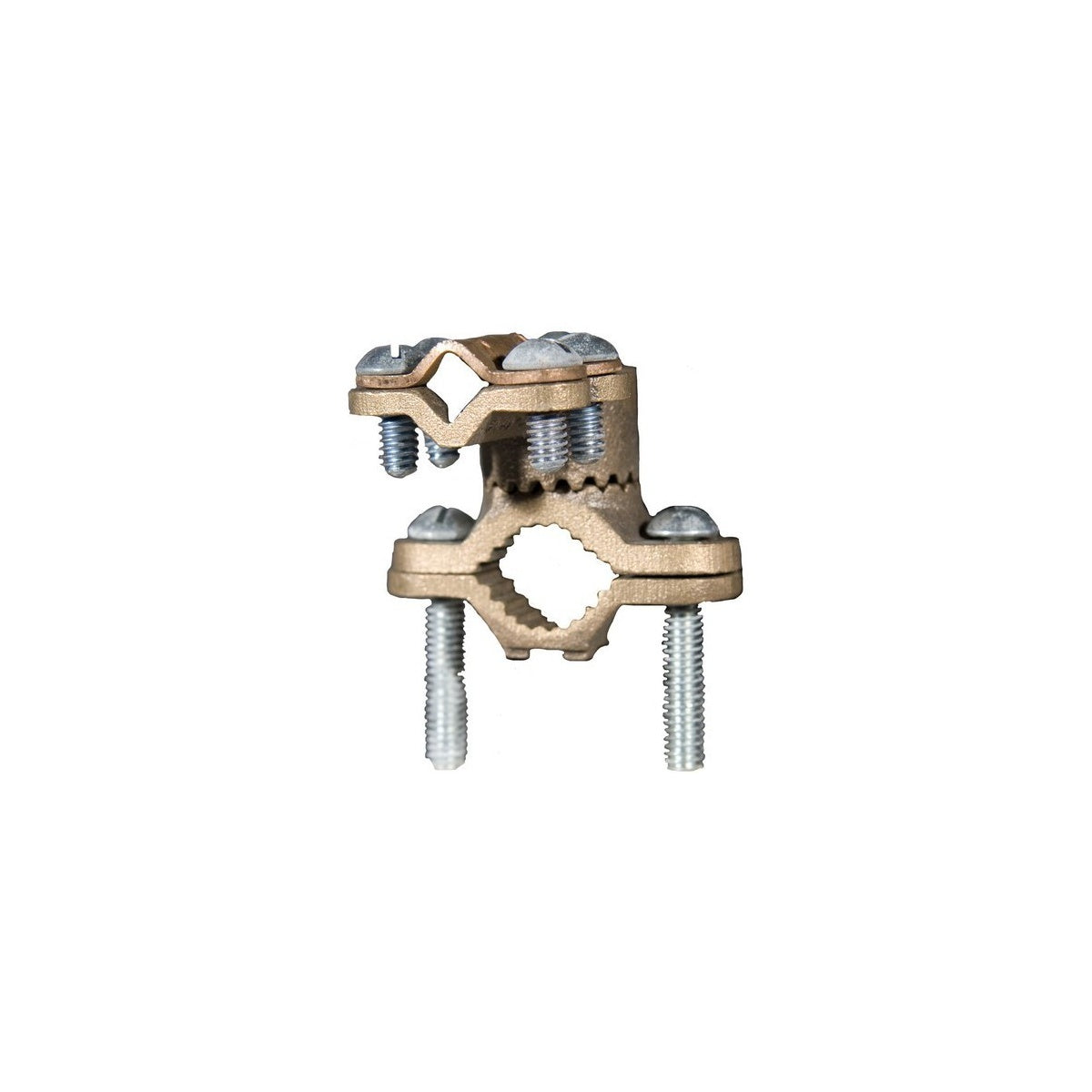

Copper Ground Clamps - Serrated Collar - Cable Adaptor 1-1/4"-2" for Electrical Grounding

This copper ground clamp is designed for secure grounding connections on water pipes, ground rods, and copper tubing, suitable for armored or unarmored wire applications. It features a serrated adaptor to ensure easy alignment and improved contact integrity, making it a reliable component for electrical distributors and switchgear suppliers handling wire and cable grounding solutions.

Specifications

• Pipe Size: 1 1/4" - 2"
• Material: High Conductivity Cast Copper Alloy
• Screw Type: Zinc Coated Steel
• Wire Range: #8 AWG - 4/0
• Width: 3.54"
• Height: 1.40"
• Voltage Rating: 600V
• UL Certified: Yes
• cUL Certified: Yes
• RoHS Compliant: Yes
• Product Weight: 1.0710 lbs

Features

• Manufactured from high strength, high conductivity cast copper alloy for optimal electrical performance
• Steel zinc-plated set screws provide durable and secure fastening
• Internal serrations enhance contact integrity for reliable grounding
• Serrated adaptor compatible with both armored and unarmored cables
• Suitable for water pipe, ground rod, and copper tubing grounding applications

Downloads & Links

• Spec Sheet
