Copper Ground Clamps - Rigid Conduit Hub & Strap 1/2"-1" | Electrical Grounding Solutions

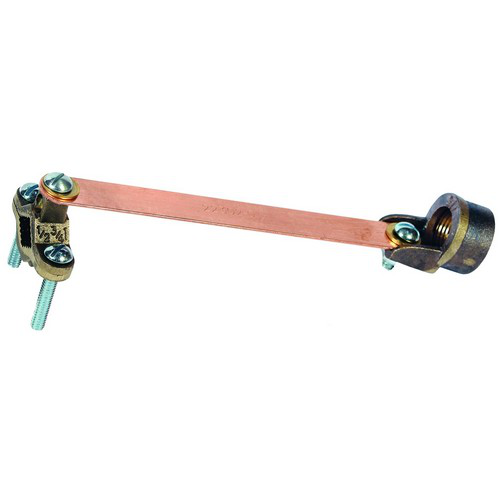

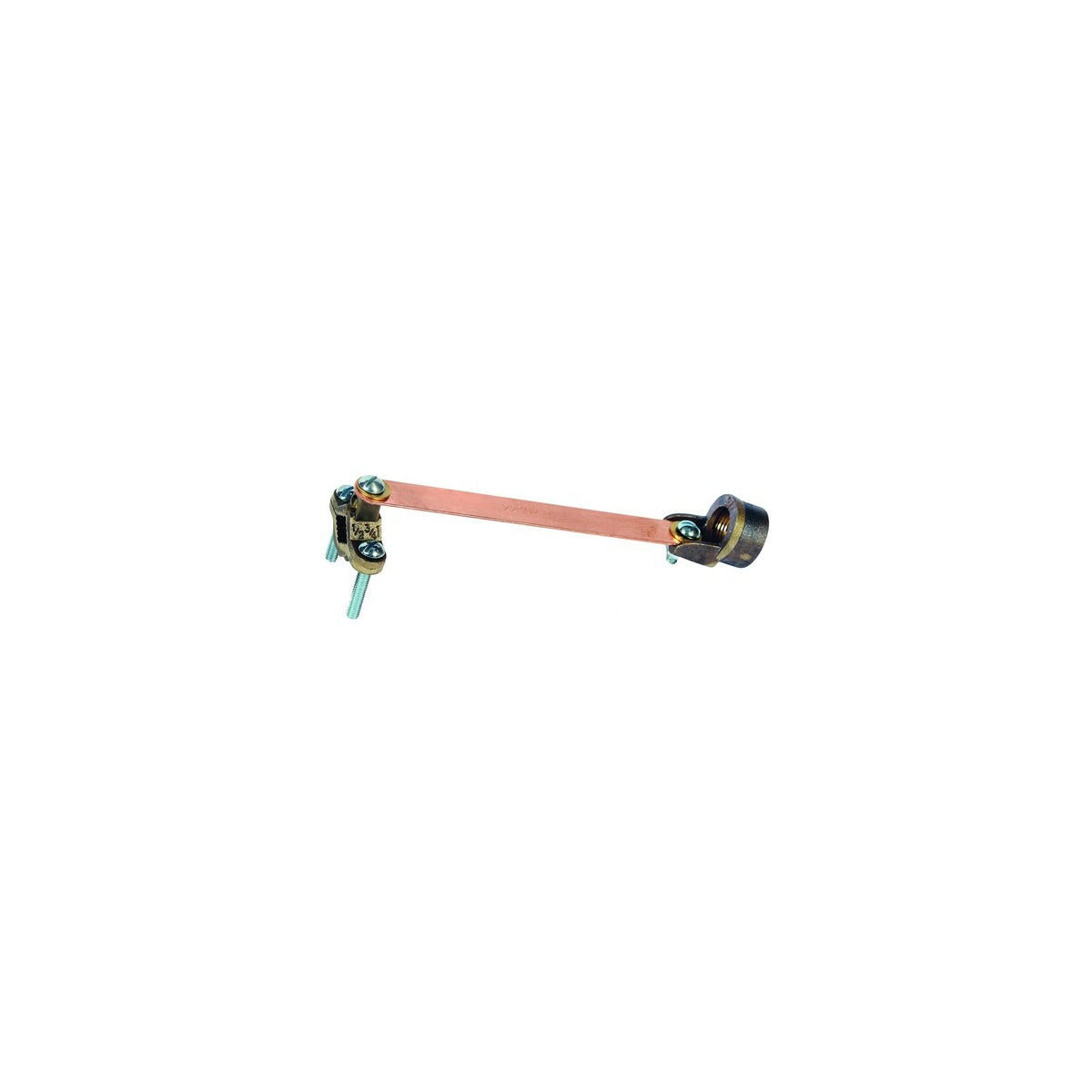

This copper ground clamp is designed for securely connecting grounding straps to rigid conduit, water pipes, ground rods, and copper weld tubing. It is suitable for use in electrical distribution and lighting solutions where reliable grounding is essential. The clamp features a 1/2" conduit hub with an 8" copper strap that swings 360° for easy alignment, making it a practical choice for wire and cable grounding applications in commercial and industrial settings.

Specifications

• Material: Copper
• Pipe Size Range: 1/2" to 1"
• Conduit Hub Size: 1/2"
• Strap Length: 8"
• Weight: 0.4180 lbs
• Manufacturer Part Number: 91550
• UL Listed

Features

• Suitable for connecting grounding strap to rigid conduit, water pipe, ground rod, and copper weld tubing
• 1/2" conduit hub with extension strap
• 8" copper strap and hub swing 360° for easy alignment
• Cast of high strength, high conductivity copper alloy
• Steel set screws are zinc plated for corrosion resistance

Downloads & Links

• Spec Sheet
