Copper Ground Clamps - Rigid Conduit Hub & Strap 1/2"-1" | Electrical Grounding Solutions

This copper ground clamp assembly is designed for secure grounding connections in electrical installations. It is suitable for connecting grounding straps to rigid conduit, water pipes, ground rods, and copper weld tubing, making it an essential component for electrical distributors and switchgear suppliers focusing on reliable grounding solutions.

Specifications

• Material: Copper
• Pipe Size Range: 1/2" to 1"
• Conduit Hub Size: 1/2" or 3/4"
• Dimensions: Length 2.24", Width 1.52"
• Top Screw Size: 1/4-20 x .63
• Side Screw Size: 1/4-20 x 1.50
• Product Weight: 0.5780 lbs
• Manufacturer Part #: 91558
• UL Listed

Features

• Cast from high strength, high conductivity copper alloy for optimal electrical performance
• 8" copper strap and hub swing 360¬∞ for easy alignment during installation
• Steel set screws are zinc plated to resist corrosion

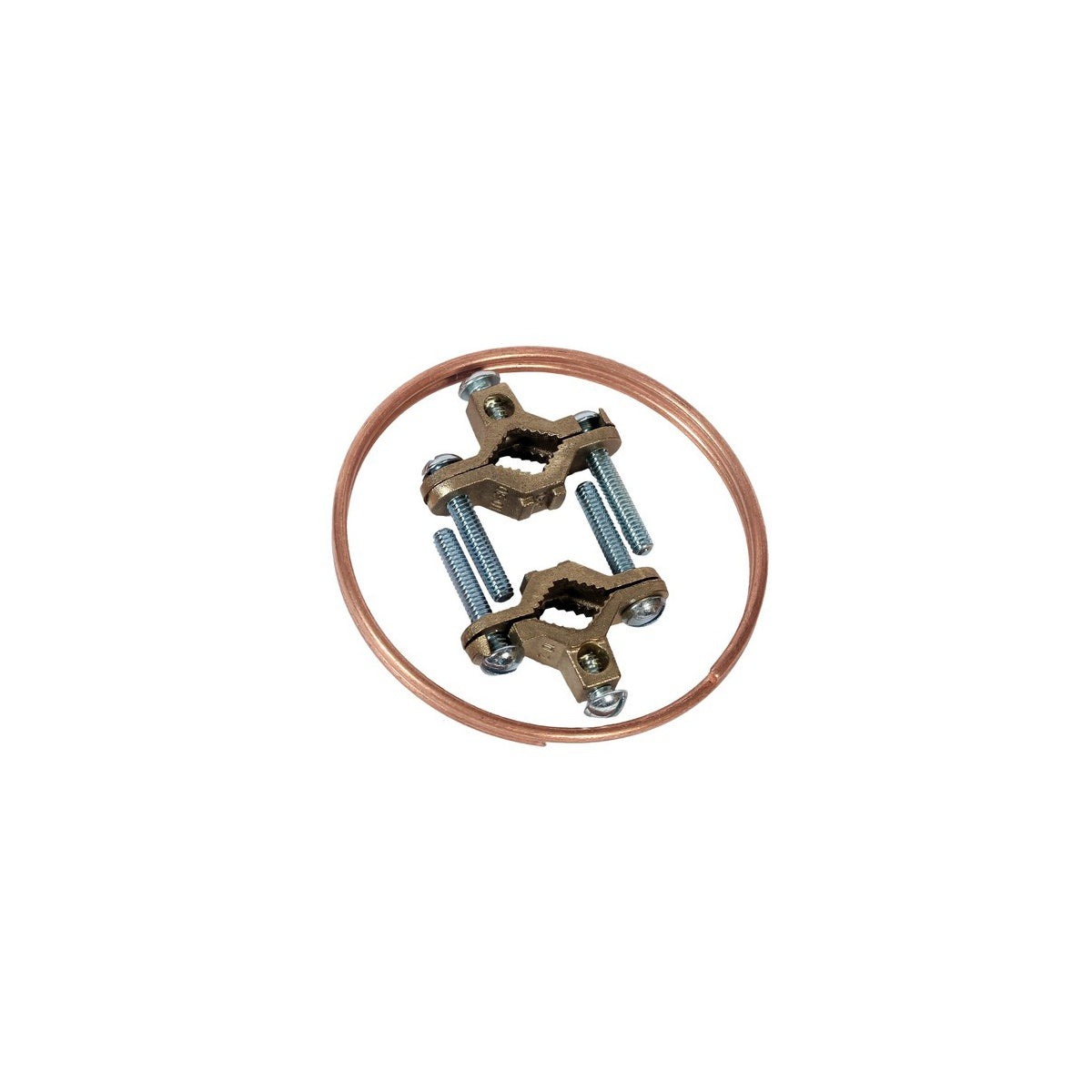

• Model 91558 includes two pipe clamps and 24" of 6 AWG copper wire, suitable for water heater grounding applications

Downloads & Links

• Spec Sheet
