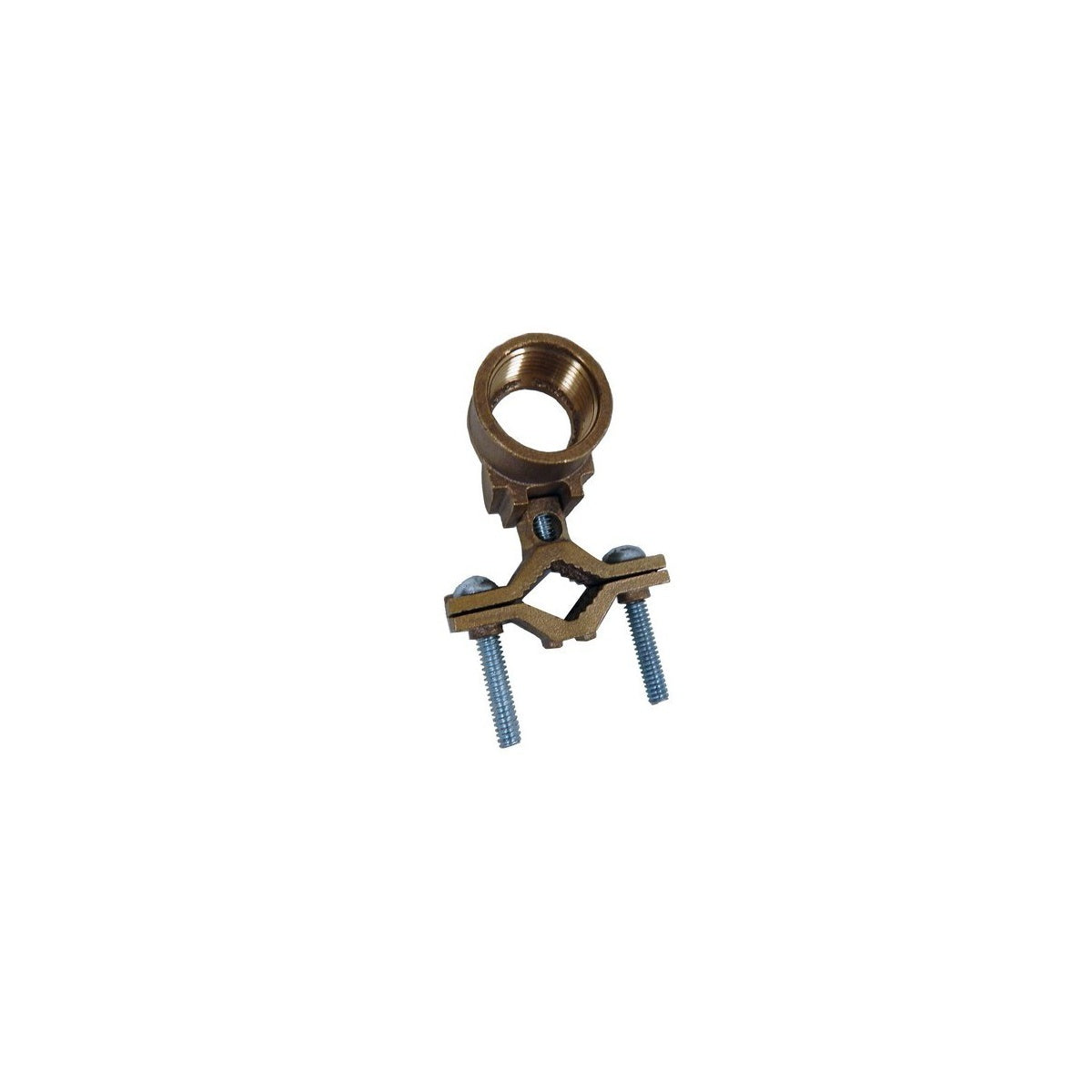

Copper Ground Clamps - Rigid Conduit Hub 1/2"-1" (3/4" Hub) for Electrical Grounding

This copper ground clamp is designed for secure grounding connections in electrical installations. It serves as a conduit hub adaptor compatible with rigid conduit sizes of 3/4" and pipe sizes ranging from 1/2" to 1". Suitable for use in wire and cable grounding applications, it ensures reliable electrical continuity for water pipes, ground rods, and copper tubing. This product is ideal for electrical distributors and switchgear suppliers seeking durable grounding solutions.

Specifications

• Material: High Conductivity Cast Copper Alloy
• Pipe Size: 1/2", 3/4", 1"
• Conduit Size: 3/4"
• Screw Type: Zinc Coated Steel
• Screw Size: Top 1/4" x 0.63", Bottom 1/4" x 1.50"
• Wire Range: #10 AWG ‚Äì #2 AWG
• Voltage Rating: 600 V
• Width: 2.34"
• Height: 1.51"
• UL Listed: Yes
• cUL Listed: Yes
• RoHS Compliant: Yes
• Product Weight: 0.6 lbs
• Manufacturer Part #: 90602

Features

• Manufactured from high strength, high conductivity cast copper alloy for optimal electrical performance
• Steel zinc plated set screws provide secure mechanical fastening
• Internal serrations enhance contact integrity for reliable grounding
• Conduit hub adaptor design facilitates connection between rigid conduit and grounding conductor
• Applicable for water pipe, ground rod, and copper tubing grounding applications

Downloads & Links

• Spec Sheet
