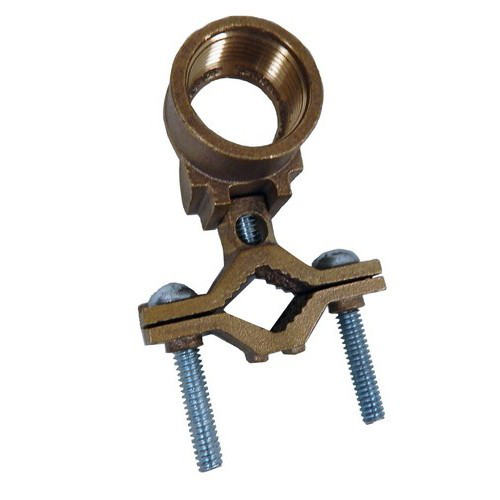

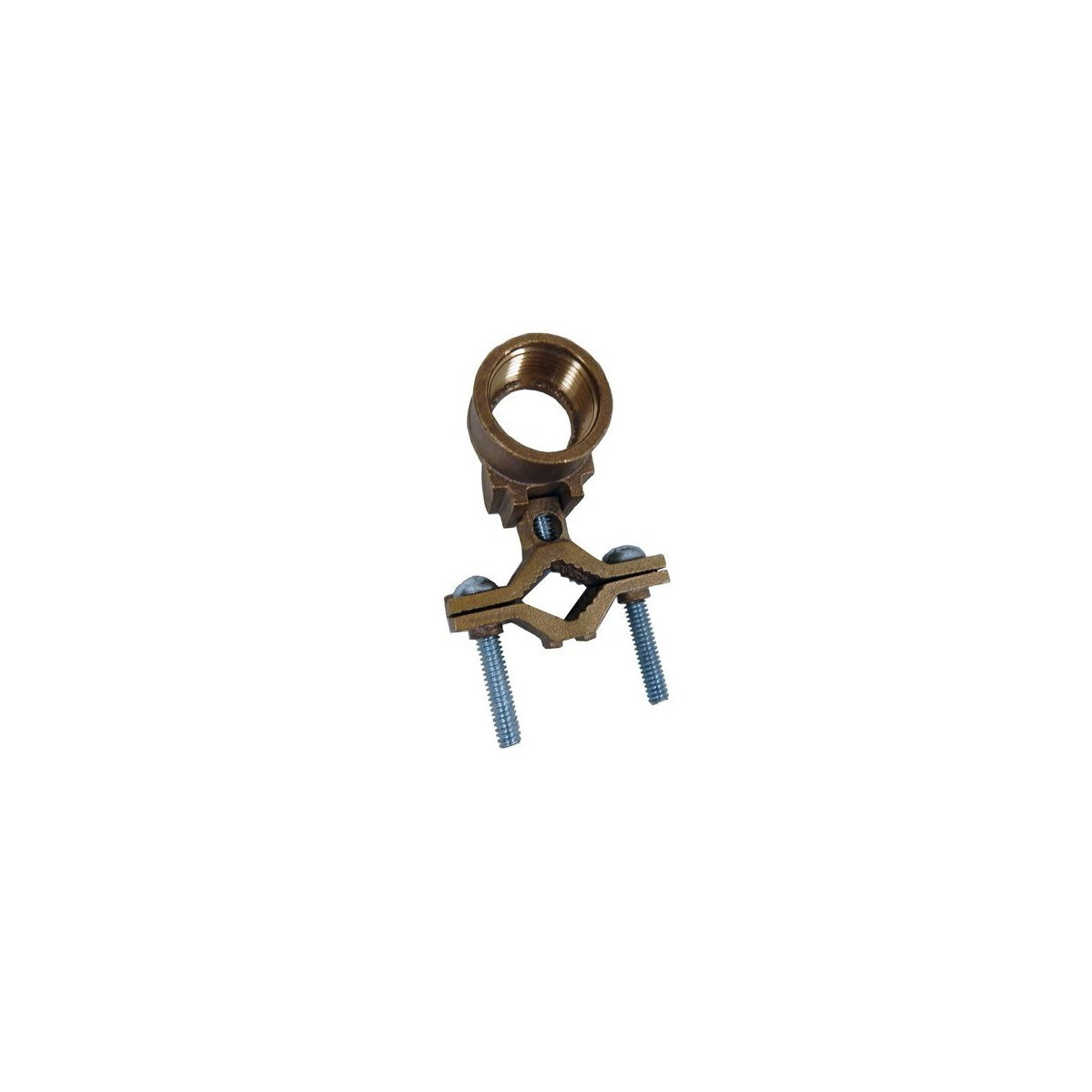

Copper Ground Clamps - Rigid Conduit Hub 1/2"-1" (1" Hub) for Electrical Grounding

This copper ground clamp is designed for secure grounding connections in electrical installations, suitable for use with water pipes, ground rods, and copper tubing. It serves as a conduit hub adaptor compatible with rigid conduit sizes of 1". Ideal for electrical distributors and switchgear suppliers requiring reliable grounding components in their wire and cable assemblies and lighting solutions.

Specifications

• Pipe Size: 1/2", 3/4", 1"
• Conduit Size: 1"
• Material: High Conductivity Cast Copper
• Screw Type: Zinc Coated Steel
• Screw Size: Top 1/4" x 0.63", Bottom 1/4" x 1.50"
• Wire Range: #10 AWG - #2 AWG
• Width: 2.34"
• Height: 1.51"
• Voltage Rating: 600V
• UL Certified: Yes
• cUL Certified: Yes
• RoHS Compliant: Yes

Features

• Manufactured from high strength, high conductivity cast copper alloy for optimal electrical performance
• Steel zinc-plated set screws ensure durable and secure connections
• Internal serrations improve contact integrity for reliable grounding
• Conduit hub adaptor design facilitates easy integration with rigid conduit systems
• Suitable for grounding applications involving water pipes, ground rods, and copper tubing

Downloads & Links

• Spec Sheet
