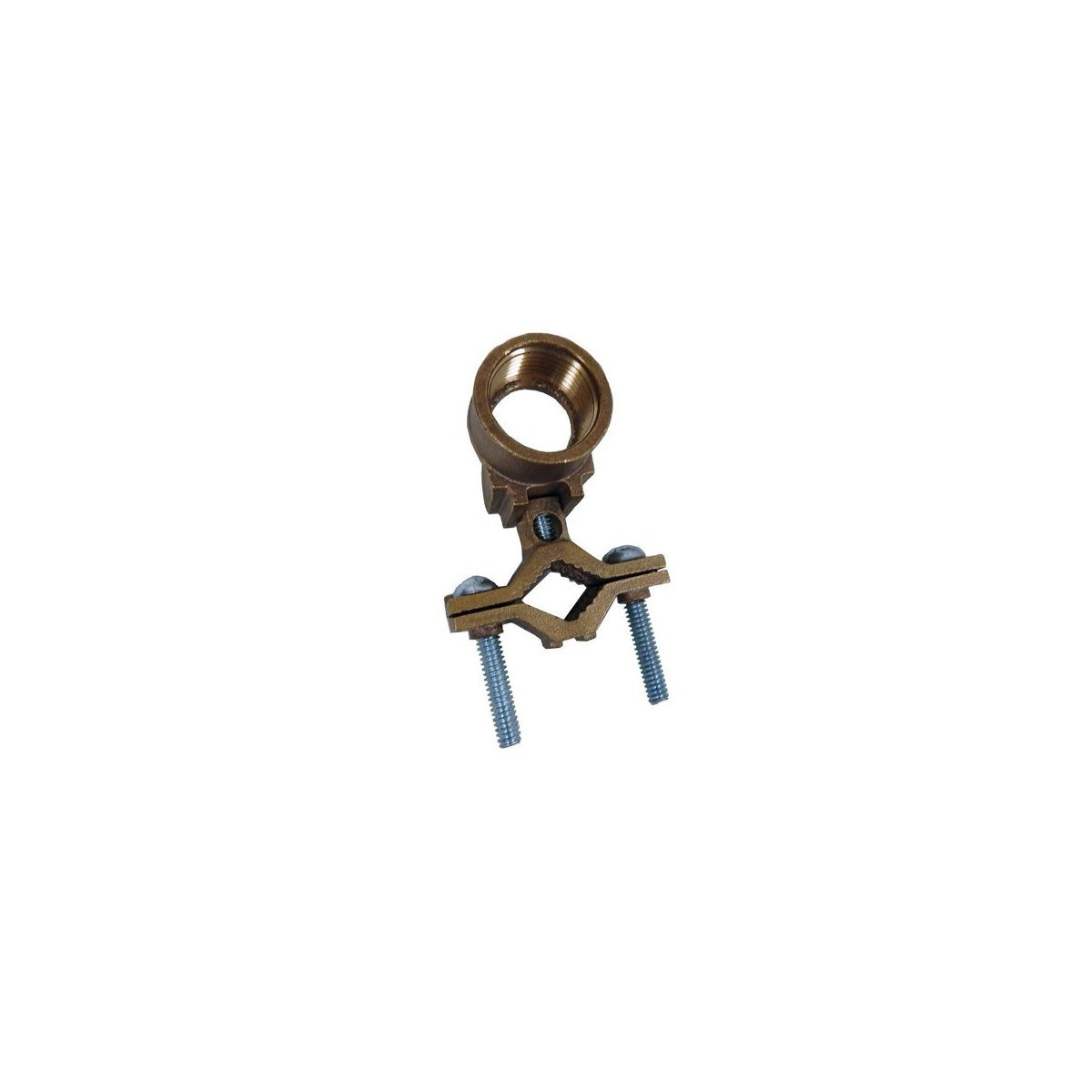

Copper Ground Clamps - Rigid Conduit Hub 1/2"-1" (1/2" Hub) Electrical Grounding Solution

This copper ground clamp is designed for secure grounding connections in electrical installations, suitable for use with water pipe, ground rod, and copper tubing applications. It serves as a rigid conduit hub adaptor, providing reliable contact integrity for grounding systems. Ideal for electrical distributors and switchgear suppliers requiring durable grounding components in wire and cable management and lighting solutions.

Specifications

• Pipe Size: 1/2", 3/4", 1"
• Conduit Size: 1/2"
• Material: High Conductivity Cast Copper
• Screw Type: Zinc coated steel
• Screw Size: Top 1/4" x 0.63", Bottom 1/4" x 1.50"
• Wire Range: #10 AWG ‚Äì #2 AWG
• Width: 2.34"
• Height: 1.51"
• Voltage Rating: 600V
• UL Certified: Yes
• cUL Certified: Yes
• RoHS Compliant: Yes

Features

• Manufactured from high strength, high conductivity cast copper alloy
• Steel zinc plated set screws for secure fastening
• Internal serrations enhance contact integrity
• Conduit hub adaptor design for rigid conduit applications
• Suitable for water pipe, ground rod, and copper tubing grounding

Downloads & Links

• Spec Sheet
