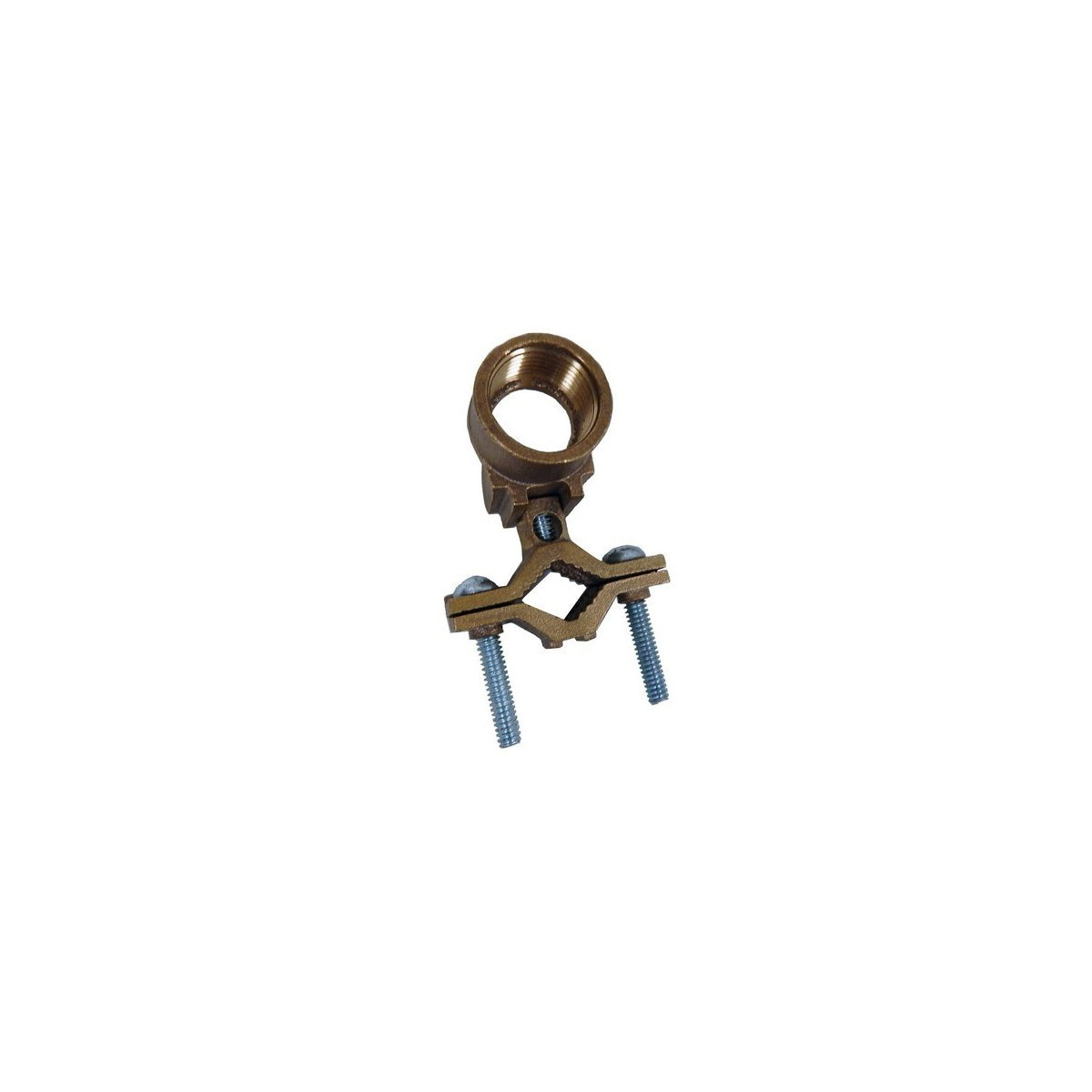

Copper Ground Clamps - Rigid Conduit Hub 1-1/4"-2" (3/4" Hub) Electrical Grounding Solution

This copper ground clamp is designed for secure grounding connections in electrical systems, suitable for use with rigid conduit hubs sized 1-1/4" to 2" and a 3/4" conduit size. It is ideal for electrical distributors and switchgear suppliers requiring reliable grounding components for wire and cable installations, water pipe, ground rod, and copper tubing applications.

Specifications

• Pipe Size: 1 1/4" - 2"
• Conduit Size: 3/4"
• Material: High Conductivity Cast Copper
• Screw Type: Zinc coated steel
• Screw Size: Top: 5/16" x 0.73", Bottom: 5/16" x 2.25"
• Wire Range: #10 AWG - #2 AWG
• Voltage Rating: 600 V
• Width: 2.34"
• Height: 1.51"
• Certifications: UL, cUL, RoHS

Features

• Manufactured from high strength, high conductivity cast copper alloy
• Steel zinc plated set screws for durable fastening
• Internal serrations improve contact integrity for secure grounding
• Conduit hub adaptor design facilitates connection to rigid conduit systems
• Suitable for grounding applications on water pipe, ground rod, and copper tubing
