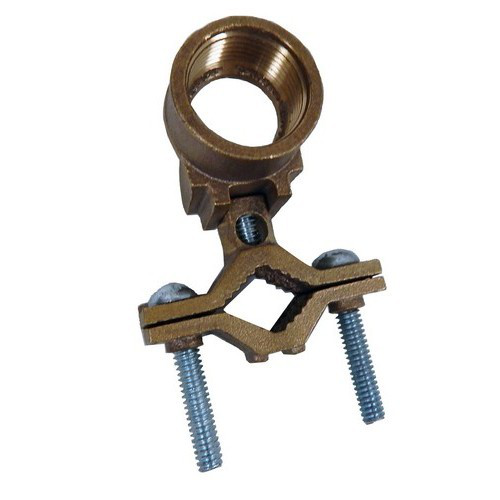

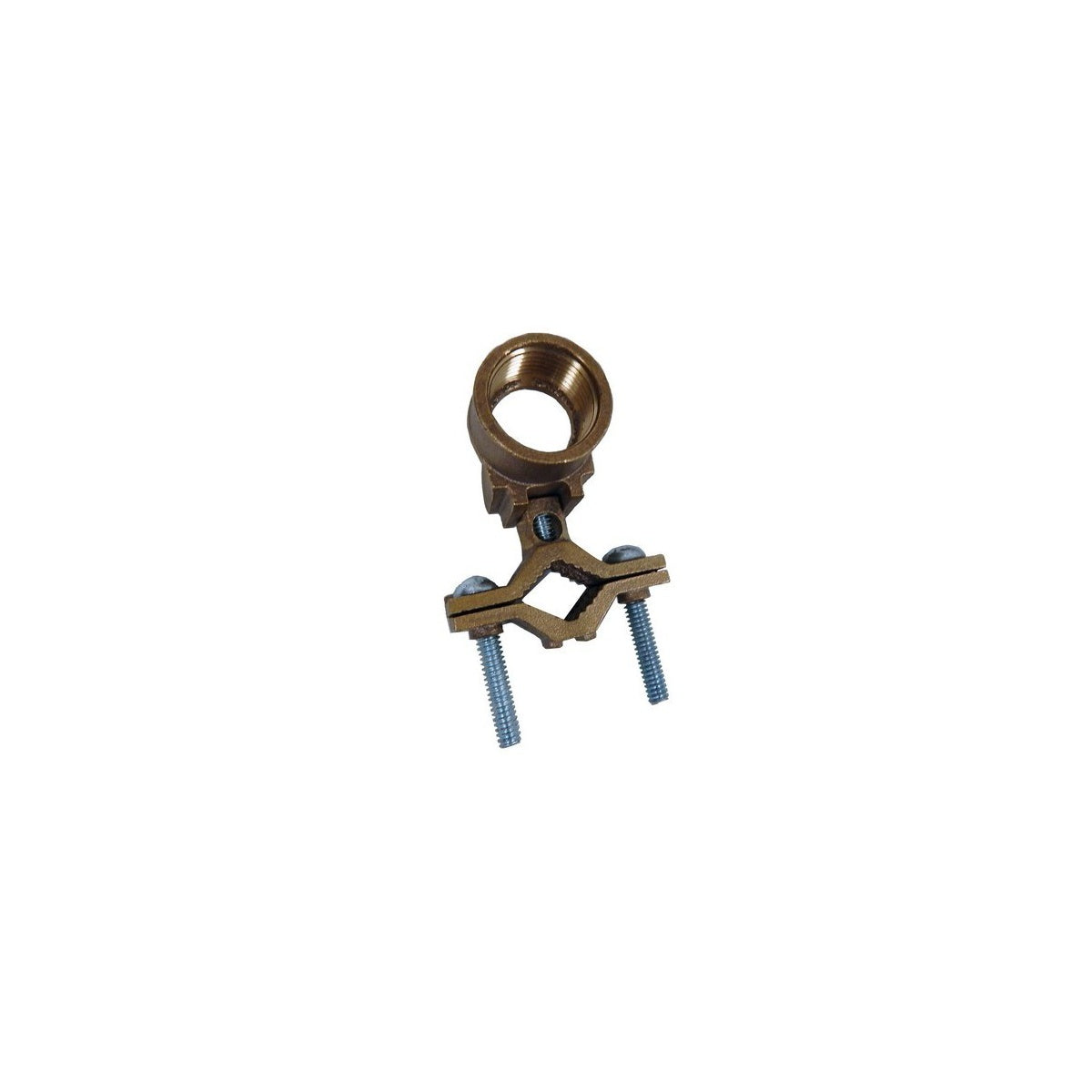

Copper Ground Clamps - Rigid Conduit Hub 1-1/4"-2" (1" Hub) for Electrical Grounding

This copper pipe ground clamp is designed for secure grounding connections in electrical installations. It serves as a conduit hub adaptor compatible with rigid conduit sizes of 1" and pipe sizes ranging from 1 1/4" to 2". Suitable for applications involving water pipe, ground rod, and copper tubing, it is ideal for electrical distributors and switchgear suppliers requiring reliable grounding hardware.

Specifications

• Material: High Conductivity Cast Copper Alloy
• Pipe Size: 1 1/4" - 2"
• Conduit Size: 1"
• Screw Type: Zinc Coated Steel
• Screw Size: Top 5/16" x 0.73", Bottom 5/16" x 2.25"
• Wire Range: #10 AWG - #2 AWG
• Voltage Rating: 600V
• Width: 2.34"
• Height: 1.51"
• UL Listed: Yes
• cUL Listed: Yes
• RoHS Compliant: Yes

Features

• Manufactured from high strength, high conductivity cast copper alloy for optimal electrical performance
• Steel zinc plated set screws provide durable and secure fastening
• Internal serrations enhance contact integrity for reliable grounding
• Adapted for use as a conduit hub in rigid conduit grounding applications
