Copper Ground Clamps - Cable Adaptor - Top Mount 1/2"-1" Grounding Solutions

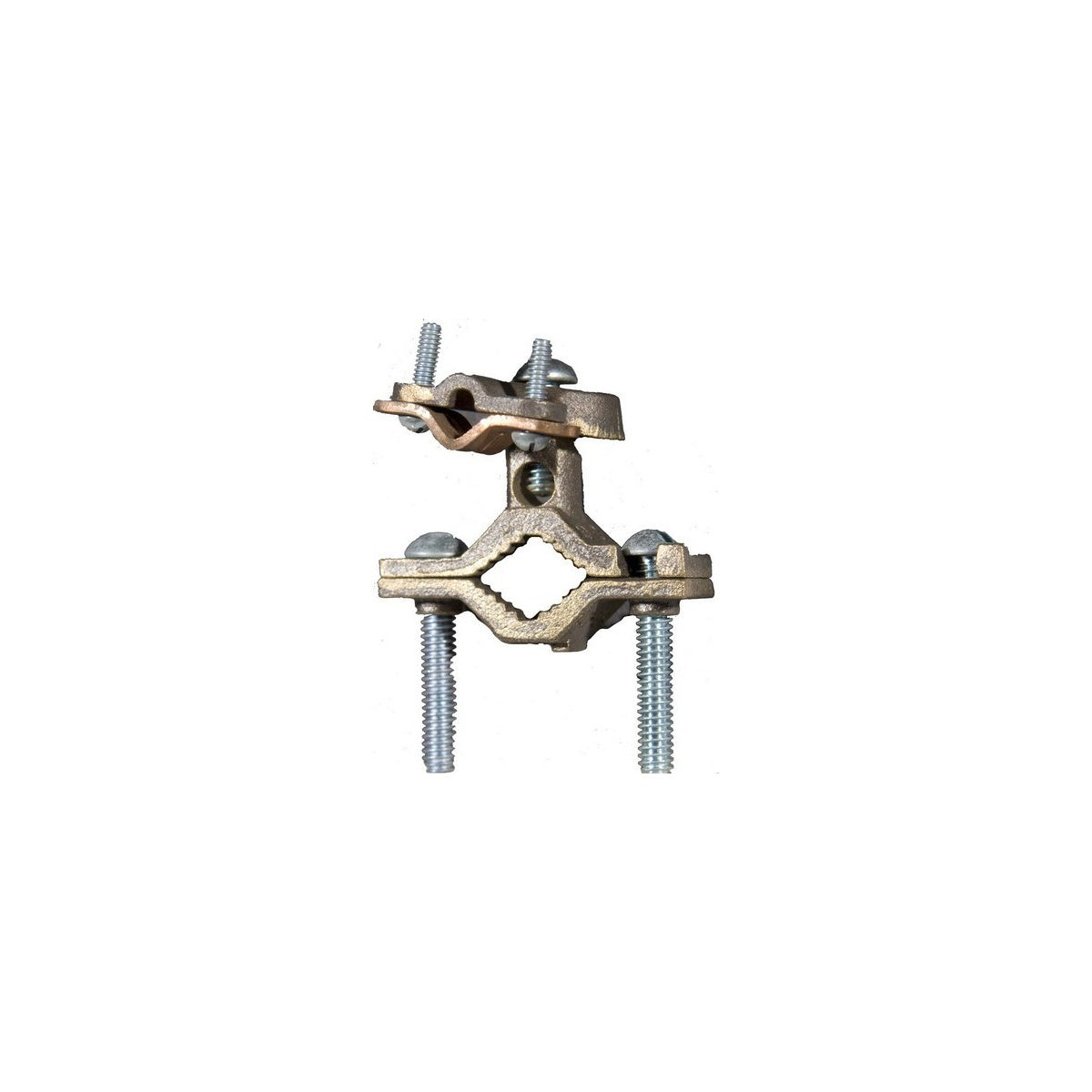

This copper ground clamp is designed for secure grounding connections on water pipes, ground rods, and copper tubing. It features a 360-degree rotating cable clamp adaptor compatible with armored or unarmored wire ranging from 1/2" to 1". Suitable for electrical distributors and switchgear suppliers requiring reliable grounding components in lighting solutions, wire and cable installations, and electrical distribution systems.

Specifications

• Pipe Size: 1/2" - 1"
• Material: High Conductivity Cast Copper Alloy
• Screw Type: Zinc Coated Steel
• Wire Range: #10 AWG - #6 AWG
• Width: 2.24"
• Height: 1.51"
• Voltage Rating: 600 V
• UL Listed: Yes
• cUL Listed: Yes
• RoHS Compliant: Yes
• Product Weight: 0.4420 lbs

Features

• Manufactured from high-strength, high-conductivity cast copper alloy for optimal electrical performance
• Steel zinc-plated set screws provide secure fastening and corrosion resistance
• Internal serrations enhance contact integrity with grounding surfaces
• Adaptor allows use with both armored and unarmored cable grounds
• Versatile top-mount design simplifies installation in various grounding applications
