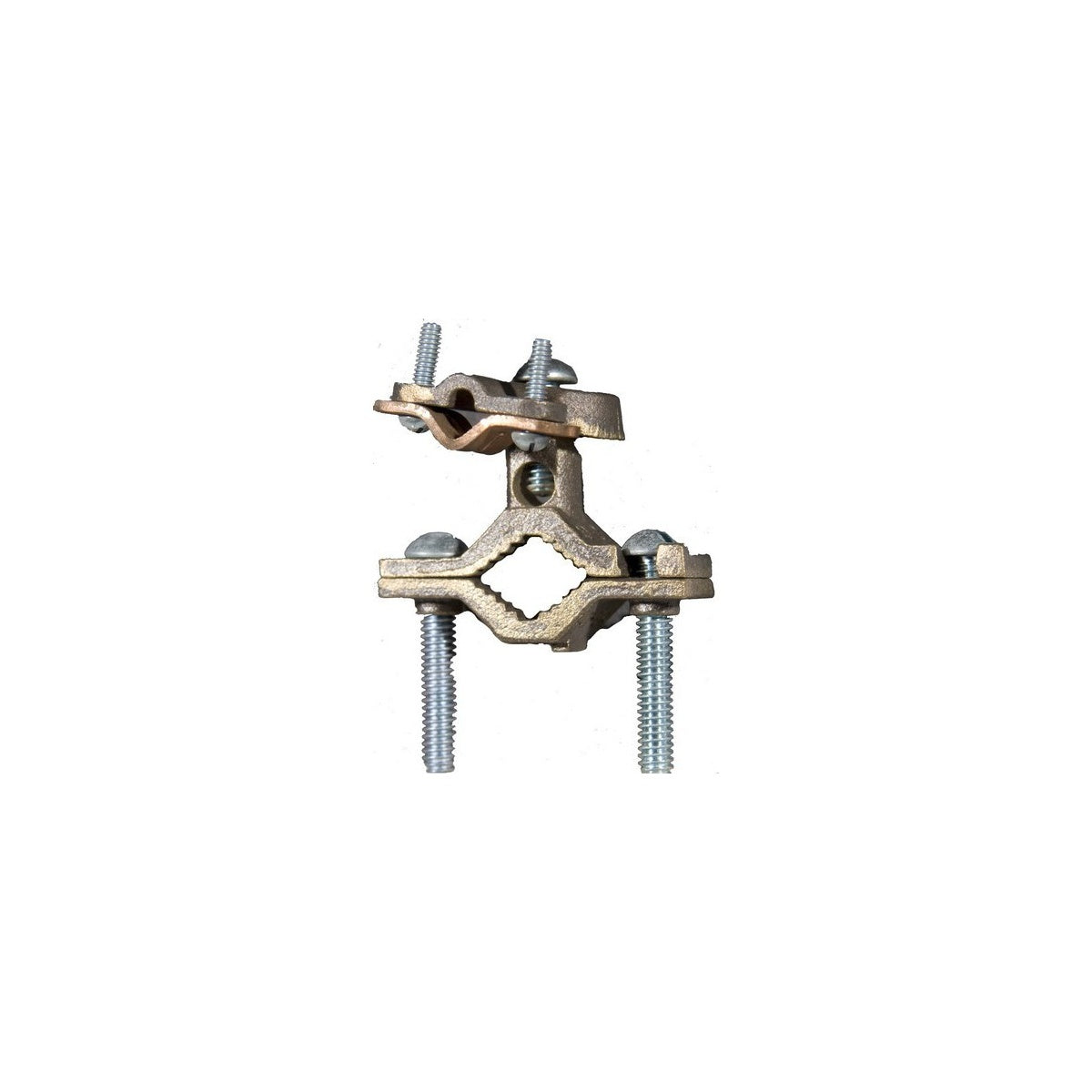

Copper Ground Clamps - Cable Adaptor - Top Mount 1-1/4"-2" Ground Clamp

This copper ground clamp is designed for secure grounding applications involving water pipes, ground rods, and copper tubing. It features a 360-degree rotating cable clamp adaptor suitable for both armored and unarmored wire sizes ranging from 1-1/4" to 2". This product is ideal for electrical distributors and switchgear suppliers requiring reliable grounding solutions in wire and cable installations.

Specifications

• Material: High Conductivity Cast Copper Alloy
• Pipe Size: 1 1/4" - 2"
• Screw Type: Zinc Coated Steel
• Wire Range: #10 AWG - #6 AWG
• Width: 3.58"
• Height: 2.47"
• Voltage Rating: 600 V
• UL Certified: Yes
• cUL Certified: Yes
• RoHS Compliant: Yes
• Product Weight: 0.8380 lbs

Features

• Manufactured from high strength, high conductivity cast copper alloy for optimal electrical performance
• Steel zinc-plated set screws provide durable and secure fastening
• Internal serrations improve contact integrity for reliable grounding
• Adaptor compatible with both armored and unarmored cable grounds
• Versatile 360-degree rotating cable clamp enhances ease of installation and flexibility

Downloads & Links

• Spec Sheet
