Morris Products
Copper Ground Clamp - U Bolt - 3 Conductor 4" Pipe #4 - 250 MCM
SKU: #278122
Part: #91776
UPC: 601986917766
Morris Products
Copper Ground Clamp - U Bolt - 3 Conductor 4" Pipe #4 - 250 MCM
SKU: #278122
Part: #91776
UPC: 601986917766
Description

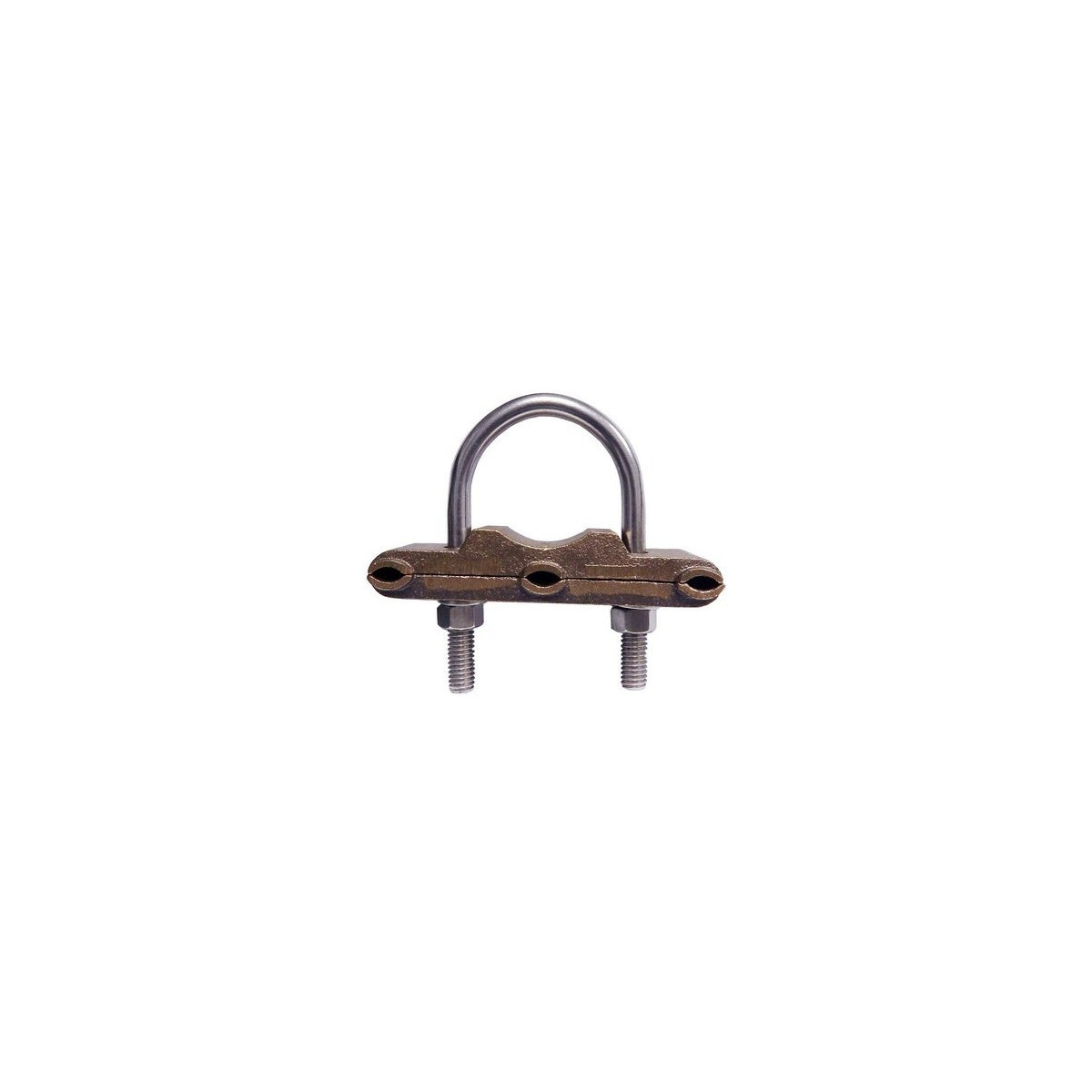

Copper Ground Clamp - U Bolt - 3 Conductor 4" Pipe #4 - 250 MCM Grounding Solutions
This copper ground clamp is designed for connecting three ground conductors in electrical grounding systems. It accommodates bonding to water pipes or fencing, making it suitable for use by electrical distributors and switchgear suppliers requiring reliable grounding connections. The clamp is constructed from high conductivity copper alloy and features stainless steel bolts, nuts, and lock washers for durability and corrosion resistance. It is UL 467 listed for direct burial in soil or concrete, supporting continuous ground loops in lighting solutions and wire and cable installations.
Specifications
- Material: Copper
- Conductor Capacity: 3 Conductors
- Pipe Size Compatibility: 4 inches
- Wire Range: #4 AWG to 250 MCM
- Dimensions: Width 3.8 in, Height 3.8 in
- Product Weight: 1.0050 lbs
- Manufacturer: Morris Products
- Manufacturer Part Number: 91776
- UL Listing: UL 467 for direct burial in soil or concrete
Features
- U-Bolt style clamp for secure grounding connections
- Connects three ground wires parallel or at 90° to water pipe, copper tubing, ground rod, rebar, or fencing
- High strength, high conductivity copper alloy construction
- Stainless steel hardware for corrosion resistance
- Suitable for continuous ground loops
- UL 467 listed for direct burial applications
