Morris Products
Copper Ground Clamp - U Bolt - 3 Conductor 1/4" Pipe #4 - 250 MCM
SKU: #278042
Part: #91766
UPC: 601986917667
Morris Products
Copper Ground Clamp - U Bolt - 3 Conductor 1/4" Pipe #4 - 250 MCM
SKU: #278042
Part: #91766
UPC: 601986917667
Description

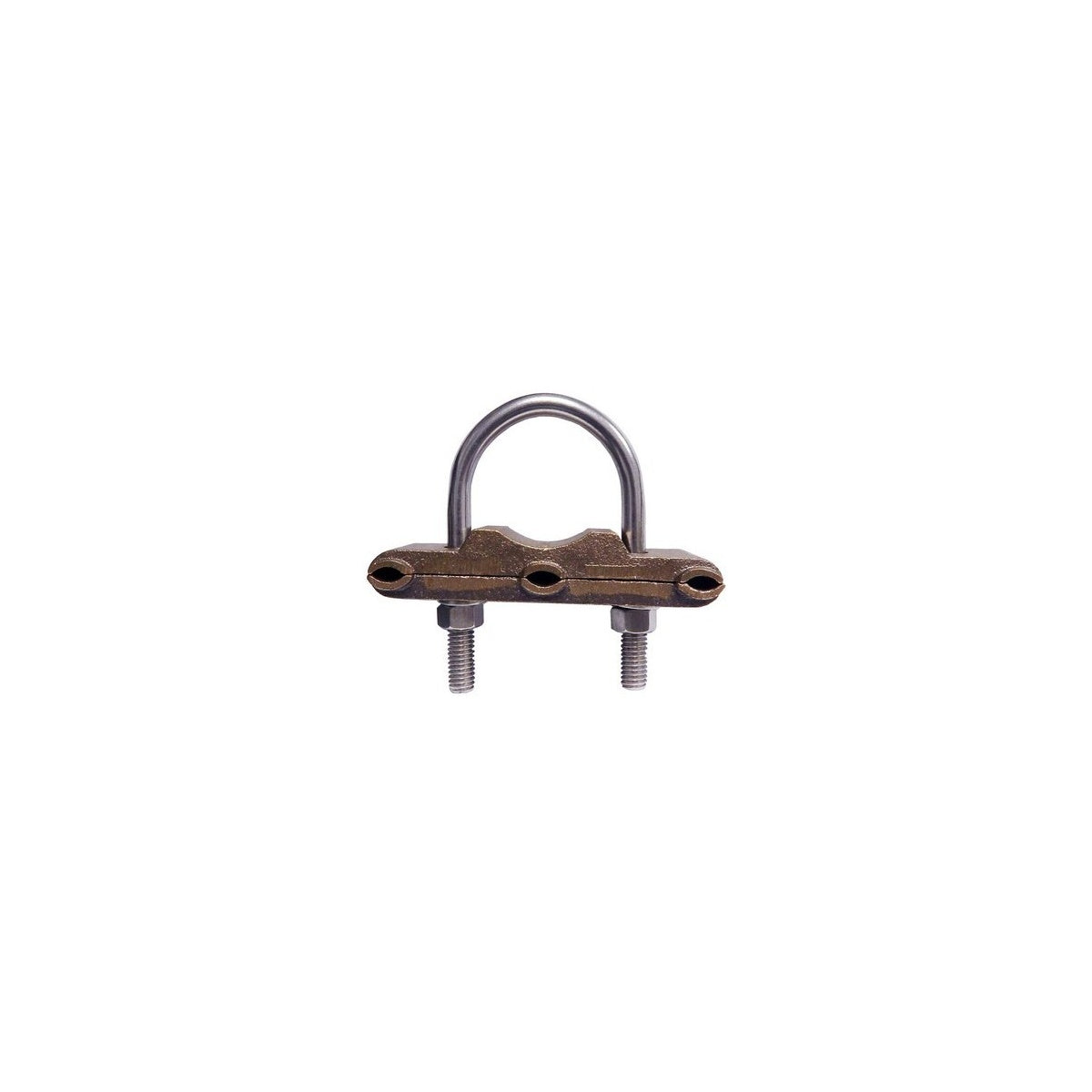

Copper Ground Clamp - U Bolt - 3 Conductor 1/4" Pipe #4 - 250 MCM Grounding Solutions
This copper ground clamp is designed for electrical distributors and switchgear suppliers requiring reliable grounding connections. It accommodates three ground electrodes for bonding to water pipes, copper tubing, ground rods, rebar, or fencing. Suitable for use in lighting solutions and wire and cable grounding applications, this clamp supports continuous ground loops and is UL 467 listed for direct burial in soil or concrete.
Specifications
- Material: Copper
- Conductor Capacity: 3 Conductors
- Pipe Size: 1/4 inch
- Wire Range: #4 to 250 MCM
- Width: 3-5/8 inches
- Height: 2-3/4 inches
- Product Weight: 0.3750 lbs
- Manufacturer: Morris Products
- Manufacturer Part #: 91766
Features
- U-bolt style clamp for secure grounding connections
- Cast of high strength, high conductivity copper alloy
- Includes stainless steel bolts, nuts, and lock washers for corrosion resistance
- UL 467 listed for direct burial in soil or concrete
- Designed for bonding multiple ground electrodes parallel or at 90° to pipe or grounding surfaces
