Description

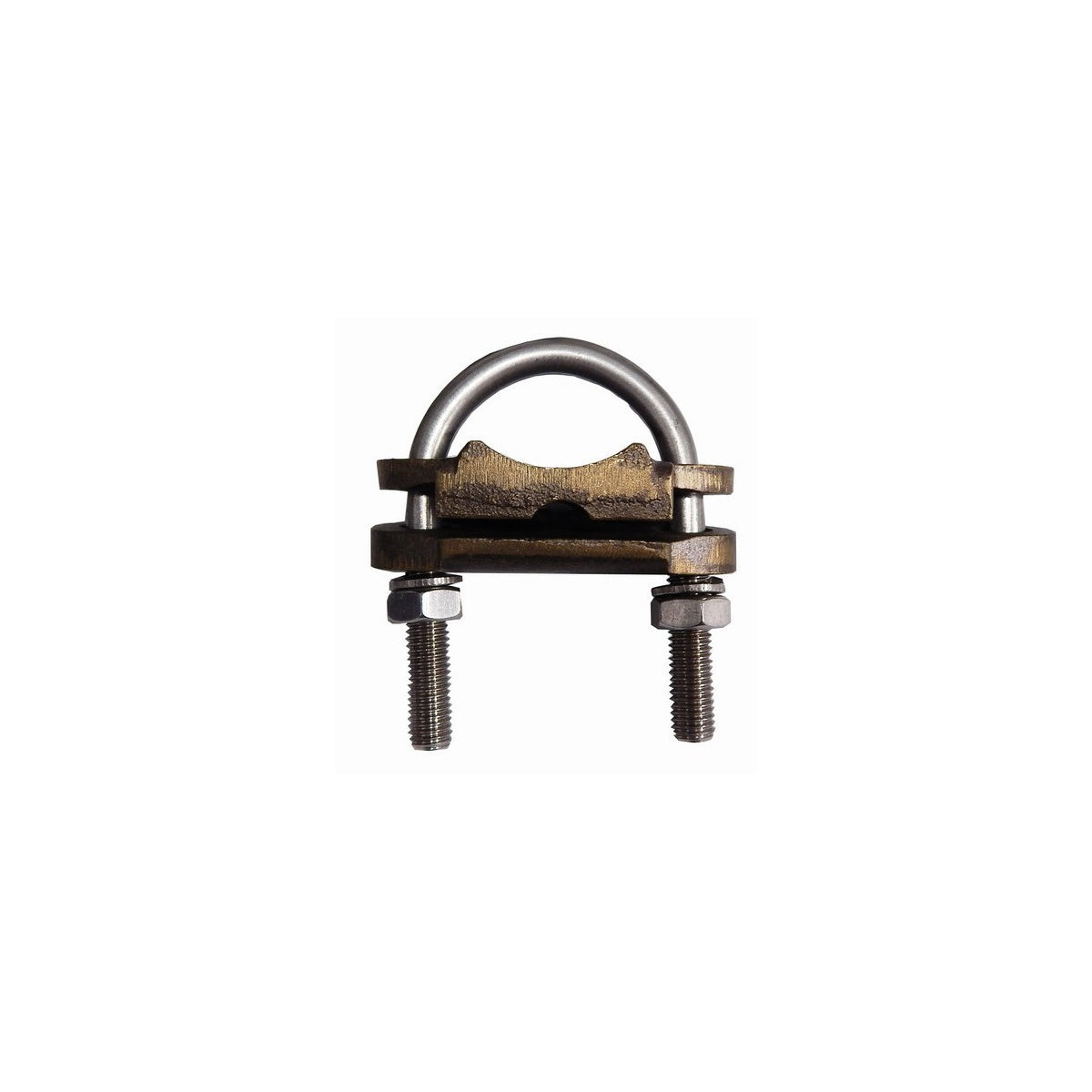

Copper Ground Clamp - U Bolt - 1 Conductor 2-1/2" Pipe #4 - 250 MCM
This copper ground clamp is designed for secure bonding of one ground conductor to water pipes or fencing, suitable for electrical distributors and lighting solutions requiring reliable grounding connections. It accommodates one conductor in the range of #4 to 250 MCM and is ideal for use in wire and cable grounding systems and switchgear supplier applications.
Specifications
- Material: Copper
- Conductor Capacity: 1 conductor, #4 - 250 MCM
- Pipe Size: 2-1/2"
- Height: 5 in
- Product Weight: 0.81 lbs
- Manufacturer: Morris Products
- Manufacturer Part #: 91746
Features
- U-Bolt style clamp for secure attachment
- Connects ground wire parallel or 90° to water pipe, copper tubing, ground rod, rebar, or fencing
- Cast from high strength, high conductivity copper alloy
- Stainless steel bolts, nuts, and lock washers for corrosion resistance
- UL 467 listed for direct burial in soil or concrete
- Compatible with continuous ground loops
