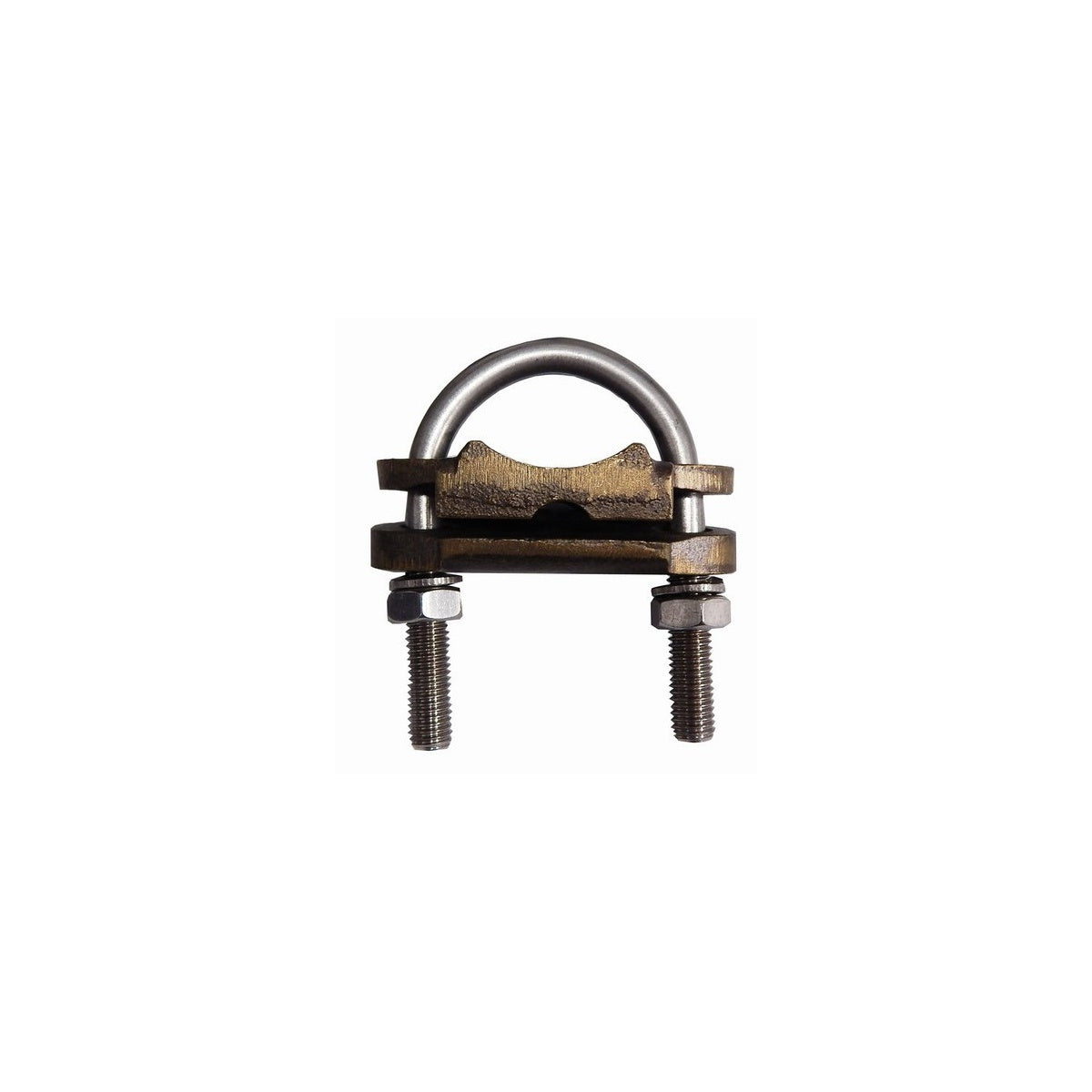

Copper Ground Clamp - U Bolt - 1 Conductor 1" Pipe 2/0 - 250 MCM Grounding Solutions

This Copper Ground Clamp is designed for secure bonding of one ground conductor to water pipes, copper tubing, ground rods, rebar, or fencing. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable grounding solutions in wire and cable installations and lighting solutions.

Specifications

• Material: Copper
• Conductor Capacity: 1 Conductor, 2/0 - 250 MCM
• Pipe Size: 1 inch
• Product Weight: 0.7950 lbs
• Width: 42409 in
• Height: 42432 in
• Manufacturer: Morris Products
• Manufacturer Part #: 91738

Features

• U-Bolt style clamp for secure grounding connections
• Connects one ground wire parallel or at 90¬∞ to water pipe, copper tubing, ground rod, rebar, or fencing
• Cast from high-strength, high-conductivity copper alloy for durability and effective conductivity
• Equipped with stainless steel bolts, nuts, and lock washers for corrosion resistance
• UL 467 listed for direct burial in soil or concrete
• Compatible with continuous ground loops

Downloads & Links

• Spec Sheet
