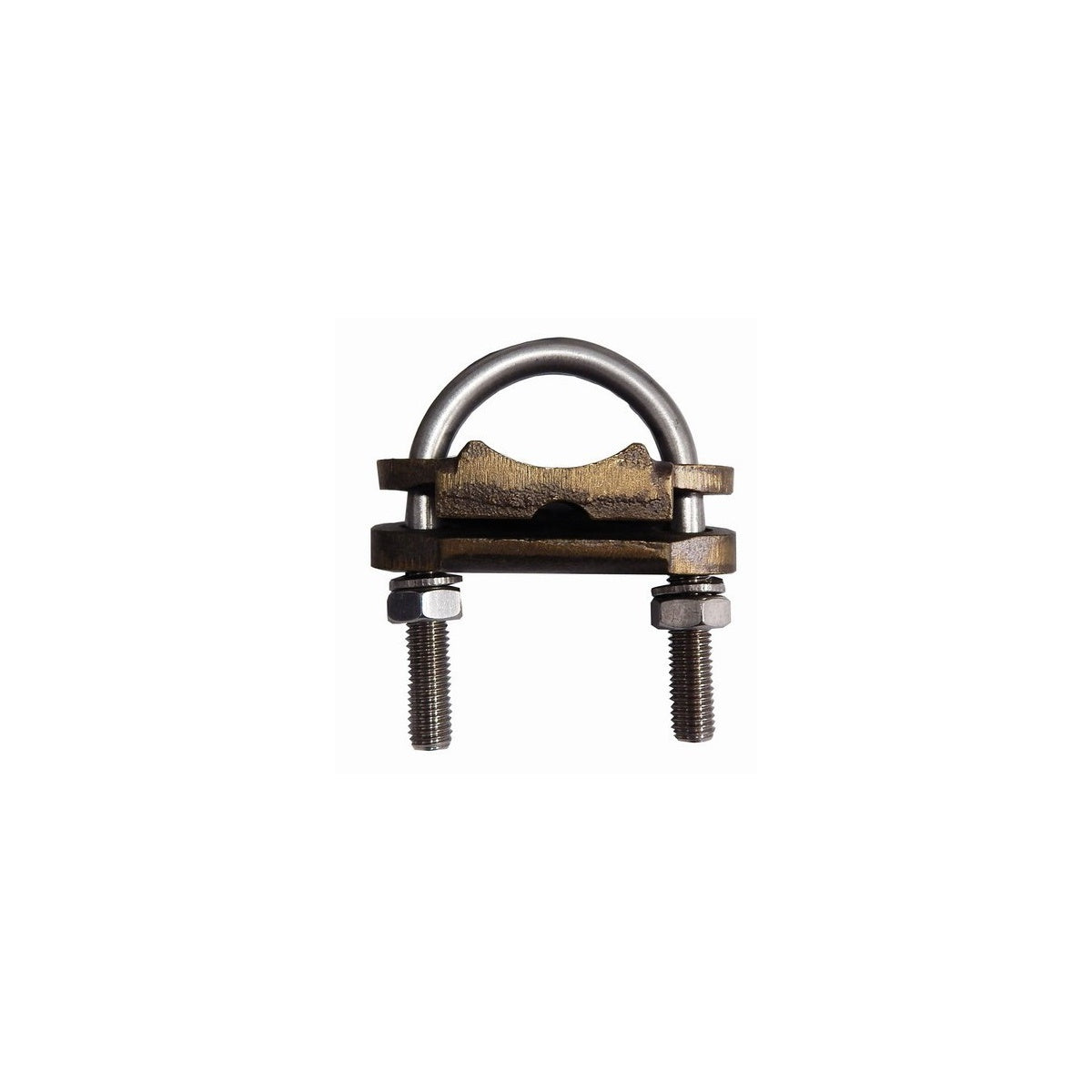

Copper Ground Clamp - U Bolt - 1 Conductor 1/2" or 3/4" Pipe 2/0 - 250 MCM Grounding Solutions

This copper ground clamp is designed for securely bonding one ground conductor to water pipes, copper tubing, ground rods, rebar, or fencing. It is suitable for electrical distributors and switchgear suppliers requiring reliable grounding connections in wire and cable installations and lighting solutions. The clamp supports conductor sizes from 2/0 to 250 MCM and fits 1/2" or 3/4" pipe sizes, ensuring compatibility with common grounding applications.

Specifications

• Material: Copper
• Conductor Capacity: 1 conductor, 2/0 - 250 MCM
• Pipe Size Compatibility: 1/2" or 3/4" pipe
• Product Weight: 0.7950 lbs
• Dimensions: Width 42405 in, Height 42434 in
• Manufacturer: Morris Products
• Manufacturer Part #: 91736
• UL Listing: UL 467 Listed for direct burial in soil or concrete

Features

• U-bolt style clamp for secure grounding connections
• Connects one ground wire parallel or at 90¬∞ to water pipe, copper tubing, ground rod, rebar, or fencing
• Cast from high strength, high conductivity copper alloy
• Stainless steel bolts, nuts, and lock washers for corrosion resistance
• Suitable for use with continuous ground loops
