Morris Products

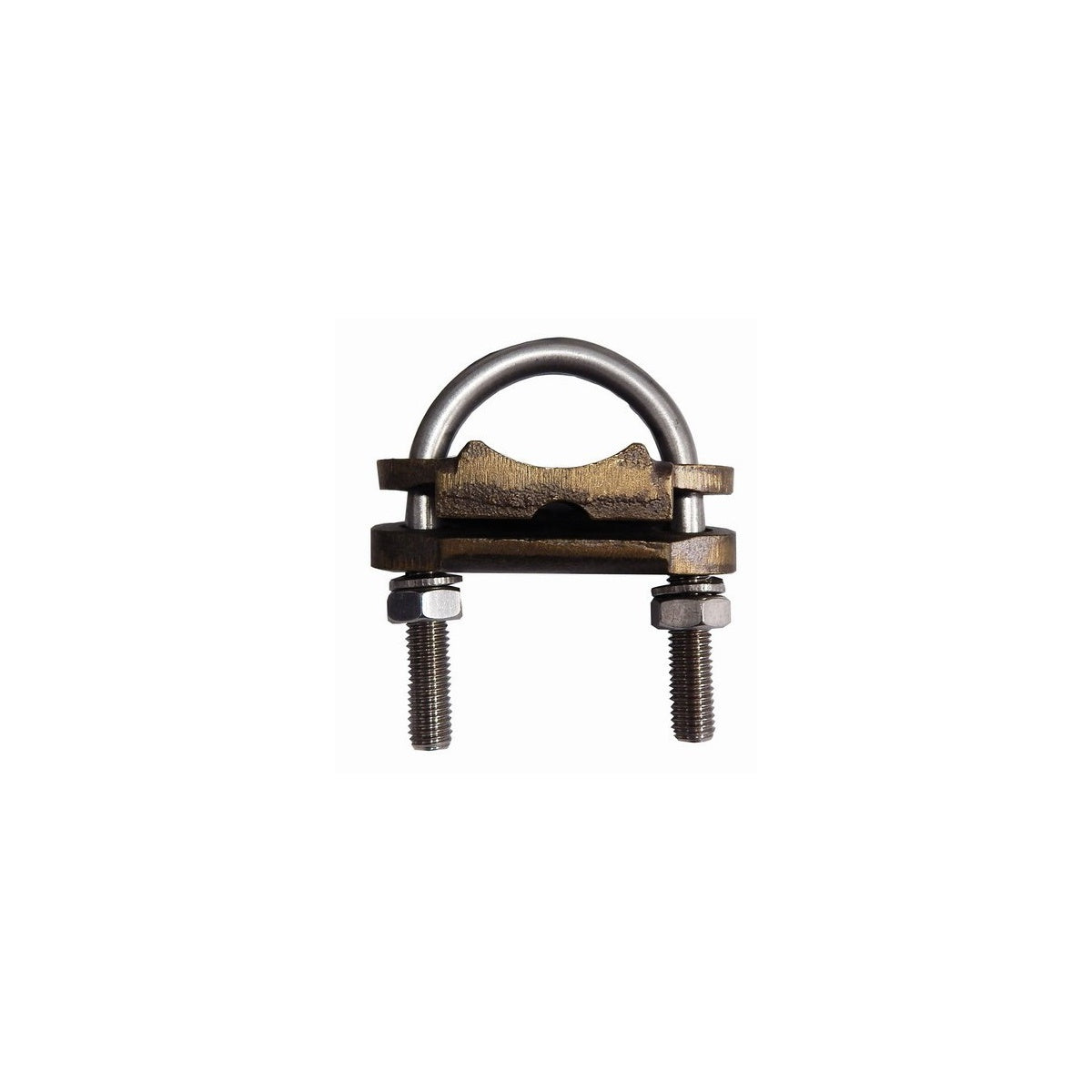

Copper Ground Clamp - U Bolt - 1 Conductor 1-1/4" Pipe #4 - 250 MCM
SKU: #277981
Part: #91740
UPC: 601986917407
Morris Products
Copper Ground Clamp - U Bolt - 1 Conductor 1-1/4" Pipe #4 - 250 MCM
SKU: #277981
Part: #91740
UPC: 601986917407
Description
Copper Ground Clamp - U Bolt - 1 Conductor 1-1/4" Pipe #4 - 250 MCM
This copper ground clamp is designed for secure bonding of one ground conductor to water pipes, copper tubing, ground rods, rebar, or fencing. It is suitable for use by electrical distributors and switchgear suppliers needing reliable grounding solutions in wire and cable installations. The U-bolt style clamp facilitates connection of a single conductor in parallel or at a 90° angle, supporting continuous ground loops in electrical grounding systems.
Specifications
- Material: Copper
- Conductor Capacity: 1 conductor, #4 - 250 MCM
- Pipe Size: 1-1/4 inch
- Width: 3 in
- Height: 3-1/2 in
- Product Weight: 0.6750 lbs
- Manufacturer: Morris Products
- Manufacturer Part #: 91740
- UPC: 601986917407
Features
- U-Bolt style clamp for secure grounding connections
- Connects one ground wire parallel or 90° to water pipe, copper tubing, ground rod, rebar, or fencing
- Cast from high strength, high conductivity copper alloy
- Equipped with stainless steel bolts, nuts, and lock washers for durability
- UL 467 Listed for direct burial in soil or concrete
- Compatible with continuous ground loops
