Morris Products

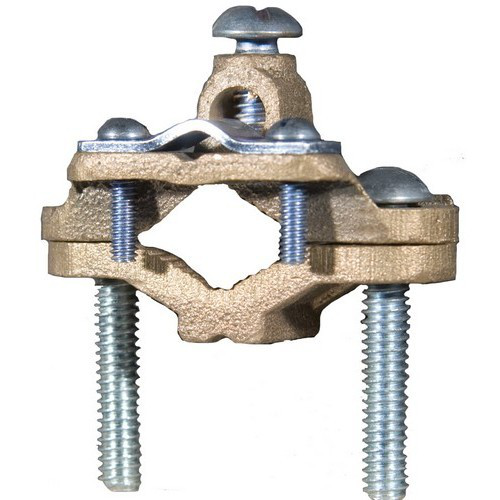

Copper Ground Clamp - Cable Adaptor 1/2"-1"
SKU: #277834
Part: #91670
UPC: 601986916707
Morris Products
Copper Ground Clamp - Cable Adaptor 1/2"-1"
SKU: #277834
Part: #91670
UPC: 601986916707
Next day delivery
Description
Copper Ground Clamp - Cable Adaptor 1/2"-1" for Electrical Grounding
This Copper Ground Clamp is designed for grounding applications involving armored or unarmored wire ranging from 1/2" to 1". It is suitable for use with water pipes, ground rods, and copper tubing, making it an essential component for electrical distributors and switchgear suppliers managing wire and cable grounding solutions.
Specifications
- Pipe Size: 1/2" - 1"
- Material: High Conductivity Cast Copper Alloy
- Screw Type: Zinc Coated Steel
- Wire Range: #8 AWG - #4 AWG
- Width: 2.24"
- Height: 1.38"
- Voltage Rating: 600 V
- Box Quantity: 10
- Certifications: UL, cUL, RoHS Compliant
Features
- Manufactured from high strength, high conductivity cast copper alloy for reliable grounding performance
- Steel zinc-plated set screws provide secure and corrosion-resistant fastening
- Internal serrations enhance contact integrity for dependable electrical connection
- Adaptor accommodates both armored and unarmored cable grounds
- Suitable for grounding applications involving water pipes, ground rods, and copper tubing
