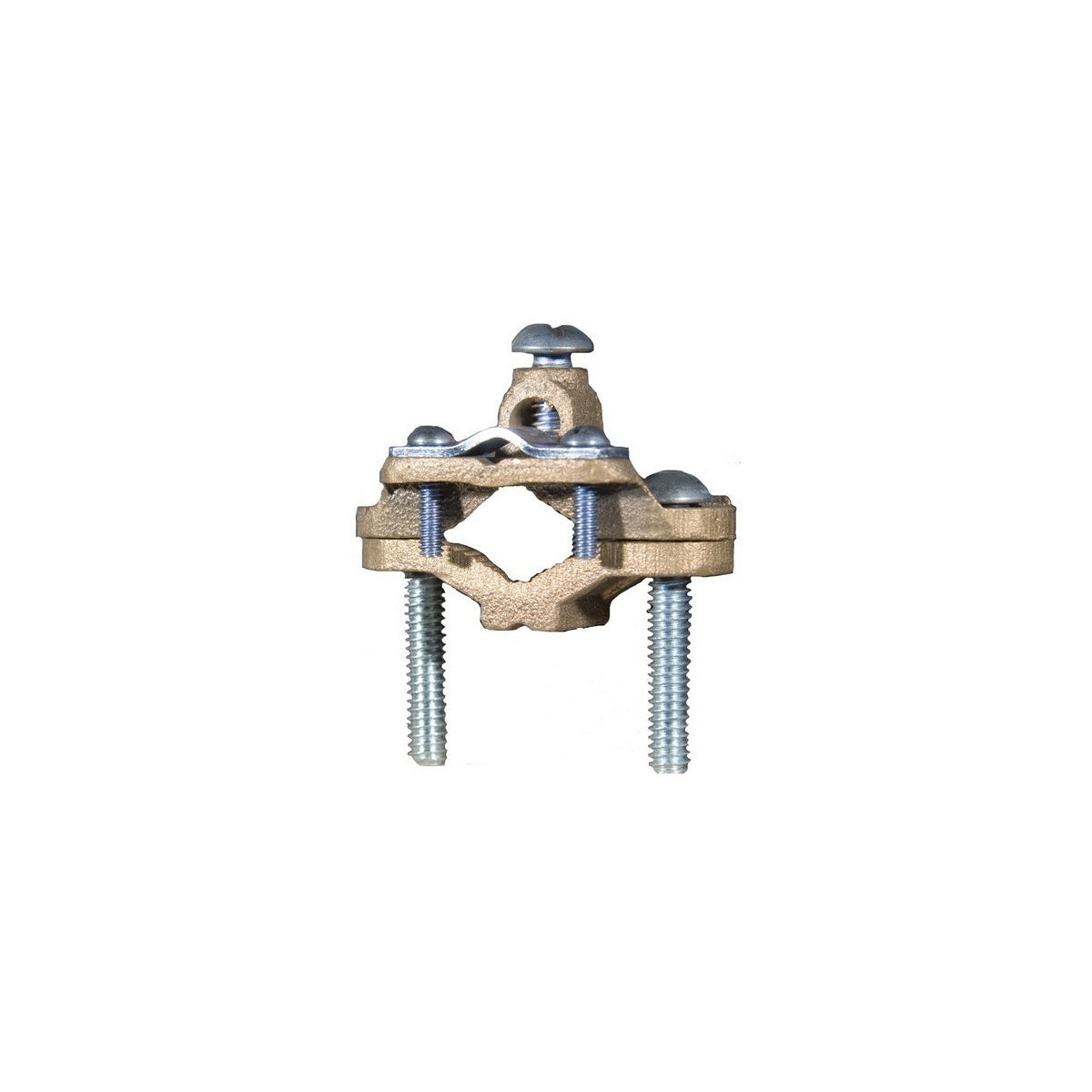

Copper Ground Clamp - Cable Adaptor 1-1/4"-2" for Electrical Grounding

The Copper Ground Clamp - Cable Adaptor 1-1/4"-2" is designed for grounding applications involving armored or unarmored wire. This product is suitable for use in electrical distribution systems, lighting solutions, and wire and cable installations, providing secure grounding connections to water pipes, ground rods, and copper tubing. It is an essential component for switchgear suppliers and electrical distributors requiring reliable grounding hardware.

Specifications

• Pipe Size: 1 1/4" - 2"
• Material: High Conductivity Cast Copper Alloy
• Screw Type: Zinc Coated Steel
• Wire Range: #8 AWG - #4 AWG
• Width: 3.58"
• Height: 2.11"
• Voltage Rating: 600 V
• UL Certified: Yes
• cUL Certified: Yes
• RoHS Compliant: Yes

Features

• Manufactured from high strength, high conductivity cast copper alloy for optimal electrical performance
• Steel zinc-plated set screws ensure secure fastening and corrosion resistance
• Internal serrations improve contact integrity for stable grounding connections
• Adaptor design accommodates both armored and unarmored cable grounding
• Suitable for grounding to water pipes, ground rods, and copper tubing

Downloads & Links

• Spec Sheet
