Copper Gray Compression Long Lug, 4 AWG, 3/8" Mount
SKU: #305311
Part: #L438
UPC: 662381034021
Copper Gray Compression Long Lug, 4 AWG, 3/8" Mount
SKU: #305311
Part: #L438
UPC: 662381034021
Description

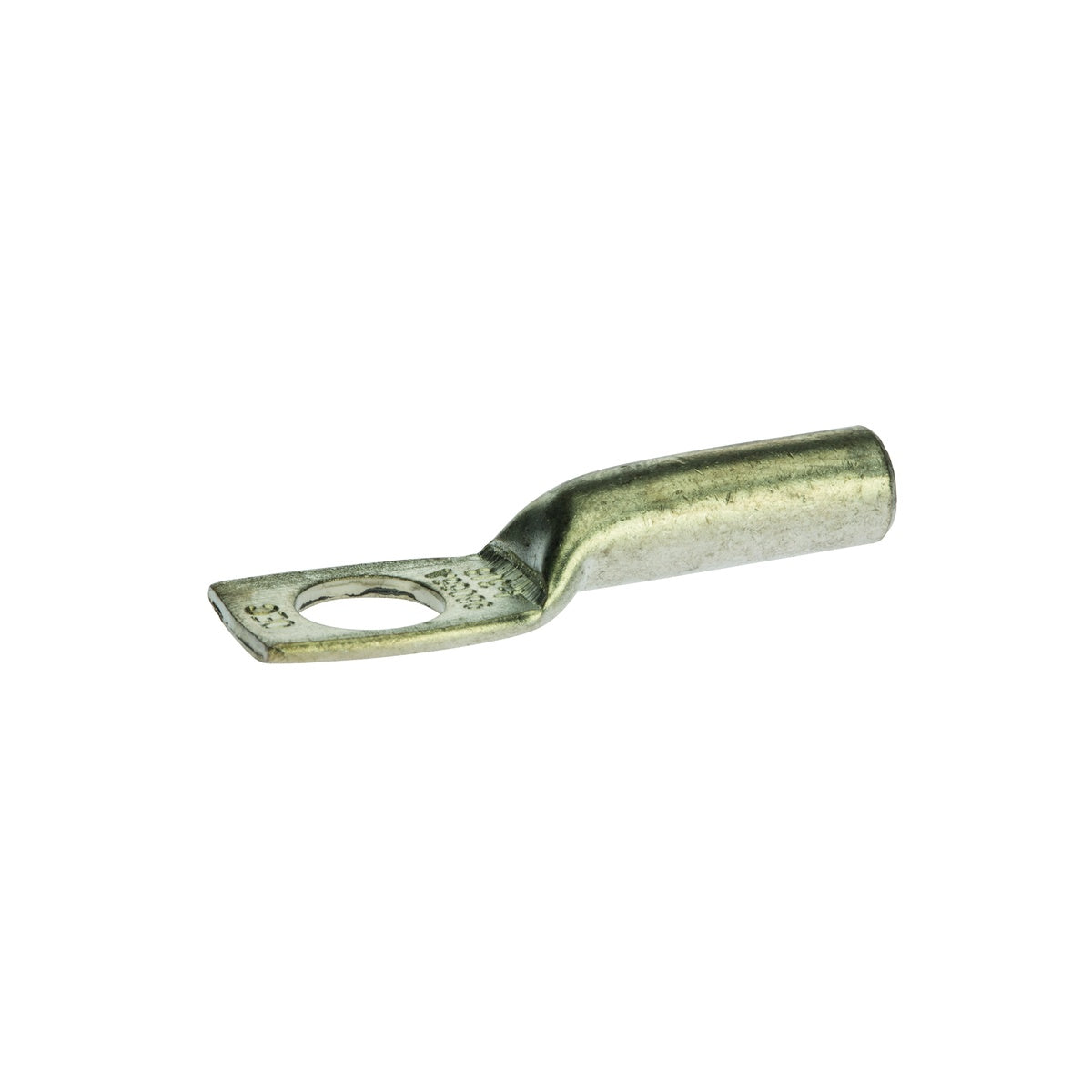

Copper Gray Compression Long Lug, 4 AWG, 3/8" Mount – Compression Connector
The Copper Gray Compression Long Lug is designed for terminating, splicing, and tapping power connectors in electrical distribution systems. Manufactured by NSI Industries, this lug is made from tin-plated copper to ensure high conductivity and corrosion resistance, suitable for use by electrical distributors and switchgear suppliers. It is ideal for secondary power distribution in buildings, power plants, and industrial applications, providing reliable mechanical and electrical connections.
Specifications
- Material: Copper
- Finish: Tin-Plated
- Color: Gray
- Cable Size: #4 AWG (STR)
- Mounting: 3/8" Mounting Hole
- Number of Holes: 1
- Length: 1.91 in
- Width: 0.59 in
- Height: 0.34 in
- Maximum Temperature: 194 degrees Fahrenheit (90 °C)
- Voltage Rating: 600V
- UL Listings: UL486A Wire Connector, UL467 Grounding & Bonding (Sizes 8 AWG - 3/0 AWG)
- Country of Origin: India
- Manufacturer Part Number: L438
- Product Weight: 2.5 lbs
Features
- Constructed from high conductivity copper tubing
- Tin-plated for corrosion resistance and low contact resistance
- Legible die index and gray color coding for easy identification
- Closed barrel design sealed against moisture and contamination
- Creates a vibration-resistant, mechanically strong connection when crimped
- Compatible with crimp tools for straightforward installation
- Listed for 35KV max when properly installed according to cable manufacturer instructions
