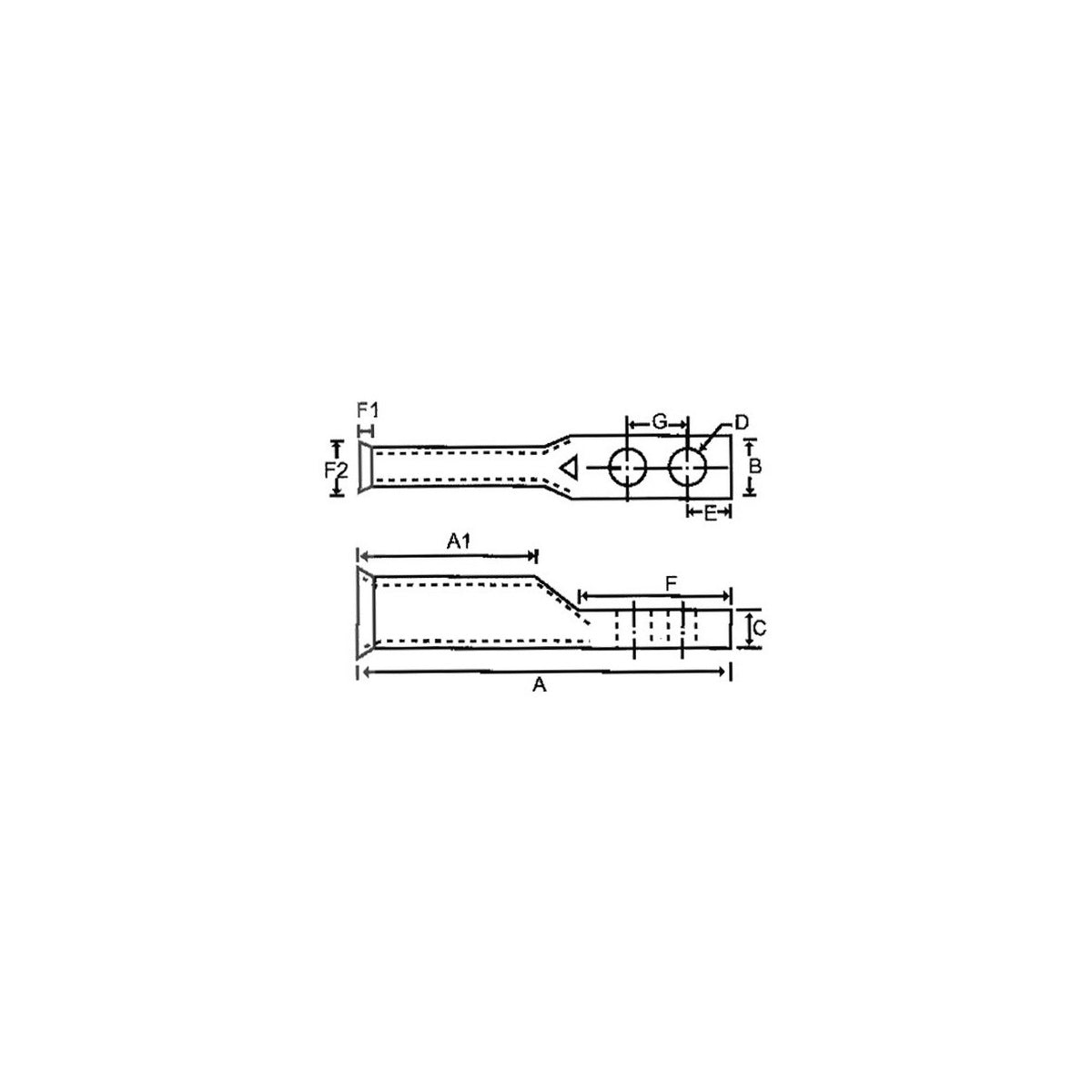

Copper Flex Cable Long Barrel 2 Hole Compression Lugs #6 Awg 1/4 Stud 3/4" Hole Spacing

This copper flex cable long barrel compression lug is designed for fast, reliable electrical cable terminations. It is suitable for use by electrical distributors and switchgear suppliers requiring high-quality wire and cable connections. The lug is constructed from high conductivity seamless electrolytic copper, making it ideal for flexible cables in lighting solutions and other electrical applications.

Specifications

• Material: High Conductivity Copper
• Wire Range: #6 AWG
• Stud Size: 1/4"
• Hole Spacing: 3/4"
• Mounting Holes: 2
• Manufacturer Part #: 94705
• Product Weight: 0.3150 lbs
• UL Listing: UL 486A, cULus Listed
• Voltage Rating: Listed for 35KV when properly installed

Features

• Flared belled entry for easy insertion of fine strand flexible cables including Class G, H, I, K (Battery), M (Welding), and DLO cable constructions
• Two mounting holes for secure attachment
• Uniform bright electro-tin plating resists corrosion, reduces contact resistance, and maximizes conductivity
• Crimp marks indicate proper crimp locations for reliable installation
• Compression lugs are marked with die index and color codes for easy identification
