Morris Products
Copper Flex Cable Long Barrel 2 Hole Compression Lugs 4/0 Awg 1/2 Stud 1-3/4" Hole Spacing
SKU: #280158
Part: #94734
UPC: 601986947343
Description
Copper Flex Cable Long Barrel 2 Hole Compression Lugs 4/0 Awg 1/2 Stud 1-3/4" Hole Spacing – Copper Compression Lugs
This Copper Flex Cable Long Barrel 2 Hole Compression Lug is designed for fast, reliable electrical cable terminations in wire and cable applications. Manufactured by Morris Products, it serves as a durable component for electrical distributors and switchgear suppliers, providing secure connections for fine strand flexible cables including Class G, H, I, K (Battery), M (Welding), and DLO cable constructions.
Specifications
- Material: High Conductivity Copper
- Wire Range: 4/0 AWG
- Stud Size: 1/2 inch
- Hole Spacing: 1-3/4 inches

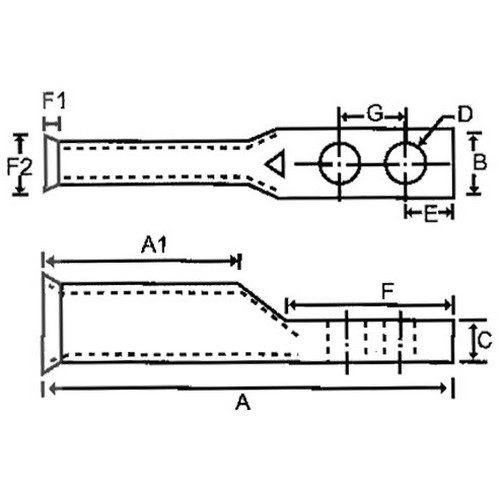

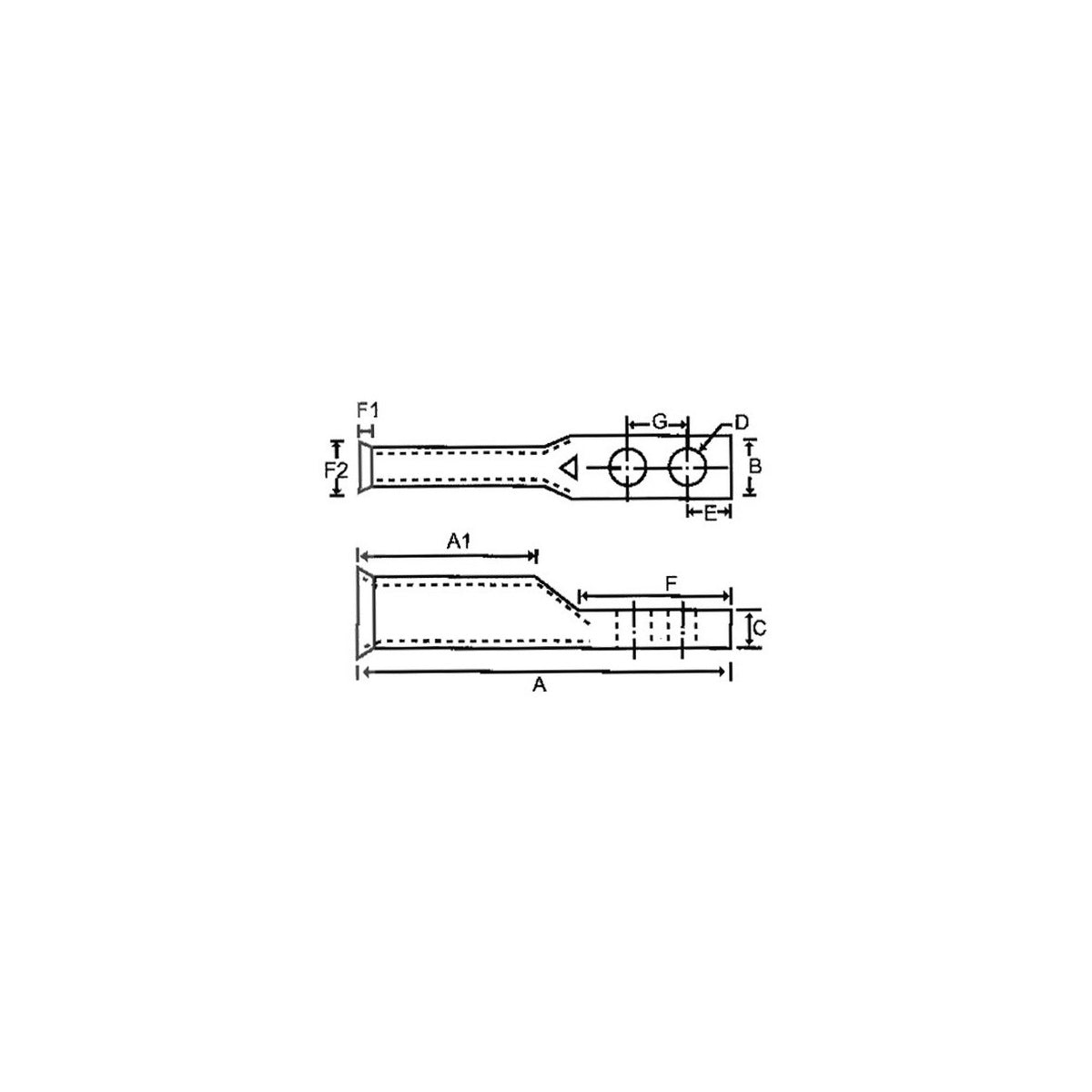

- Dimensions (inches): Length (A) 4.72, Width (B) 1.42, Thickness (C) 0.13
- Weight: 0.9450 lbs
- Manufacturer Part #: 94734
- UPC: 601986947343
- UL Listed: UL 486A, cULus Listed
- Voltage Rating: Listed for 35KV when properly installed
Features
- Flared belled entry for easy insertion of fine strand flexible cables
- Two mounting holes for secure installation
- Constructed from high-conductivity seamless electrolytic copper
- Uniform bright electro-tin plating resists corrosion and reduces contact resistance
- Crimp marks indicate proper crimp locations for reliable connections
- Marked with die index and color codes for easy identification
