Morris Products
Copper Flex Cable Long Barrel 2 Hole Compression Lugs 350 MCM 1/2 Stud 1-3/4" Hole Spacing
SKU: #280183
Part: #94739
UPC: 601986947398
Description
Copper Flex Cable Long Barrel 2 Hole Compression Lugs 350 MCM - Electrical Cable Termination
This Copper Flex Cable Long Barrel 2 Hole Compression Lug is designed for fast, reliable electrical cable terminations. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring durable and high-conductivity copper lugs for flexible cables. The lug supports 350 MCM wire size and features a 1/2" stud with 1-3/4" hole spacing, making it compatible with various wire classes including Class G, H, I, K (Battery), M (Welding), and DLO cable constructions.
Specifications
- Material: High Conductivity Copper
- Wire Range: 350 MCM
- Stud Size: 1/2 inch
- Hole Spacing: 1-3/4 inch
- Weight: 1.29 lbs
- UL Listing: UL 486A, cULus Listed
- Voltage Rating: Listed for 35KV when properly installed
- Manufacturer Part Number: 94739
- Color Code: Red
- Box Quantity: 10

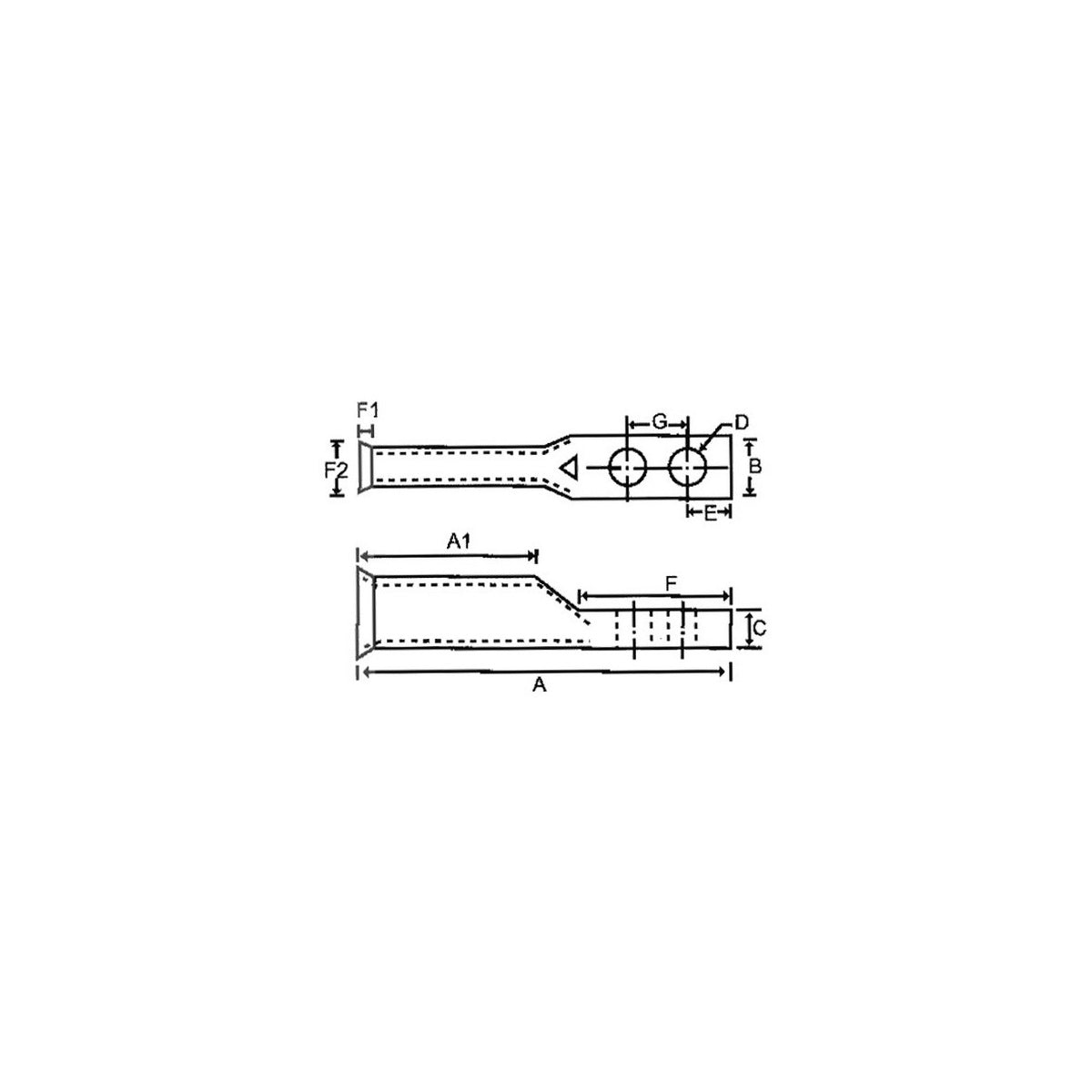

- Dimensions (inches): Length (A) 5.39, Width (B) 1.97, Thickness (C) 0.17, Hole Diameter (D) 0.41, Hole Spacing (G) 1.75
Features
- Flared belled entry for easy insertion of fine strand flexible cables
- Two mounting holes for secure cable termination
- Made from high-conductivity seamless electrolytic copper to maximize conductivity
- Uniform bright electro-tin plating resists corrosion and reduces contact resistance
- Crimp marks indicate proper crimp locations for installation accuracy
- Compression lugs are marked with die index and color codes for easy identification
