Morris Products
Copper Flex Cable Long Barrel 2 Hole Compression Lugs 2/0 Awg 1/2 Stud 1-3/4" Hole Spacing
SKU: #280131
Part: #94728
UPC: 601986947282
Morris Products
Copper Flex Cable Long Barrel 2 Hole Compression Lugs 2/0 Awg 1/2 Stud 1-3/4" Hole Spacing
SKU: #280131
Part: #94728
UPC: 601986947282
Description
Copper Flex Cable Long Barrel 2 Hole Compression Lugs – Electrical Cable Terminations
This Copper Flex Cable Long Barrel 2 Hole Compression Lug is designed for fast, reliable electrical cable terminations. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers handling wire and cable in industrial and commercial lighting solutions and power distribution applications. The lug accommodates 2/0 AWG wire size and features a 1/2" stud with 1-3/4" hole spacing, ensuring secure and efficient connections.

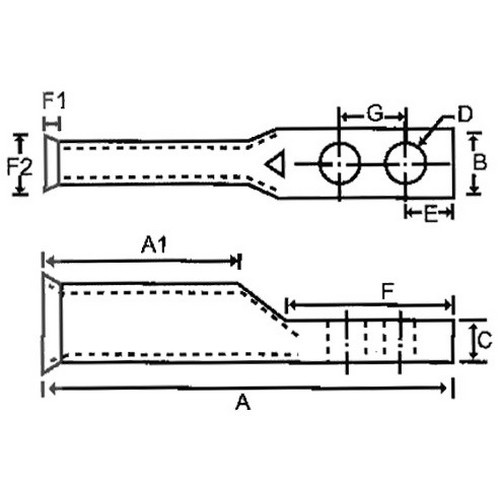

Specifications
- Material: High Conductivity Copper
- Wire Size: 2/0 AWG
- Stud Size: 1/2 inch
- Hole Spacing: 1-3/4 inches
- Product Weight: 0.87 lbs
- Manufacturer Part #: 94728
- UL Listing: UL 486A, cULus Listed
- Voltage Rating: Listed for 35KV when properly installed
Features
- Flared belled entry for easy insertion of fine strand flexible cables including Class G, H, I, K (Battery), M (Welding), and DLO cable constructions
- Two mounting holes for secure attachment
- Constructed from high-conductivity seamless electrolytic copper for optimal electrical performance
- Uniform bright electro-tin plating resists corrosion, reduces contact resistance, and maximizes conductivity
- Crimp marks indicate proper crimp locations for consistent installation quality
- Compression lugs are marked with die index and color codes for easy identification
