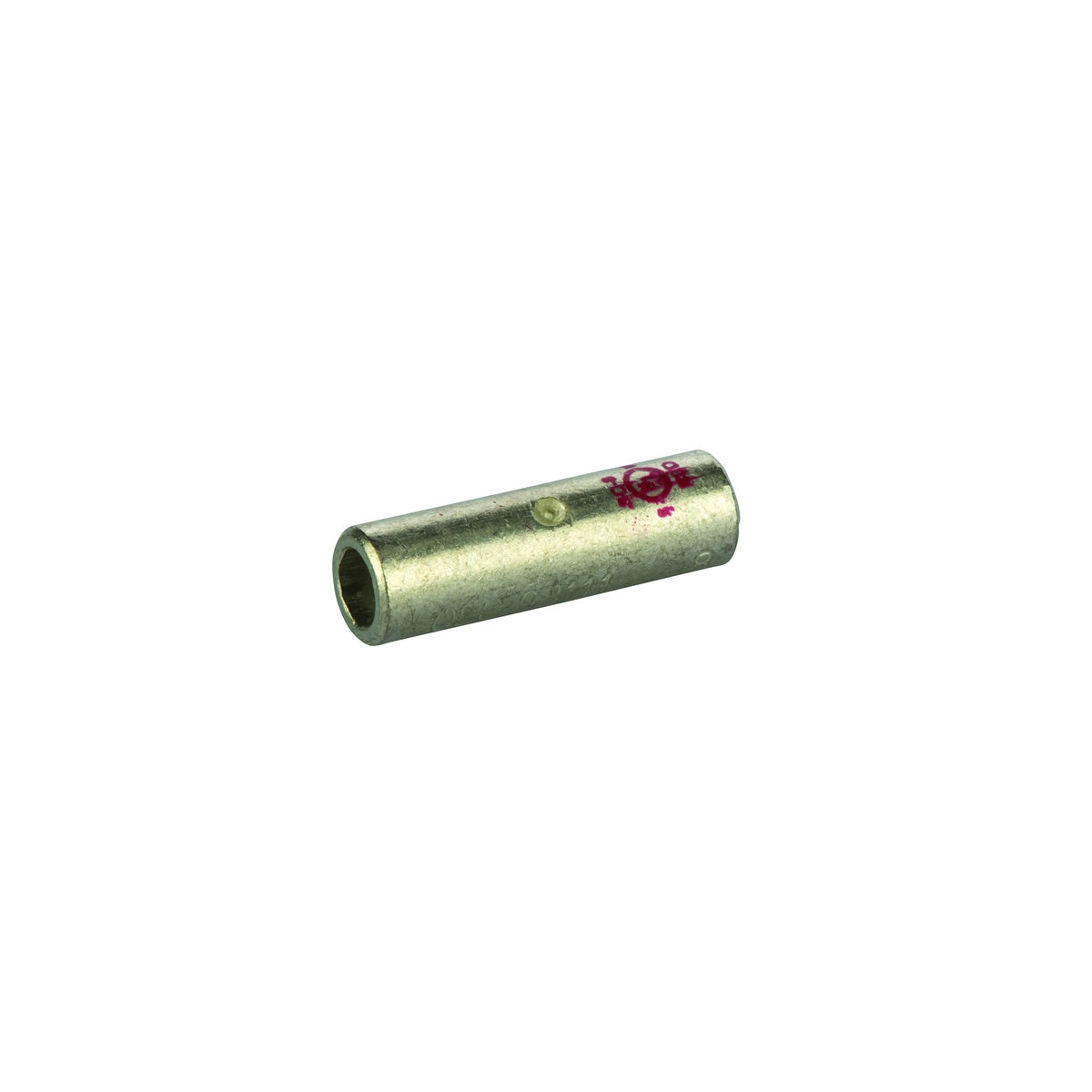

Copper Compression Splice - Short - 8 AWG Electrical Connector

This copper compression splice is designed for terminating, splicing, and tapping power connectors in electrical distribution and wire and cable applications. Manufactured by NSI Industries, it is suitable for use by electrical distributors and switchgear suppliers requiring reliable copper compression connections.

Specifications

• Material: Copper
• Finish: Tin Plated
• Conductor Range: # 8 AWG (STR)
• Number of Conductors: 2
• Voltage Rating: 600 V
• Maximum Temperature: 194 degrees Fahrenheit (90°C)
• Dimensions (L x W x H): 0.9 in x 0.27 in x 0.27 in
• Product Weight: 1.4 oz
• Color: Red
• Country of Origin: India
• Manufacturer Part #: SC-8

Features

• Constructed from high conductivity copper tubing for efficient electrical performance
• Tin-plated surface provides corrosion resistance
• Standard barrel design with die index and color coding for easy identification
• Listed for up to 35KV maximum when properly installed
