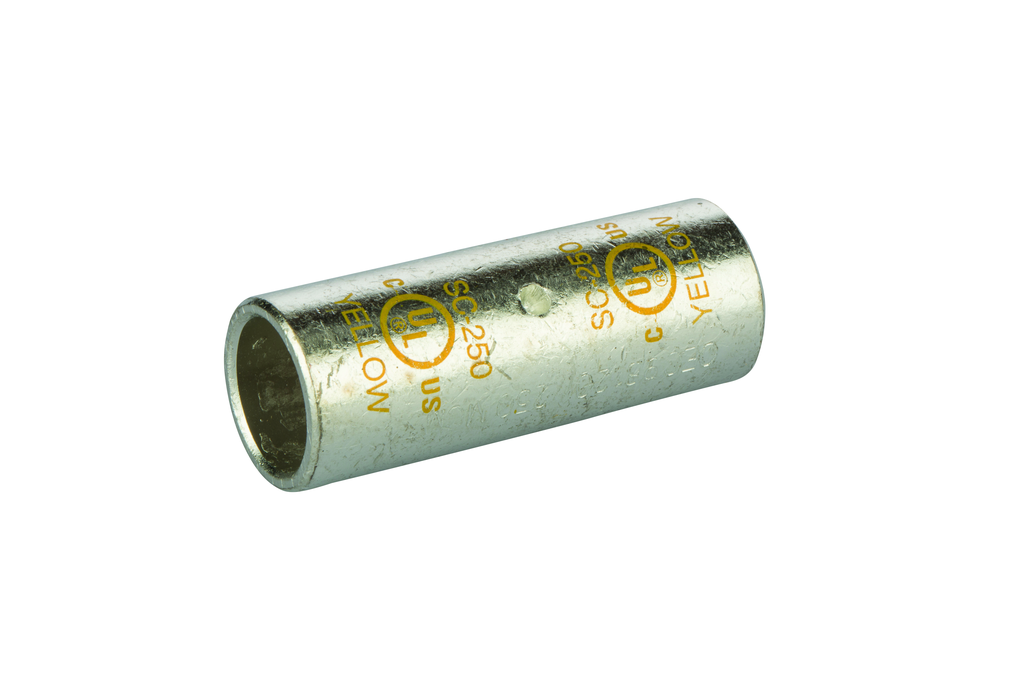

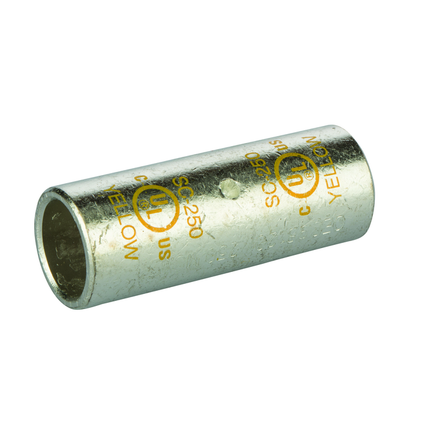

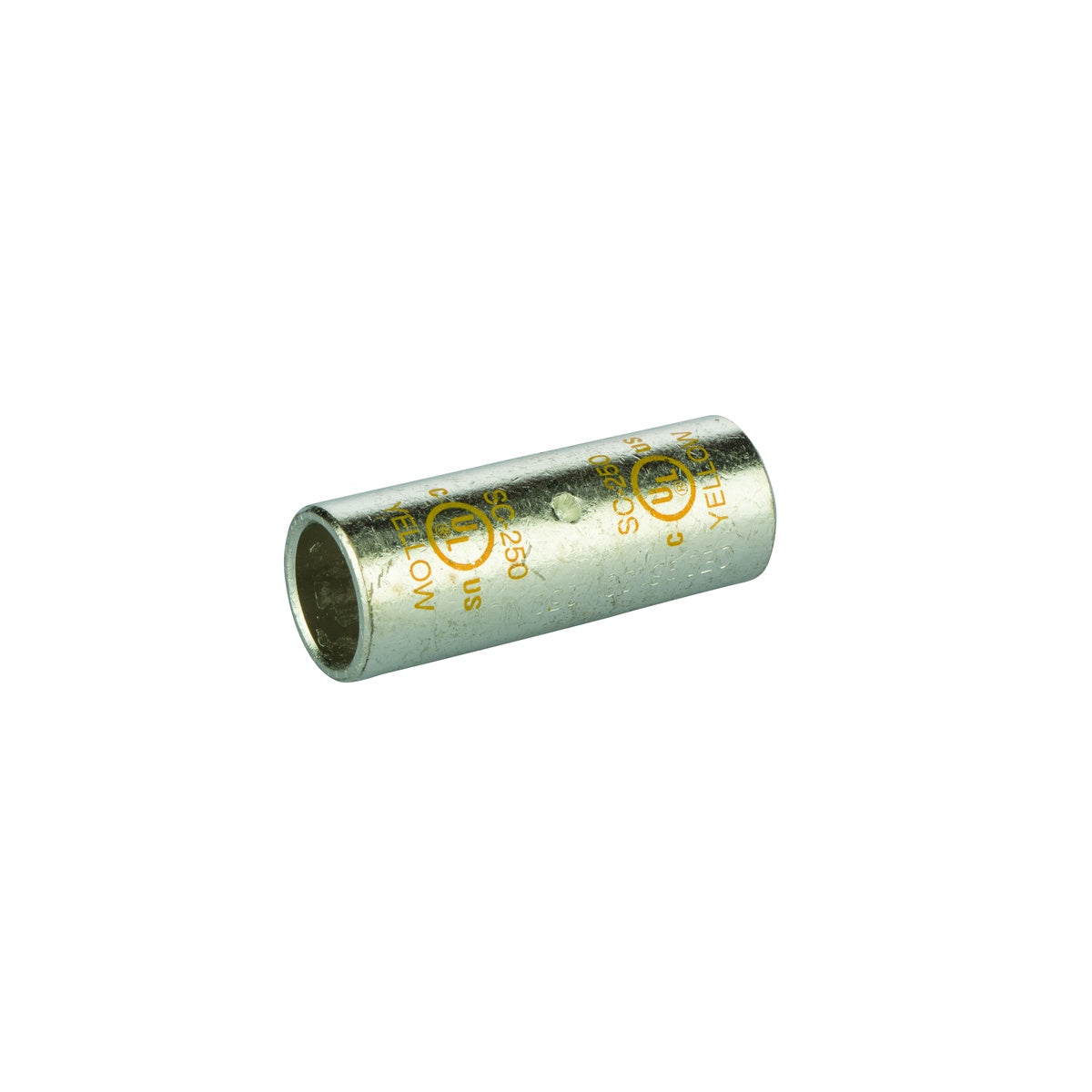

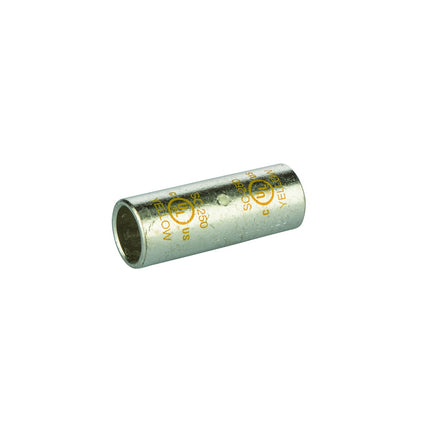

Copper Compression Splice - Short -250 MCM
SKU: #305501
Part: #SC-250
UPC: 662381037107
Copper Compression Splice - Short -250 MCM
SKU: #305501
Part: #SC-250
UPC: 662381037107
Next day delivery
Description
Copper Compression Splice - Short - 250 MCM | Copper Compression Connector
This Copper Compression Splice - Short - 250 MCM by NSI Industries is designed to terminate, splice, and tap power connectors in electrical distribution and wire and cable applications. The connector is suitable for use in lighting solutions and switchgear supplier environments where reliable copper compression connectors are required. It is tin-plated to provide corrosion resistance and marked with a die index and color coding for easy identification. The product supports voltages up to 35KV when properly installed according to cable manufacturer voltage stress relief instructions.
Specifications
- Material: Copper
- Finish: Tin-Plated
- Color: Yellow
- Length: 2 inches
- Width: 0.75 inches
- Height: 0.75 inches
- Maximum Temperature: 194 degrees Fahrenheit
- Voltage Rating: 600V max
- Application: Terminate, Splice, Tap Power Connectors
- Order Minimum: 1
- Product Weight: 3.0
- Country of Origin: India
- Manufacturer: NSI Industries
- Manufacturer Part Number: SC-250
- UL Listed: UL486A Wire Connector, UL467 Grounding & Bonding (Sizes 8 AWG - 3/0 AWG), cULus Listed 155027
Features
- Produced from high conductivity copper tubing
- Tin-plated for corrosion resistance
- Marked with die index and color coded for easy reference
- Serrations indicate proper crimp locations
- Suitable for use at voltages up to 35KV when properly installed
- Maximum voltage in bare splices is 5KV
- Class B or C building wire CU cable only
- Temperature rating: 90 °C (194 °F)
