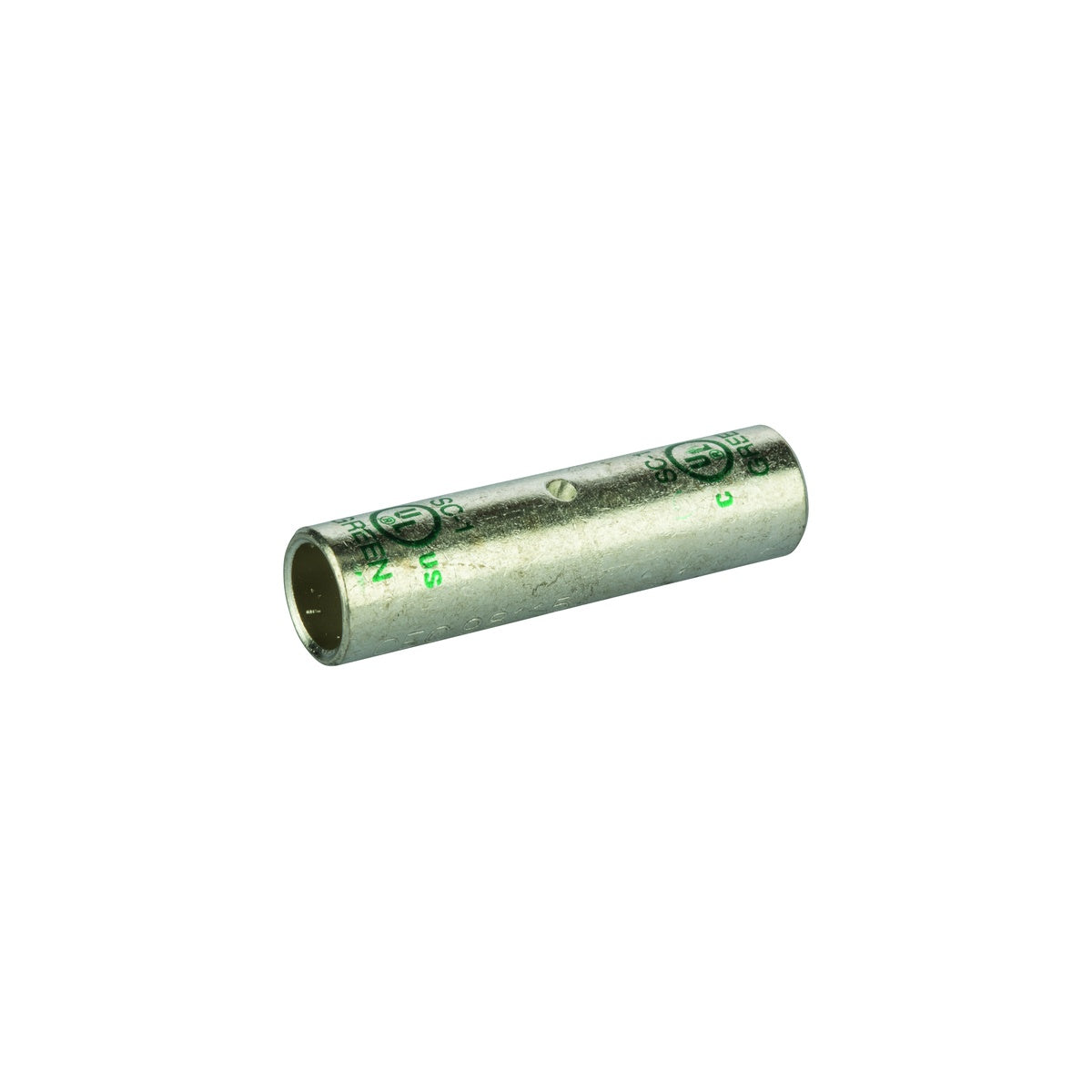

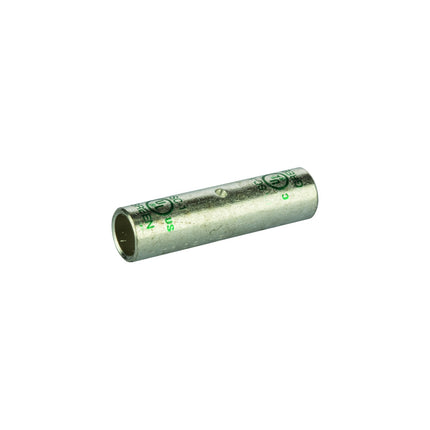

Copper Compression Splice - Short - 1 AWG
SKU: #305491
Part: #SC-1
UPC: 662381037053
Copper Compression Splice - Short - 1 AWG
SKU: #305491
Part: #SC-1
UPC: 662381037053
Description
Copper Compression Splice - Short - 1 AWG | Copper Compression Connector
This Copper Compression Splice is designed for terminating, splicing, and tapping power connectors in electrical systems. Manufactured by NSI Industries, it is suitable for use by electrical distributors and switchgear suppliers requiring reliable copper compression connectors. The product is tin-plated for corrosion resistance and marked with die index and color coding for easy identification. It supports conductor sizes of 1 AWG stranded wire and is rated for use up to 35KV when installed according to cable manufacturer voltage stress relief instructions.
Specifications
- Manufacturer Part #: SC-1
- Material: Copper
- Finish: Tin Plated
- Color: Green
- Conductor Range: # 1 AWG (STR)
- Number of Conductors: 2
- Number of Poles: 1
- Dimensions: 1.8 inches (Length) x 0.47 inches (Width) x 0.47 inches (Height)
- Max. Temperature: 194 degrees Fahrenheit
- Voltage Rating: 600V max
- UL Listings: UL486A Wire Connector, UL467 Grounding & Bonding (Sizes 8 AWG - 3/0 AWG), cULus Listed 155027
- Country of Origin: India
- Product Weight: 2.6 oz
Features
- Produced from high conductivity copper tubing
- Tin-plated to provide corrosion resistance
- Marked with die index and color coded for easy reference
- Serrations indicate proper crimp locations
- Suitable for use at voltages up to 35KV with proper installation
- 5KV maximum voltage in all bare splices
