Copper Compression Splice - Long - 3/0 AWG
SKU: #303850
Part: #C-3/0
UPC: 662381037572
Copper Compression Splice - Long - 3/0 AWG
SKU: #303850
Part: #C-3/0
UPC: 662381037572
Description

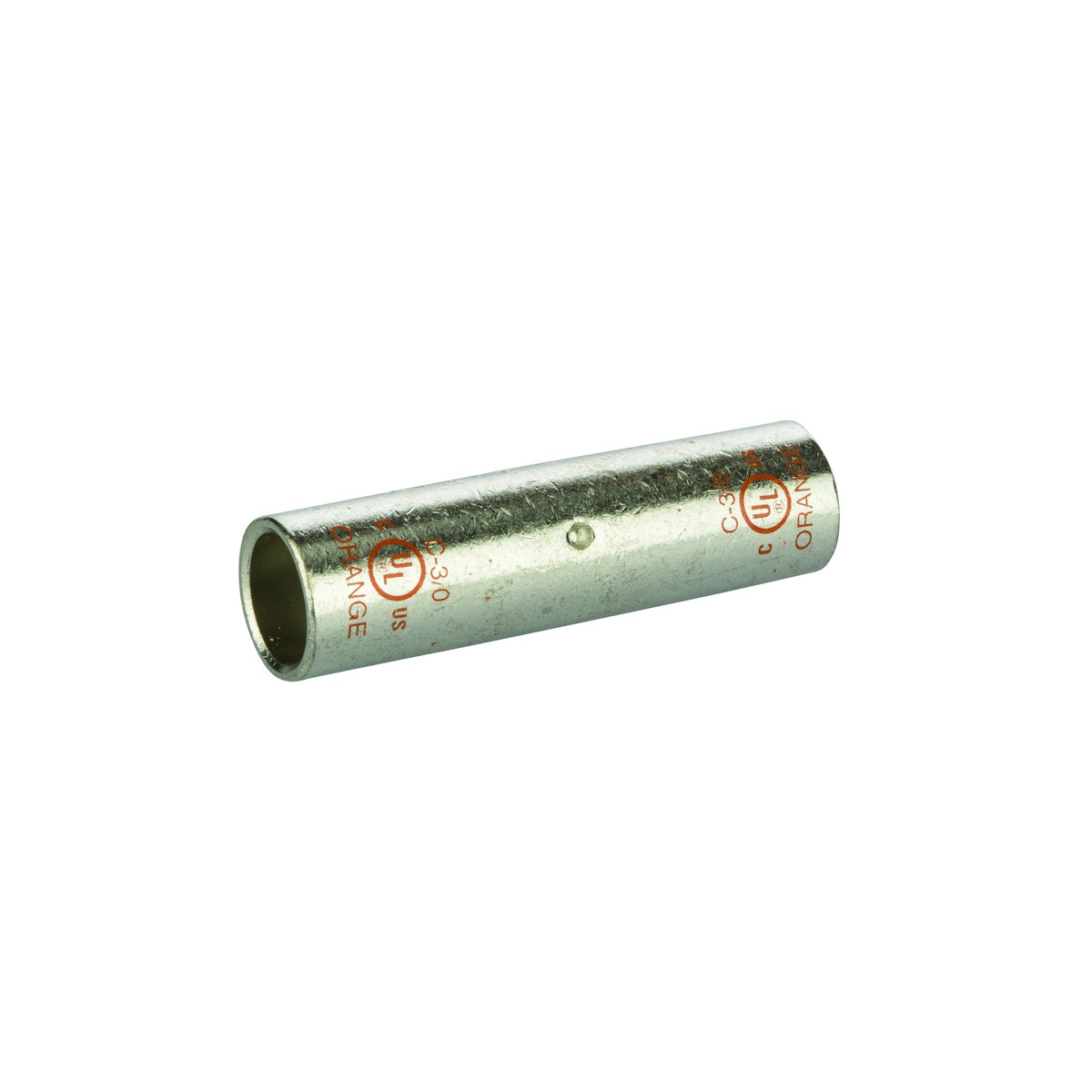

Copper Compression Splice - Long - 3/0 AWG Electrical Connector
This copper compression splice is designed for terminating, splicing, and tapping power connectors in electrical distribution and lighting solutions. Manufactured by NSI Industries, it is suitable for use in wire and cable applications requiring reliable electrical connections. The product is tin-plated for corrosion resistance and color-coded for easy identification, making it a practical choice for switchgear suppliers and electrical distributors handling 3/0 AWG copper conductors.
Specifications
- Material: Copper
- Finish: Tin Plated
- Color: Orange
- Length: 2.25 inches
- Width: 0.62 inches
- Height: 0.62 inches
- Number of Conductors: 2
- Number of Poles: 1
- Maximum Temperature: 194 degrees Fahrenheit
- Environmental Conditions: 90 °C
- Voltage Rating: 600V max
- Maximum Voltage: 35KV (when properly installed)
- Order Minimum: 1
- Product Weight: 3.75 (units not specified)
- Country of Origin: India
- Manufacturer: NSI Industries
- Manufacturer Part Number: C-3/0
Features
- Produced from high conductivity copper tubing
- Tin-plated to provide corrosion resistance
- Marked with die index and color coded for easy reference
- Serrations indicate proper crimp locations
- UL486A listed wire connector and UL467 grounding & bonding approved
- Suitable for use at voltages up to 35KV when installed according to cable manufacturer voltage stress relief instructions
- Maximum voltage in all bare splices is 5KV
