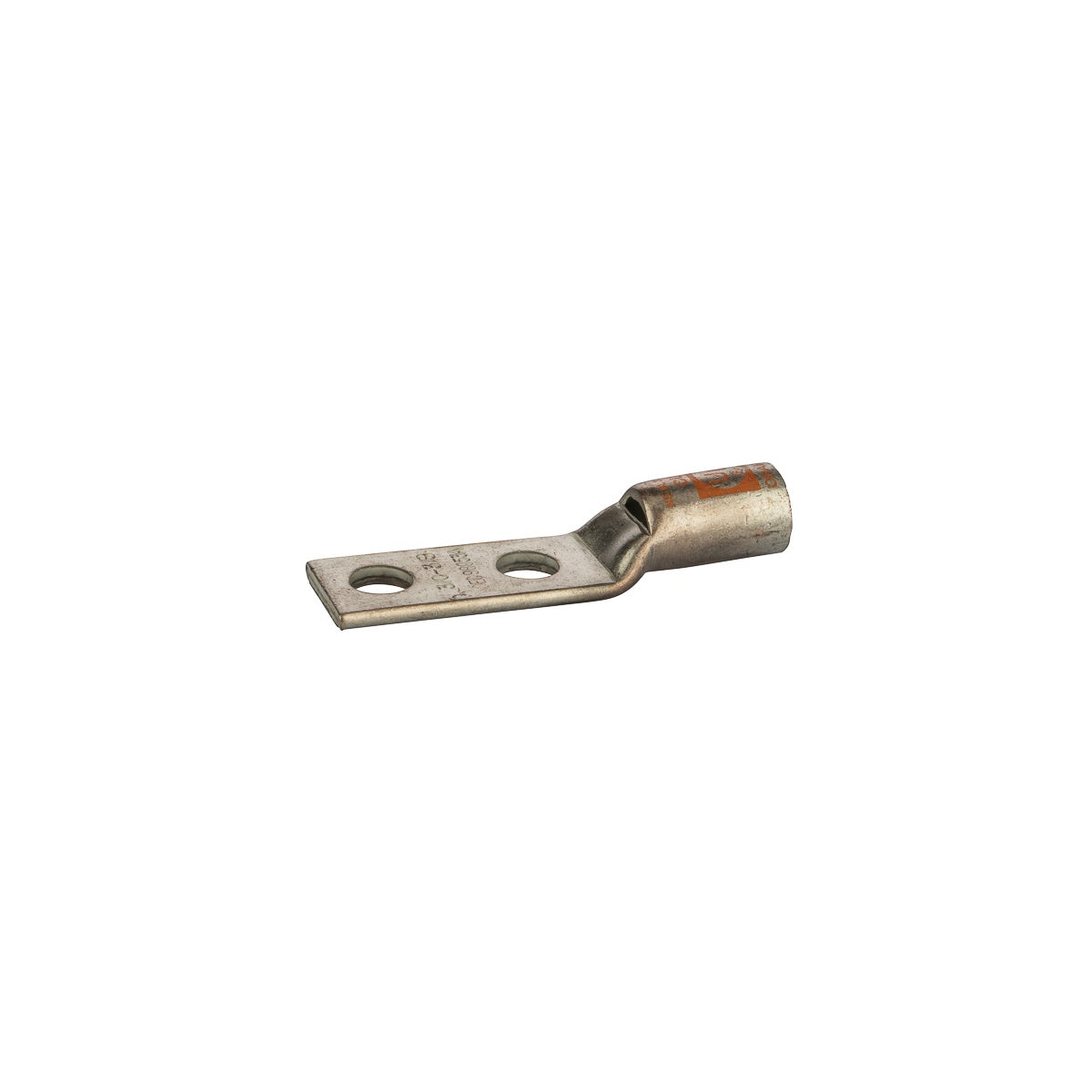

Copper Compression Lug Short 3/0 AWG
SKU: #304038
Part: #GL30N-38
UPC: 662381338204
Copper Compression Lug Short 3/0 AWG
SKU: #304038
Part: #GL30N-38
UPC: 662381338204
Description
Specifications
- Brand Name: NSi
- Category: Copper Compression
- Application: Terminate, Splice, Tap Power Connectors
- Type: Short Barrel - Two Hole
- Cable Size: 3/0 AWG (STR)
- Stud Size: 3/8
- Material: Copper
- Size: L=3.11 - W=.900 - OD=.620 - W=.490
- Color: Orange
- Environmental Conditions: 90 C
- Mounting: 3/8 Mounting Holes
- Number Of Holes: 2
- Standard: UL486
- Voltage Rating: 600 V
Downloads
Catalog PageTechnical Drawing
