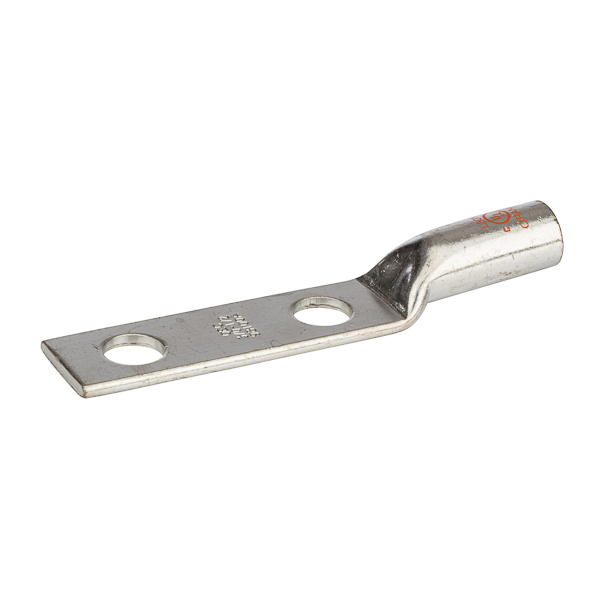

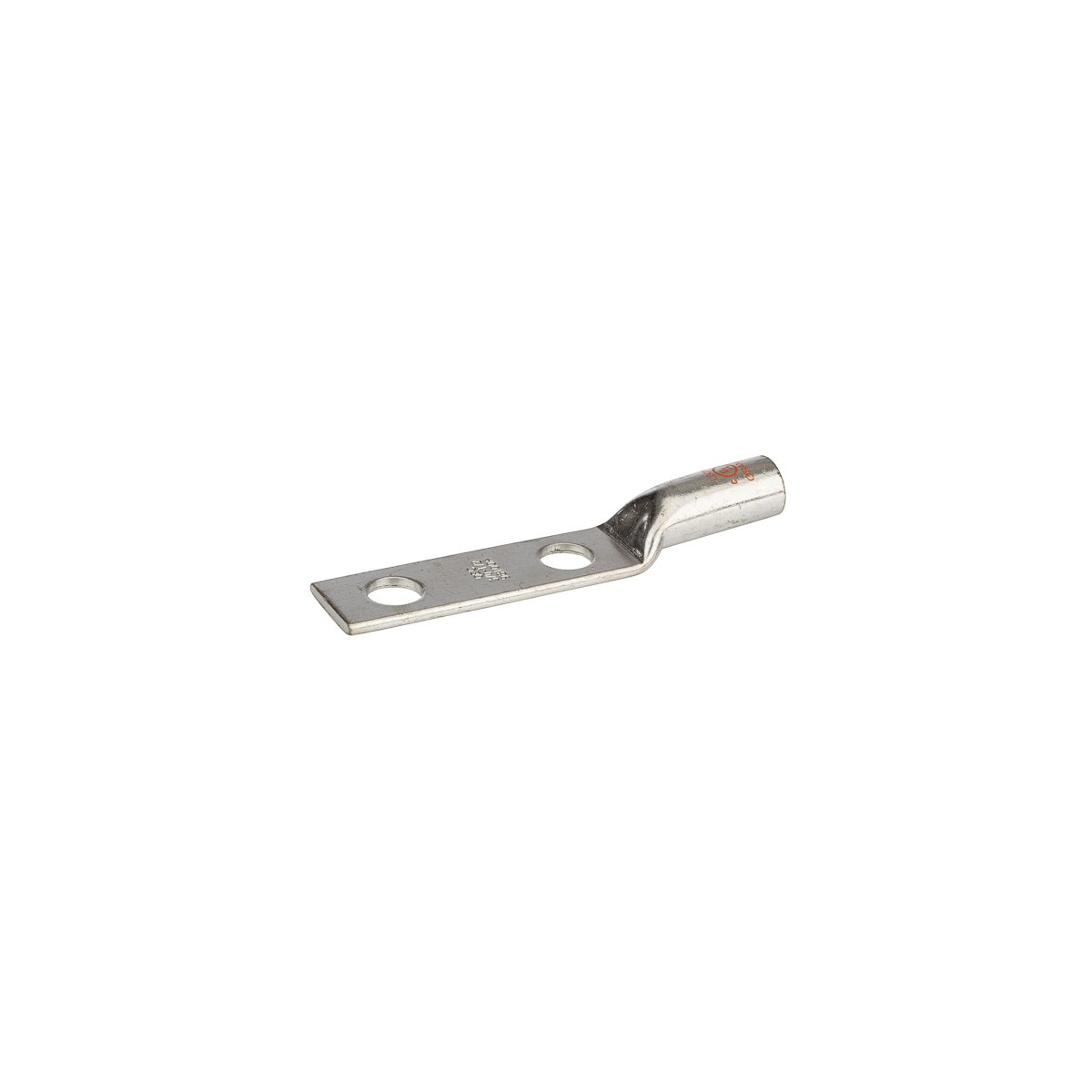

Copper Compression Lug Long 3/0 AWG – Compression Connector

This Copper Compression Lug is designed for terminating, splicing, and tapping power connectors in electrical distribution and wire and cable applications. Manufactured by NSI Industries, it serves as a reliable component for electrical distributors and switchgear suppliers requiring durable copper lugs for secure cable connections. The lug is suitable for 3/0 AWG stranded copper conductors and is color-coded orange for easy identification.

Specifications

• Material: Copper
• Cable Size: 3/0 AWG (STR)
• Mounting: 1/2" Mounting Holes
• Number of Holes: 2
• Color: Orange
• Dimensions (L x W x H): 4.65 in x 0.9 in x 0.62 in
• Product Weight: 4.0 lbs
• Environmental Conditions: Rated for 90°C
• Manufacturer Part #: L30N
• Voltage Rating: 600V
• UL Listings: UL486A Wire Connector, UL467 Grounding & Bonding (sizes 8 AWG - 3/0 AWG)

Features

• Produced from high conductivity copper tubing to ensure optimal electrical performance
• Allows easy inspection of cable insertion for secure terminations
• Tin-plated surface provides corrosion resistance and low contact resistance
• Marked with die index and color coded for quick identification
• Listed for 35KV maximum when properly installed
• Part numbers ending in “P” include a peep or sight inspection hole for visual verification
