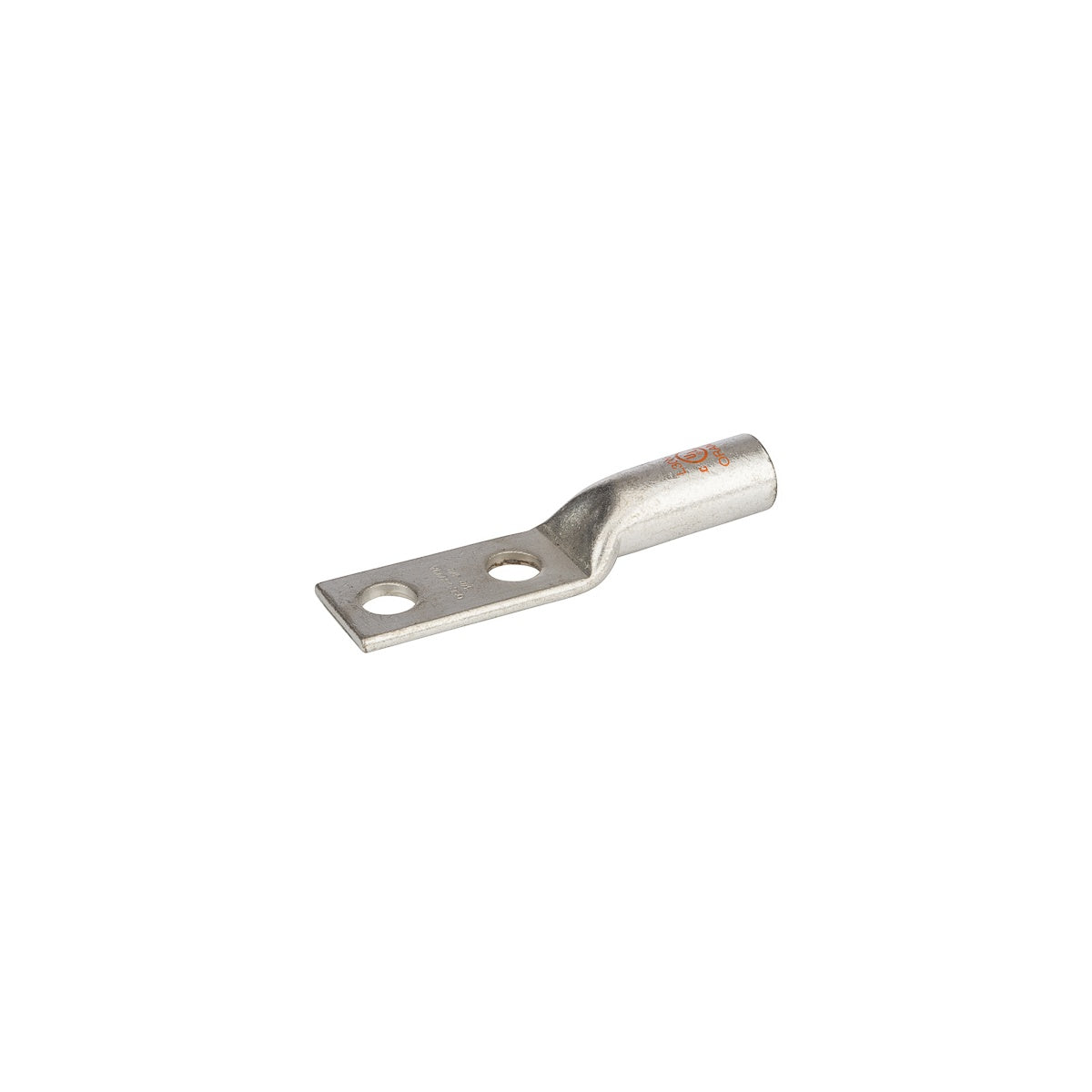

Copper Compression Lug Long 3/0 AWG
SKU: #305304
Part: #L30N-38
UPC: 662381339171
Copper Compression Lug Long 3/0 AWG
SKU: #305304
Part: #L30N-38
UPC: 662381339171
Description
Copper Compression Lug Long 3/0 AWG – Compression Connector
This Copper Compression Lug is designed for terminating, splicing, and tapping power connectors in electrical distribution and wiring applications. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable copper lugs for wire and cable connections. The lug is constructed from high conductivity copper, ensuring optimal electrical performance and durability in lighting solutions and power systems.
Specifications
- Name: Copper Compression Lug Long 3/0 AWG
- Manufacturer: NSI Industries
- Manufacturer Part #: L30N-38
- Cable Size: 3/0 AWG (STR)
- Material: Copper
- Color: Orange
- Application: Terminate, Splice, Tap Power Connectors
- Mounting: 3/8 Mounting Holes
- Number of Holes: 2
- Dimensions (L x W x H): 3.5 in x 0.9 in x 0.62 in
- Product Weight: 4.0 oz
- Environmental Conditions: 90 °C Temperature Rating
- Voltage Rating: 600V
- UL Listings: UL486A Listed Wire Connector, UL467 Grounding & Bonding (sizes 8 AWG - 3/0 AWG)
Features
- Produced from high conductivity copper tubing
- Allows easy inspection of cable insertion for complete termination
- Tin-plated for corrosion resistance and low contact resistance
- Marked with die index and color coded for identification
- Listed for 35KV maximum when properly installed
- Part numbers ending in “P” include a sight inspection hole for verification
