Copper Compression Lug Long 2 AWG
SKU: #305284
Part: #L2N-383
UPC: 662381335807
Copper Compression Lug Long 2 AWG
SKU: #305284
Part: #L2N-383
UPC: 662381335807
Description

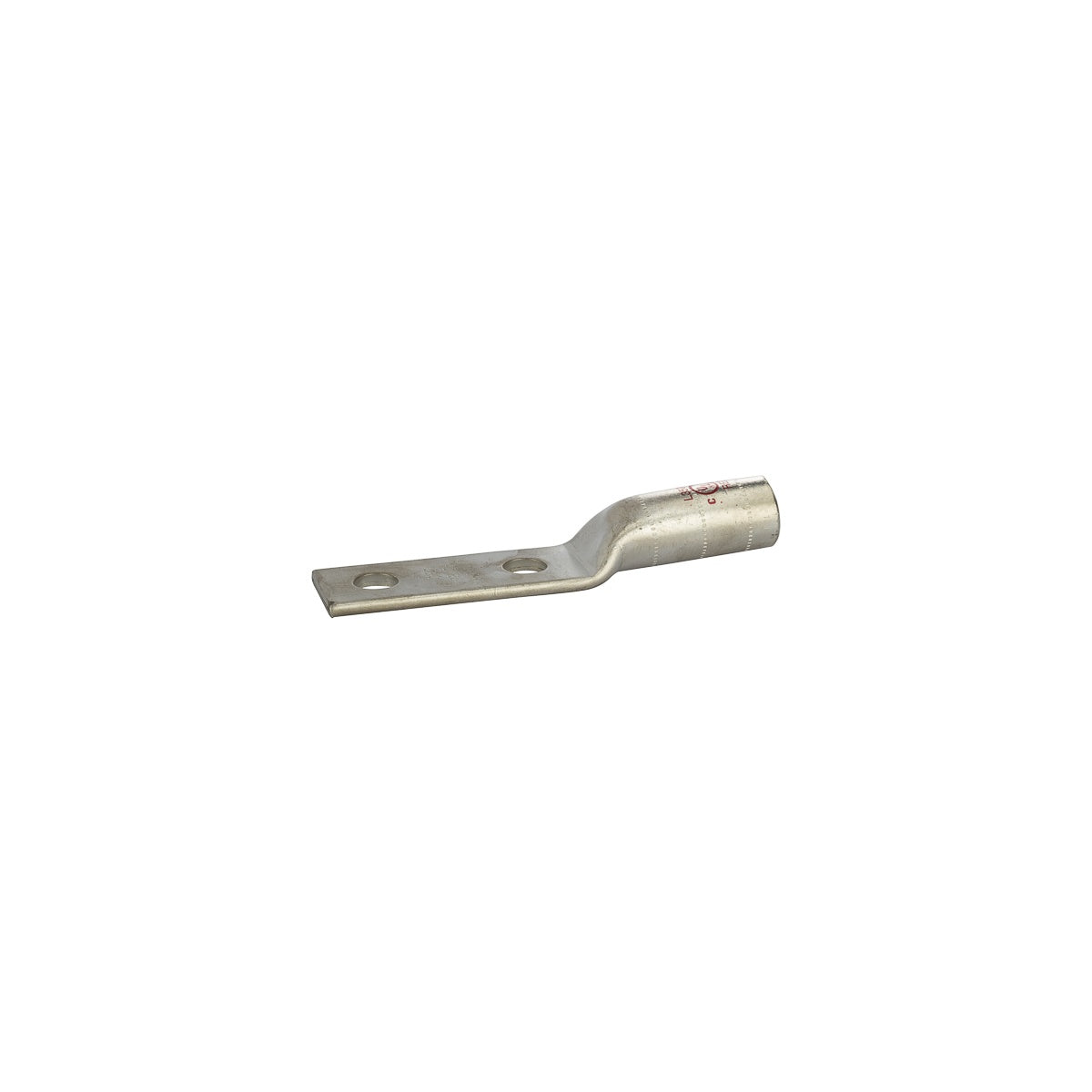

Copper Compression Lug Long 2 AWG – Electrical Connector
This Copper Compression Lug Long 2 AWG is designed for terminating, splicing, and tapping power connectors in electrical distribution and wire and cable applications. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable copper lugs with long barrel design and multiple mounting holes for secure installation.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: L2N-383
- Application: Terminate, Splice, Tap Power Connectors
- Cable Size: #2 AWG (STR)
- Material: Copper
- Color: Brown
- Product Weight: 4.5 lbs
- Length: 4.25 in
- Width: 0.81 in
- Height: 0.42 in
- Mounting: 3/8 in Mounting Holes
- Number of Holes: 2
- Environmental Conditions: 90 °C Temperature Rating
- Stud Size: 3/8 in
- Voltage Rating: 600V (per UL486A listing)
- UL Listings: UL486A Wire Connector, UL467 Grounding & Bonding (8 AWG - 3/0 AWG)
Features
- Constructed from high conductivity copper tubing for optimal electrical performance
- Tin-plated long barrel design provides corrosion resistance and low contact resistance
- Two mounting holes with NEMA 1 3/4 inch spacing for secure installation
- Allows easy inspection of cable termination to ensure complete insertion
- Color coded and marked with die index for identification
- Listed for 35KV maximum voltage when properly installed
- Part numbers ending with “P” include a peep or sight inspection hole
