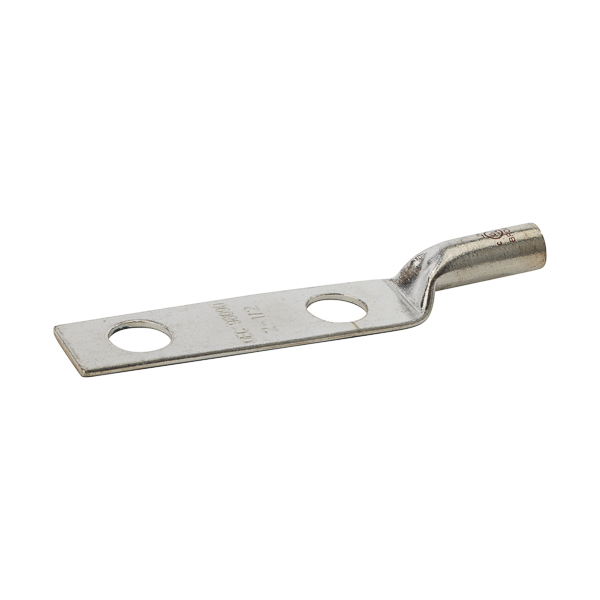

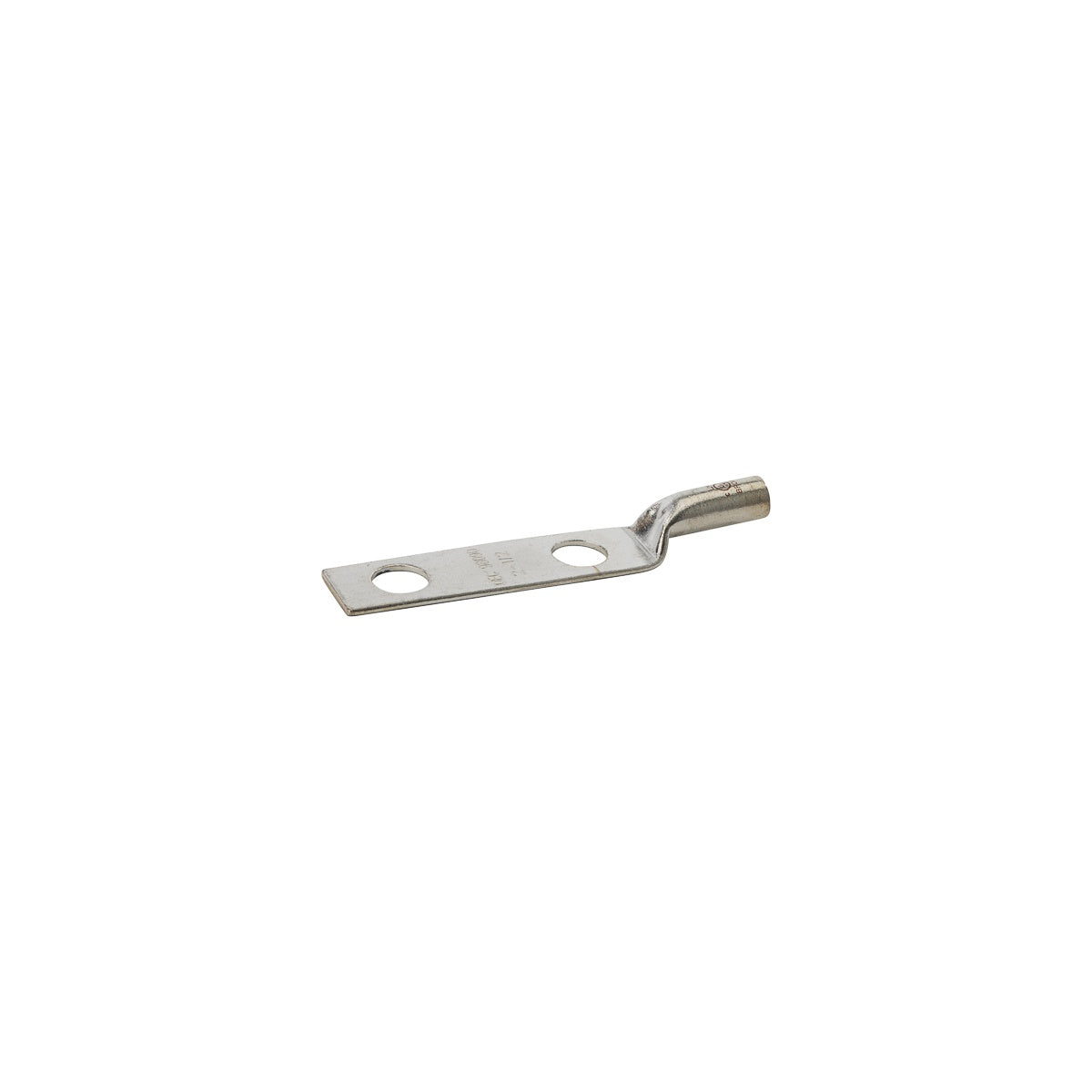

Copper Compression Lug Long 2 AWG – Electrical Wire Connector

The Copper Compression Lug Long 2 AWG by NSI Industries is designed for terminating, splicing, and tapping power connectors. This long barrel, two-hole lug is suitable for electrical distributors and switchgear suppliers requiring reliable copper compression connectors for wire and cable applications. Its construction and specifications make it ideal for use in lighting solutions and power distribution systems where secure and efficient cable termination is essential.

Specifications

• Material: Copper
• Color: Brown
• Cable Size: #2 AWG (STR)
• Mounting: 1/2" Mounting Holes
• Number of Holes: 2
• Dimensions (L x W x H): 4.25 in x 0.81 in x 0.42 in
• Product Weight: 4.5 lbs
• Application: Terminate, Splice, Tap Power Connectors
• Environmental Conditions: 90 °C Temperature Rating
• Manufacturer Part #: L2N
• Voltage Rating: 600V (per UL486A Listed Wire Connector specification)
• UL Listings: UL486A Wire Connector, UL467 Grounding & Bonding (sizes 8 AWG - 3/0 AWG)

Features

• Produced from high conductivity copper tubing for optimal electrical performance
• Long barrel design allows easy inspection of termination to ensure complete cable insertion
• Tin-plated finish provides corrosion resistance and low contact resistance
• Color-coded and marked with die index for easy identification
• Listed for 35KV maximum voltage when properly installed
• Part numbers ending in “P” include a “peep” or sight inspection hole for enhanced verification
• Suitable for use with copper building wire, class B or C only
