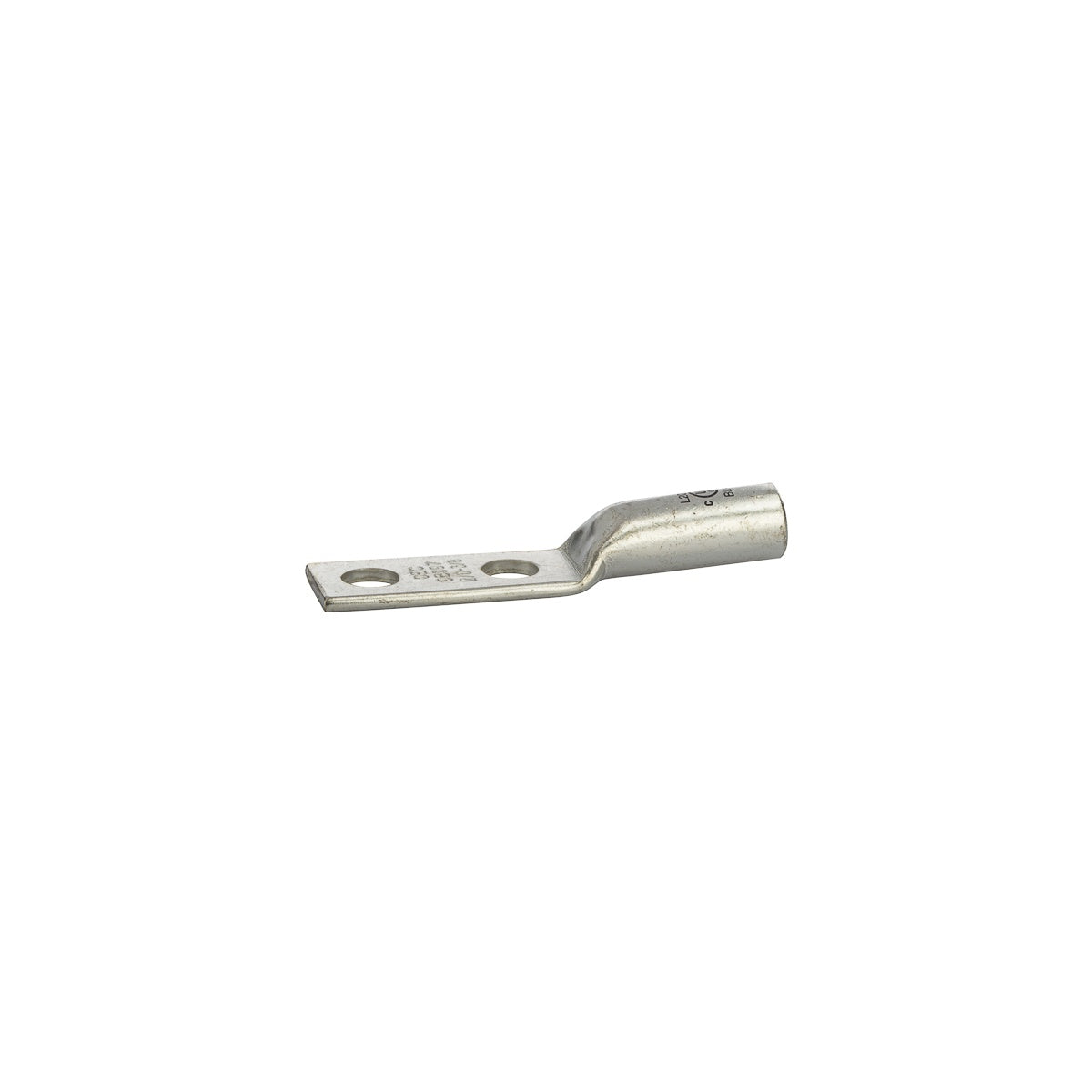

Copper Compression Lug Long 2/0 AWG – Copper Compression Lug

This Copper Compression Lug Long 2/0 AWG is designed for terminating, splicing, and tapping power connectors in electrical distribution and wire and cable applications. Manufactured by NSI Industries, it serves as a reliable component for electrical distributors and switchgear suppliers requiring durable copper connectors. The lug is suitable for use in lighting solutions and other electrical systems requiring secure, corrosion-resistant cable terminations.

Specifications

• Material: Copper
• Cable Size: 2/0 AWG (STR)
• Color: Black
• Mounting: 3/8 Mounting Holes
• Number of Holes: 2
• Bolt Size: 3/8" (from mounting hole size and spacing)
• Mounting Hole Spacing: 1" (25.40 mm)
• Length: 3.43 in
• Width: 0.81 in
• Height: 0.56 in
• Product Weight: 3.75 oz
• Environmental Conditions: 90 °C temperature rating
• Voltage Rating: 600V
• UL Listings: UL486A Wire Connector, UL467 Grounding & Bonding (sizes 8 AWG - 3/0 AWG)
• Manufacturer Part #: L20N-38

Features

• Produced from high conductivity copper tubing for optimal electrical performance
• Tin-plated to provide corrosion resistance and low contact resistance
• Allows easy inspection of cable termination to ensure complete cable insertion
• Marked with die index and color-coded for quick identification
• Listed for 35KV maximum when properly installed
• Designed for Class B or C building wire copper cable only
• Includes two mounting holes for secure attachment
