Features

• Accommodates A Wide Range Of Run/Tap Copper Cable Combinations Including Both Flexible And Code Combinations. All (B/B, B/I, I/B, I/I) Combinations Acceptable: Each Connector Has Many Copper Cable Combination Applications Allowing Maximum Flexibility For The Design And Installation Of A System, Tap Grooves Function Independently From Each Other, Use Of One Tap Is Required, Balance May Be Used Or Left Empty: Provides Maximum Design And Installation Flexibility, Color Code On The Connector Matches Installation Die: Provides Matched System For Fast And Easy Installation, Die Index Embossed On Connector After Completion Of Crimp: Permanent Inspectability Of Installed Connectors To Ensure Consistently Reliable And Dependable Connections, Insulation Is Not Provided, Insulation Can Be Obtained From Raychem (800-272- 9243) Type HVSY Splice Kits For 15 KV Installations: A Complete IEEE 404 15 KV Installation Is Provided, Use PUADP-1 Adaptor With U Dies In Y46, The Y46 And P Dies Result In A Smooth Crimp Surface And Is Recommended For Voltages Above 600 V, Die Index: 1104 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Y750 Tool, U1104 Die, (4), Y46 Tool, U1104 Die With PUADP-1 Adapter, (4), P1104 Die, (2), Wire Strip Length: 1-1/2 IN, Ground Rod Size: 3/4 IN, Color Code: Brown, Conductor Type: Run: Ground Rod, Copper, Tap1: Copper Wire, Tap2: Copper Wire, Tap3: Copper Wire, Shape: H, Conductor Size (run - Range): Commercial Cable: 4/0 AWG - 400 KCMIL, Conductor Size (tap Range): Tap1: 1/0 - 3/0 AWG, Tap2: 4 - 1 AWG, Tap3: 14 - 8 AWG

Specifications

• Country of Origin: United States
• Buy American Compliant: Yes
• Conductor - Copper Flex G Run: 4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
• Conductor - Copper Flex G Run Range: 4/0 AWG-500 kcmil
• Conductor - Copper Flex G Tap: 1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
• Conductor - Copper Flex G Tap Range: 1/0 AWG-250 kcmil
• Conductor - Copper Flex H Run: 4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
• Conductor - Copper Flex H Run Range: 4/0 AWG-500 kcmil
• Conductor - Copper Flex H Tap: 1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
• Conductor - Copper Flex H Tap Range: 1/0 AWG-250 kcmil
• Conductor - Copper Str Run: 4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
• Conductor - Copper Str Run Range: 4/0 AWG-500 kcmil
• Conductor - Copper Str Tap: 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
• Conductor - Copper Str Tap Range: 1/0 -250 kcmil
• Dimension - Height inch: 2.23 in
• Dimension - Length Overall inch: 3.00 in
• Dimension - Strip Length inch: 1 1/2
• Dimension - Width inch: 1.31 in
• Dimension - Width mm: 33 mm
• Width: 1.31 in
• Each - Width: 1.31 in
• Plated: Y
• Plating Type: Tin
• Product Type: Compression
• Standards - RoHS Compliance Status: CM
• Trade Name: CRIMPIT™
• Application: For High Voltage (15 KV) Power Cables With Copper Conductors
• Special Features: Features: Accommodates A Wide Range Of Run/Tap Copper Cable Combinations Including Both Flexible And Code Combinations. All (B/B, B/I, I/B, I/I) Combinations Acceptable: Each Connector Has Many Copper Cable Combination Applications Allowing Maximum Flexibility For The Design And Installation Of A System, Tap Grooves Function Independently From Each Other, Use Of One Tap Is Required, Balance May Be Used Or Left Empty: Provides Maximum Design And Installation Flexibility, Color Code On The Connector Matches Installation Die: Provides Matched System For Fast And Easy Installation, Die Index Embossed On Connector After Completion Of Crimp: Permanent Inspectability Of Installed Connectors To Ensure Consistently Reliable And Dependable Connections, Insulation Is Not Provided, Insulation Can Be Obtained From Raychem (800-272- 9243) Type HVSY Splice Kits For 15 KV Installations: A Complete IEEE 404 15 KV Installation Is Provided, Use PUADP-1 Adaptor With U Dies In Y46, The Y46 And P Dies Result In A Smooth Crimp Surface And Is Recommended For Voltages Above 600 V, Die Index: 1104 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Y750 Tool, U1104 Die, (4), Y46 Tool, U1104 Die With PUADP-1 Adapter, (4), P1104 Die, (2), Wire Strip Length: 1-1/2 IN, Ground Rod Size: 3/4 IN, Color Code: Brown, Conductor Type: Run: Ground Rod, Copper, Tap1: Copper Wire, Tap2: Copper Wire, Tap3: Copper Wire, Shape: H, Conductor Size (run - Range): Commercial Cable: 4/0 AWG - 400 KCMIL, Conductor Size (tap Range): Tap1: 1/0 - 3/0 AWG, Tap2: 4 - 1 AWG, Tap3: 14 - 8 AWG
• Sub Brand: CRIMPIT
• Type: Taps

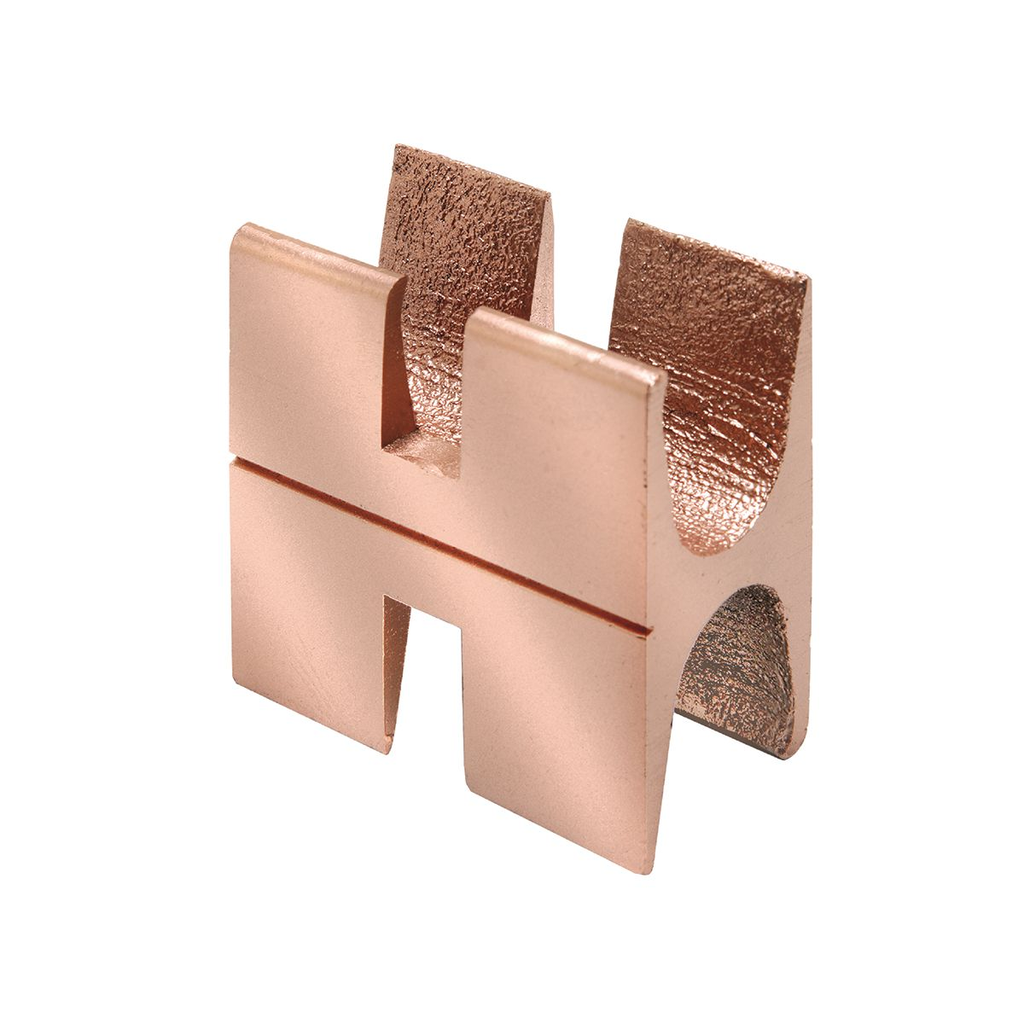

• Connector Type: H-Tap
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B42
• Description - Invoice: 500-4/0 250-1/0 1-6 8-14
• Freight Class Code: 16027000
• Harmonization Code: 8535908040
• Image Actual Or Representative: A
• Lead Time: 11 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B42BI3F
• Die Index: 1104
• UL Listed: No
• Color Code: Brown
• Material: Copper
• Base Unit of Measure: EA
• BOX SIZE: 6.750x9.688x7.753 (in)
• Carton - Gross Weight per Pack: 21.400 lb.
• Carton - Number of Sub Packs: 20
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810038406
• Carton - Total Units: 20
• Case - SCC-14 Next Lower Level Sub Pack: 30781810038407
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 21.4 lb.
• Package - GTIN - Package: 30781810038407
• Package - Number of Sub Packs: 20
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810038406
• Package - Total Units: 20 EA
• Package Height: 6.13 in
• Package Length: 9.38 in
• Package Quantity: 20 EA
• Package Weight: 21.4 lb.
• Package Width: 7.44 in
• Pallet - GTIN - Package: 70781810038405
• Pallet Height: 46.250 in
• Pallet Length: 48.000 in
• Pallet Weight: 2099.400 lb.
• Pallet Width: 40.000 in
• Standard Package Quantity: 20

Certifications

• CSA Approved: No
• cULus: No
• ETL: No
• UL Recognized: No
• EU RoHS Indicator: Yes
