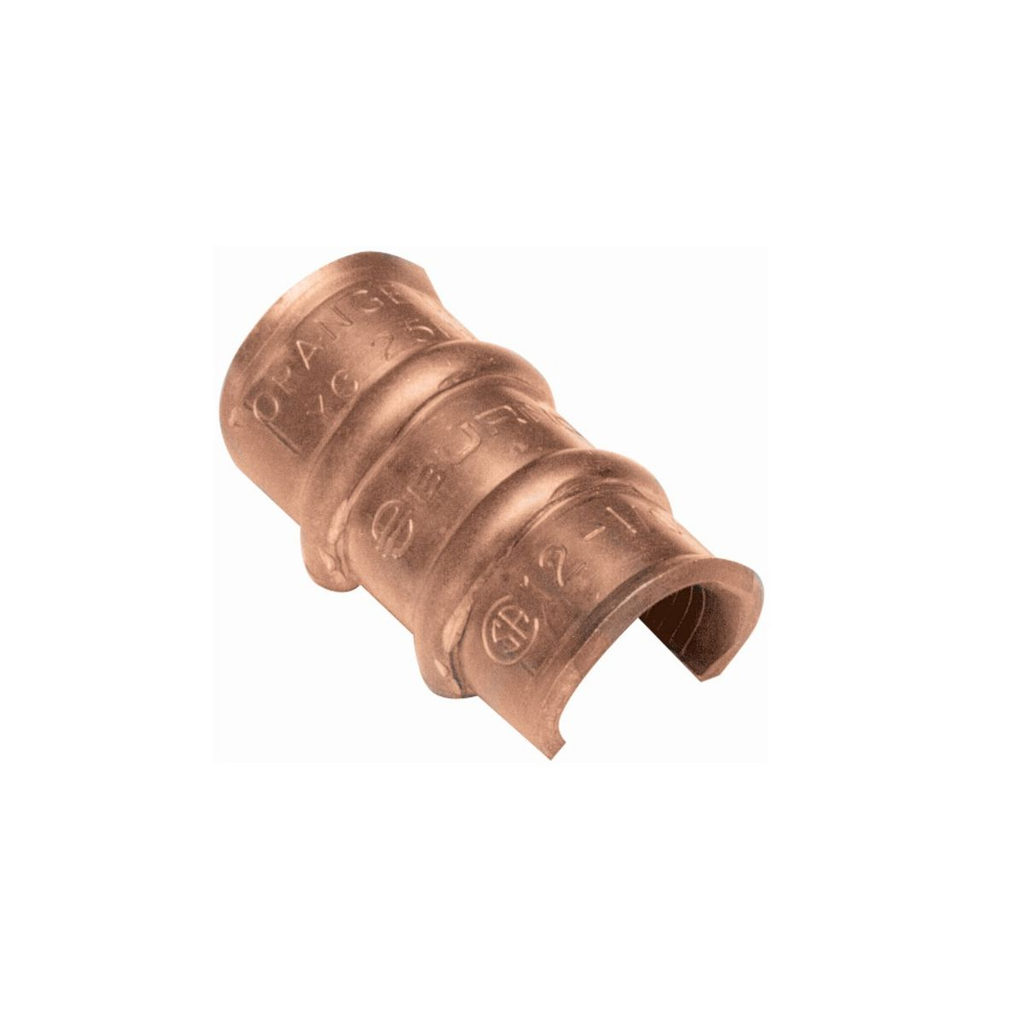

Copper Compression C Tap, Thin Wall, 6 AWG (Run), 6-8 AWG (Tap) – Wire Tap Connector

This copper compression C tap is designed for reliable wire tapping applications, suitable for electrical distributors and switchgear suppliers handling wire and cable connections. It provides a secure and efficient method to tap into existing conductors, supporting wire sizes from 6 AWG (run) to 6-8 AWG (tap). Its tin-plated finish enhances conductivity and corrosion resistance, making it suitable for a range of electrical installations.

Specifications

• Material: Copper
• Conductor Material: Copper
• Connection Type: C-TAP
• Conductor Size: 4 AWG-12 AWG
• Application: Wire Tap
• Max. Voltage: 35000 volts
• Width: 0.39 in
• Product Weight: 0.0300 lbs
• Finish: Tin-Plated
• Color Coding: Brown
• Manufacturer Part #: YC4L12
• Country of Origin: United States
• Made in USA: Yes

Features

• Thin wall design for efficient compression
• Compatible with 6 AWG run conductor and 6-8 AWG tap conductor
• Tin-plated surface for enhanced corrosion resistance
• Manufactured by Burndy, a trusted electrical component supplier
