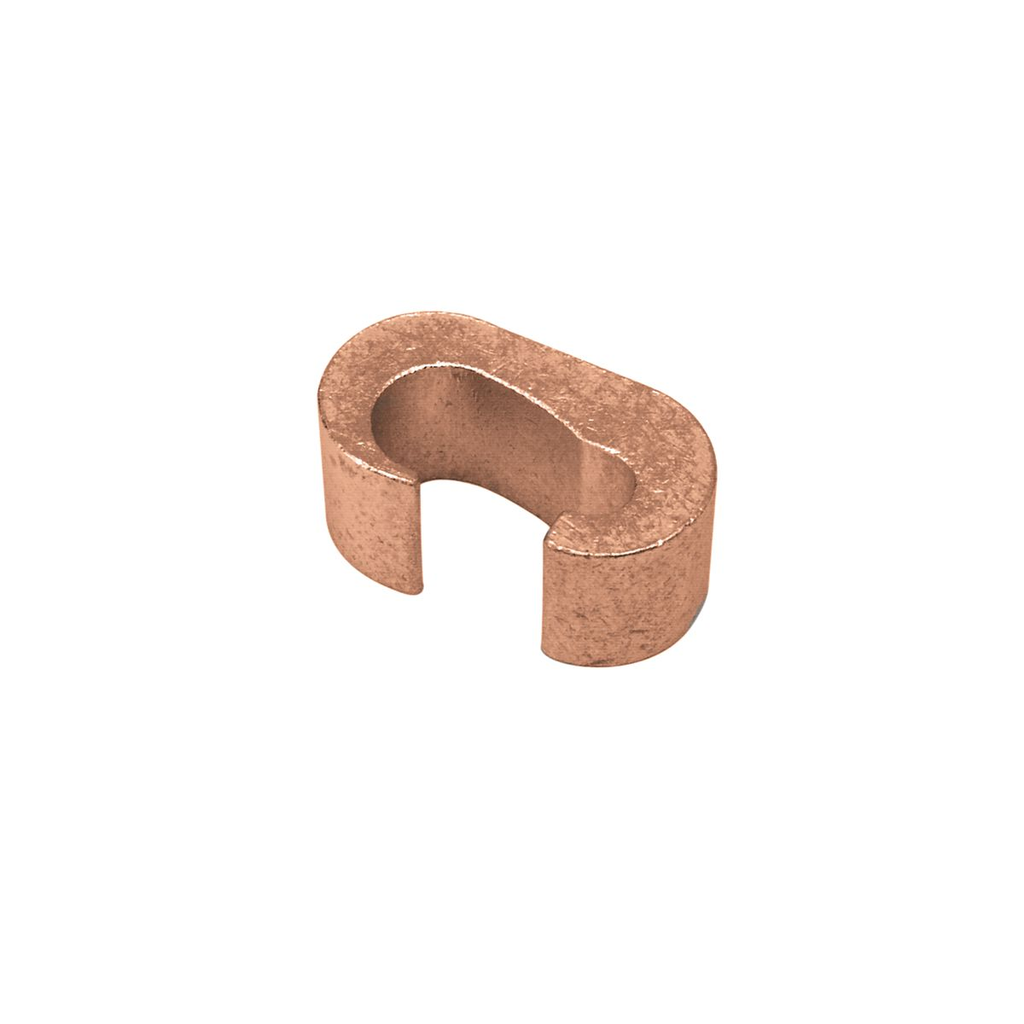

Copper Compression C Tap, 500 kcmil-4/0 AWG (Main), 500 kcmil-4/0 AWG (Tap), Tin Plated
SKU: #332418
Part: #YCHC34TC34
UPC: 781810013724
Copper Compression C Tap, 500 kcmil-4/0 AWG (Main), 500 kcmil-4/0 AWG (Tap), Tin Plated
SKU: #332418
Part: #YCHC34TC34
UPC: 781810013724
Description
Copper Compression C Tap, 500 kcmil-4/0 AWG – Electrical Wire Tap Connector
This Copper Compression C Tap is designed for wire tap applications, providing a reliable and maintenance-free compression connection. It is suitable for use by electrical distributors and lighting solutions providers requiring durable and efficient wire and cable connections. The connector accommodates 500 kcmil to 4/0 AWG conductors for both main and tap wires, making it versatile for various electrical installations. Its tin-plated copper construction ensures excellent conductivity and resistance to galvanic corrosion, ideal for professional switchgear suppliers and electrical contractors.
Specifications
- Application: Wire Tap
- Conductor Size: 500 KCMIL-500 KCMIL
- Material: Copper
- Finish: Tin-Plated
- Connection Type: C-TAP
- Max. Voltage: 35000 volts
- Width: 1.38 in
- Length: 1.00 in
- Height: 2.97 in
- Color Coding: Brown
- Made in USA: Yes
- Manufacturer Part #: YCHC34TC34
- Industry Standard(s): UL 486A-486B
- UL Listed: Yes
- Certification - CSA Approved: Yes
Features
- Range-taking C-Tap accommodates multiple wire combinations, reducing inventory needs
- Manufactured from high conductivity wrought copper for low electrical resistance
- Electro-tin plated to reduce galvanic corrosion and resist corrosive elements
- Clearly marked connectors with color-coded stamping for easy identification
- Compression connections are irreversible and maintenance-free
