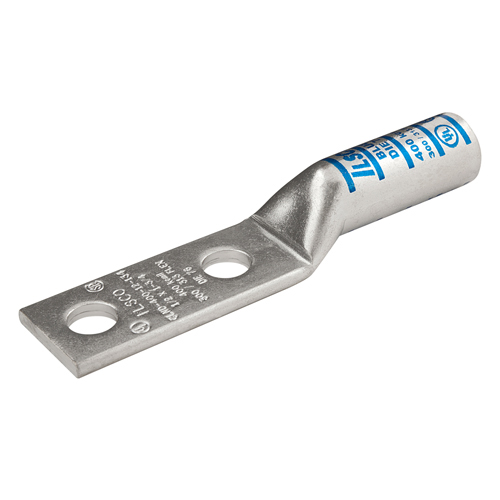

Copper Comp. Lug 2-Hole Long Barrel Conductor 8, 1/4" Bolt – Compression Lug

This Copper Compression Lug by ILSCO is designed for secure electrical connections in wire and cable applications. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable compression connectors for Class B/C copper wire. The lug features a long barrel design for enhanced conductor contact and is compatible with flexible copper conductors size 8. It supports direct burial applications and complies with UL and CSA standards, ensuring safety and durability in lighting solutions and electrical distribution systems.

Specifications

• Manufacturer: ILSCO
• Manufacturer Part #: CLND-8-14-58
• Material: Copper
• Conductor Material: Copper
• Conductor Type: Flex
• Connection Type: Compression
• Barrel Type: Long
• Barrel Length: 0.812 inches
• Number of Mounting Holes: 2
• Mounting Hole Size: 0.281 inches
• Mounting Hole Type: Thru
• Inside Diameter: 0.179 inches
• Outside Diameter: 0.273 inches
• Length: 2.444 inches
• Width: 0.491 inches
• Height: 0.303 inches
• Color: Silver
• Color Coding: Red
• Direct Burial: Yes
• Bolt/Stud Size: 1/4 inch
• Voltage Rating: 35 kV
• Temperature Rating: 90°C
• UL / CULUS Specification: UL 467 Listed
• CSA Standard: C22.2 No. 65-03
• Prop65 Compliance: Yes (no known chemicals)
• Carton Quantity: 50
• UPC: 783669628067

Features

• Tin plated finish for corrosion resistance
• Long barrel design for improved conductor contact
• Two mounting holes for secure bolted connections
• Color-coded red for easy identification
• Suitable for flexible copper conductors size 8 (stranded and solid)
• Approved for direct burial applications
• UL and CSA certified for grounding and bonding
• Compression connection type ensures reliable electrical continuity
• Square tang end shape for consistent installation
