Copper C Tap 6-8 Main
SKU: #303875
Part: #CT-103
UPC: 662381098023
Copper C Tap 6-8 Main
SKU: #303875
Part: #CT-103
UPC: 662381098023
Next day delivery
Description

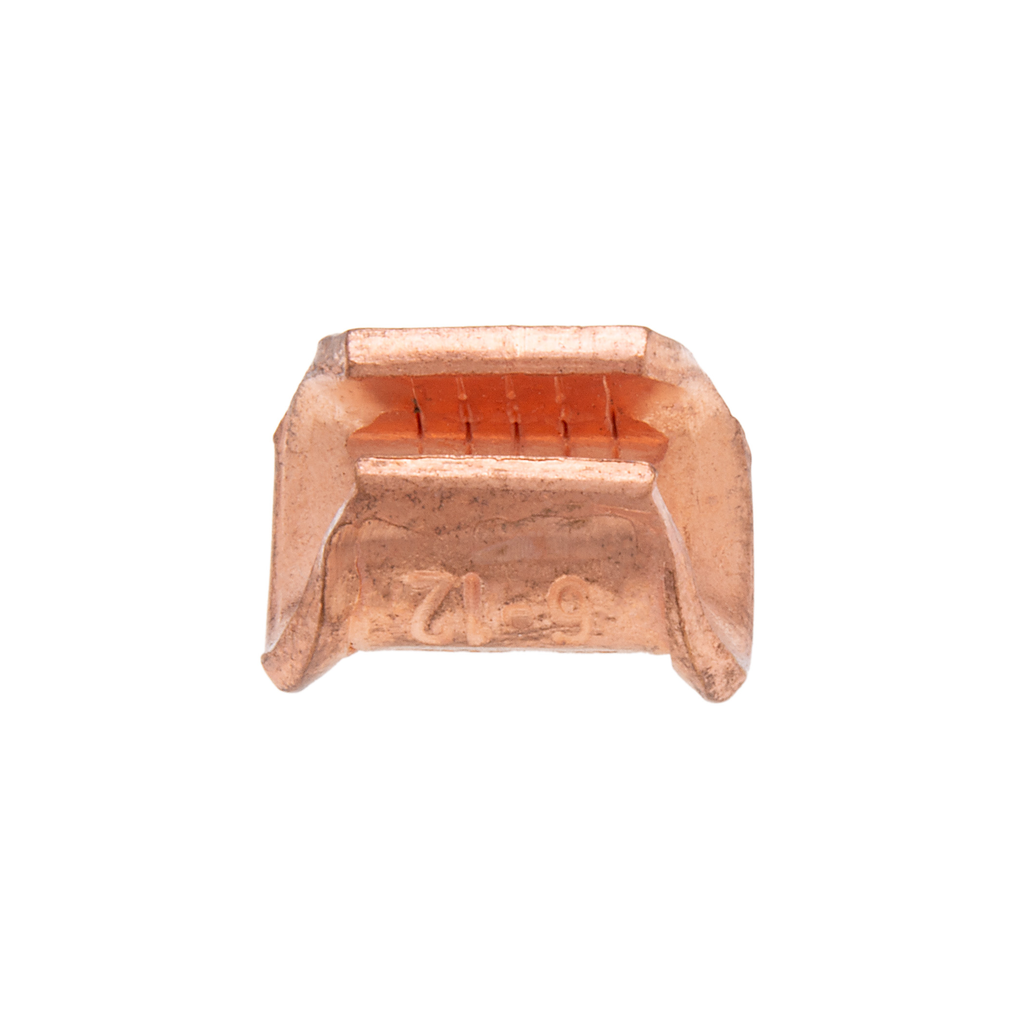

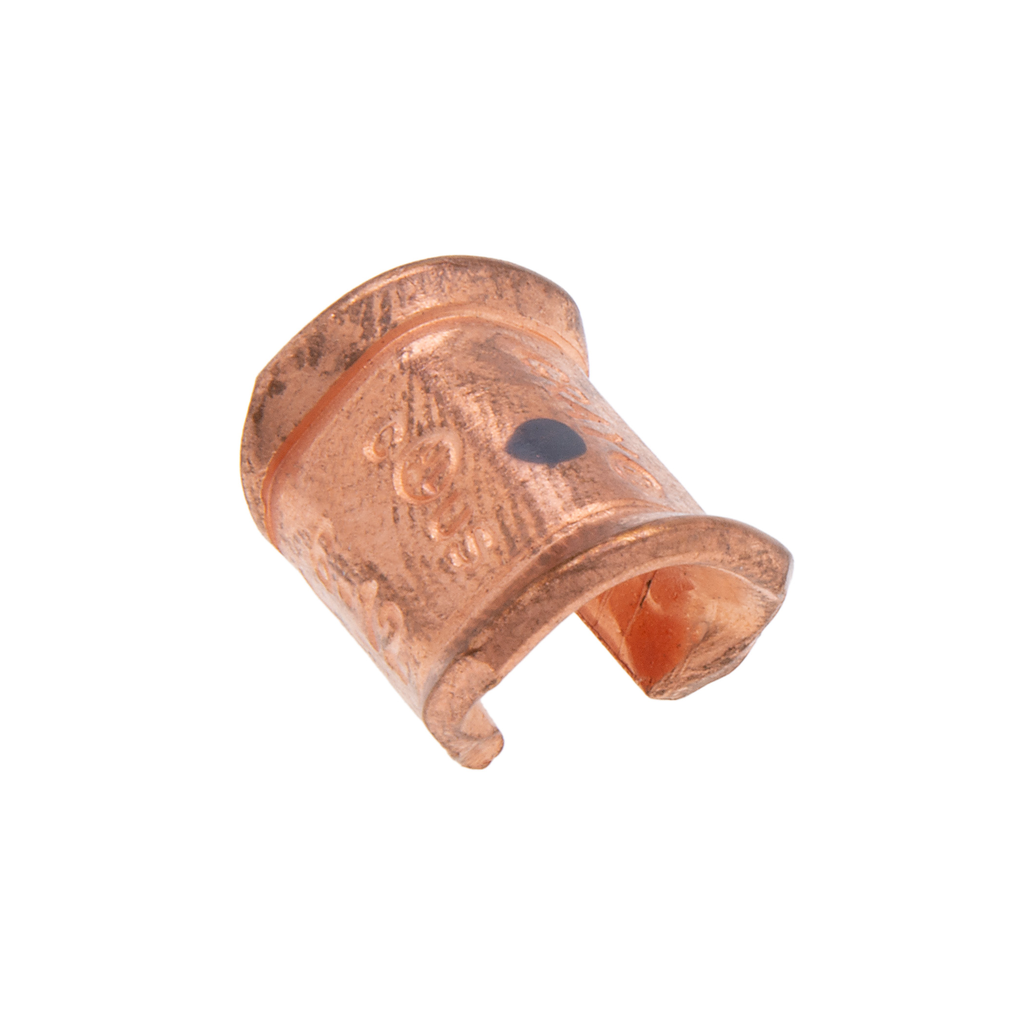

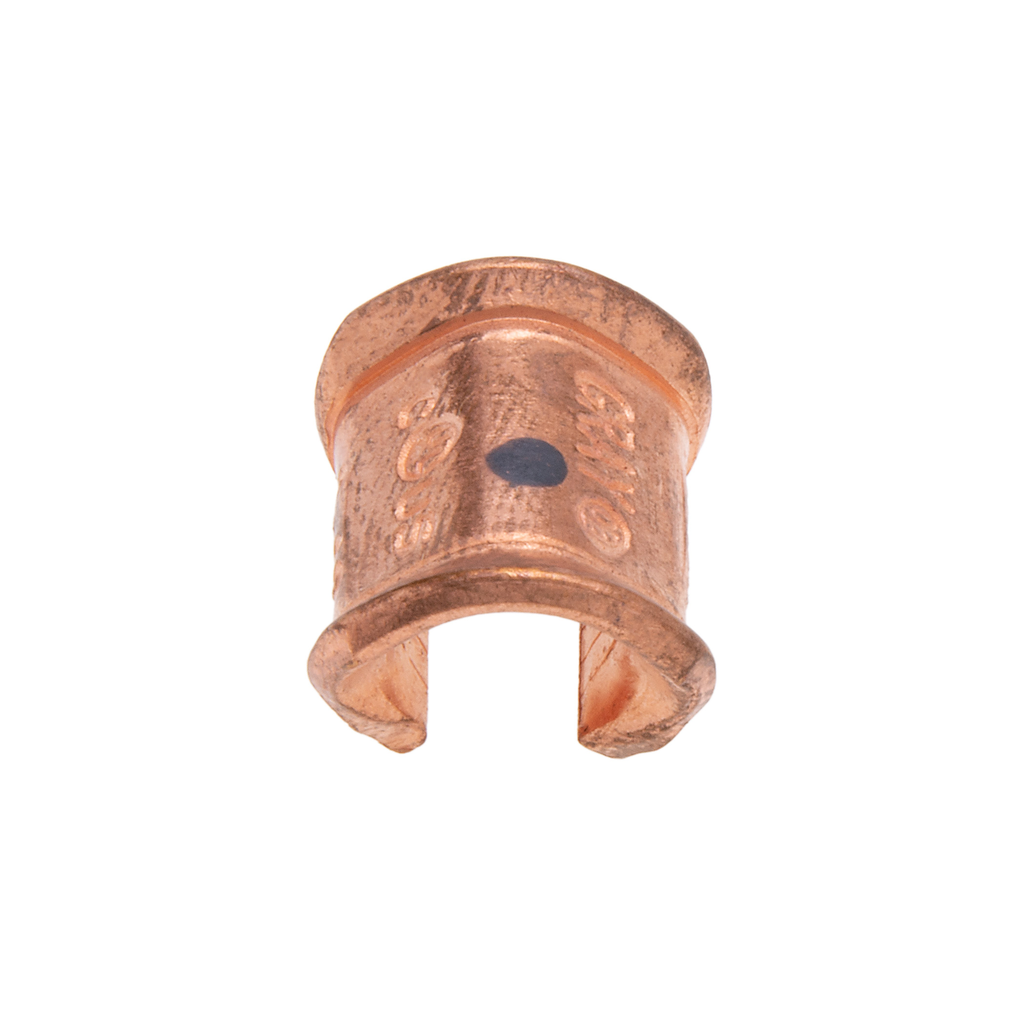

Copper C Tap 6-8 Main – Compression Connector for Electrical Grounding
The Copper C Tap 6-8 Main is a grounding connector designed for terminating, splicing, and tapping power connectors in electrical systems. Manufactured by NSI Industries, this copper compression connector ensures positive, all-around compression with low resistance and high pull-out strength, making it suitable for use in wire and cable applications within electrical distribution and lighting solutions. It complies with NEC250-81 and 250-91 requirements for grounding electrode systems and is rated for 600 volts.
Specifications
- Manufacturer Part #: CT-103
- Material: Copper
- Finish: Copper
- Color: Gray
- Conductor Size: 6 AWG
- Dimensions: Length 15.5 millimeters, Width 11.75 millimeters, Height 0.374 inches
- Product Weight: 1.2 lbs
- Mechanical Durability: Single Use
- Environmental Conditions: Rated for 90°C
- Voltage Rating: 600 Volts
- Country of Origin: India
- UL Listings: UL486A Wire Connector, UL467 Grounding & Bonding
Features
- Ensures positive, all-around compression with low resistance and high pull-out values
- Made of high conductivity copper for reliable grounding connections
- Complies with NEC250-81 and NEC250-91 grounding electrode system requirements
- Rated for 600V applications, suitable for electrical distributor and switchgear supplier environments
